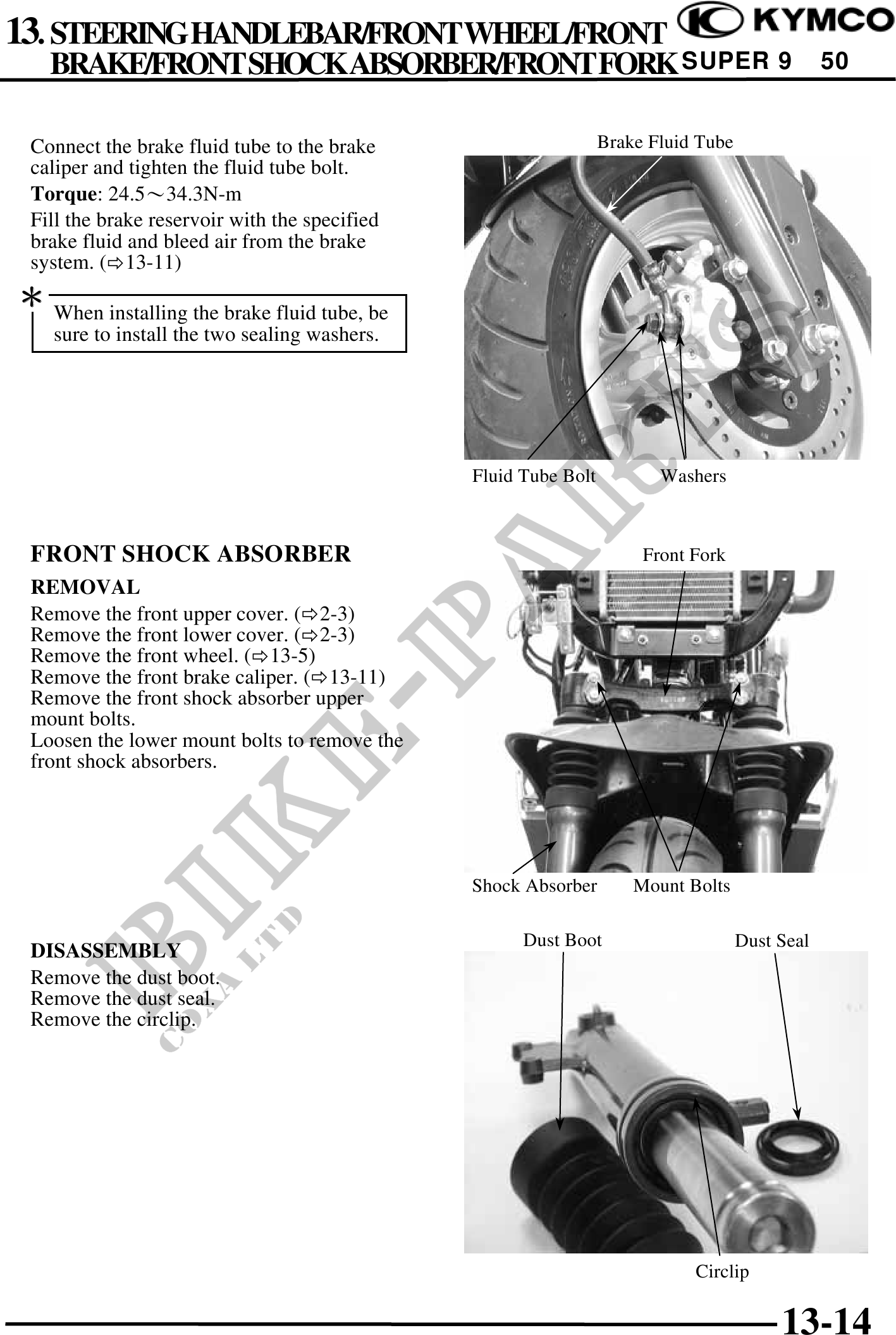

          13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT
   BRAKE/FRONTSHOCKABSORBER/FRONTFORK SUPER 9                                                   50


 Connect the brake fluid tube to the brake                       Brake Fluid Tube
 caliper and tighten the fluid tube bolt.
 Torque: 24.534.3N-m
 Fill the brake reservoir with the specified
 brake fluid and bleed air from the brake
 system. ( 13-11)
 When installing the brake fluid tube, be
    sure to install the two sealing washers.




                                               Fluid Tube Bolt          Washers



 FRONT SHOCK ABSORBER                                                 Front Fork
 REMOVAL
 Remove the front upper cover. ( 2-3)
 Remove the front lower cover. ( 2-3)
 Remove the front wheel. ( 13-5)
 Remove the front brake caliper. ( 13-11)
 Remove the front shock absorber upper
 mount bolts.
 Loosen the lower mount bolts to remove the
 front shock absorbers.




                                               Shock Absorber        Mount Bolts

                                                     Dust Boot                      Dust Seal
 DISASSEMBLY
 Remove the dust boot.
 Remove the dust seal.
 Remove the circlip.




                                                                            Circlip
