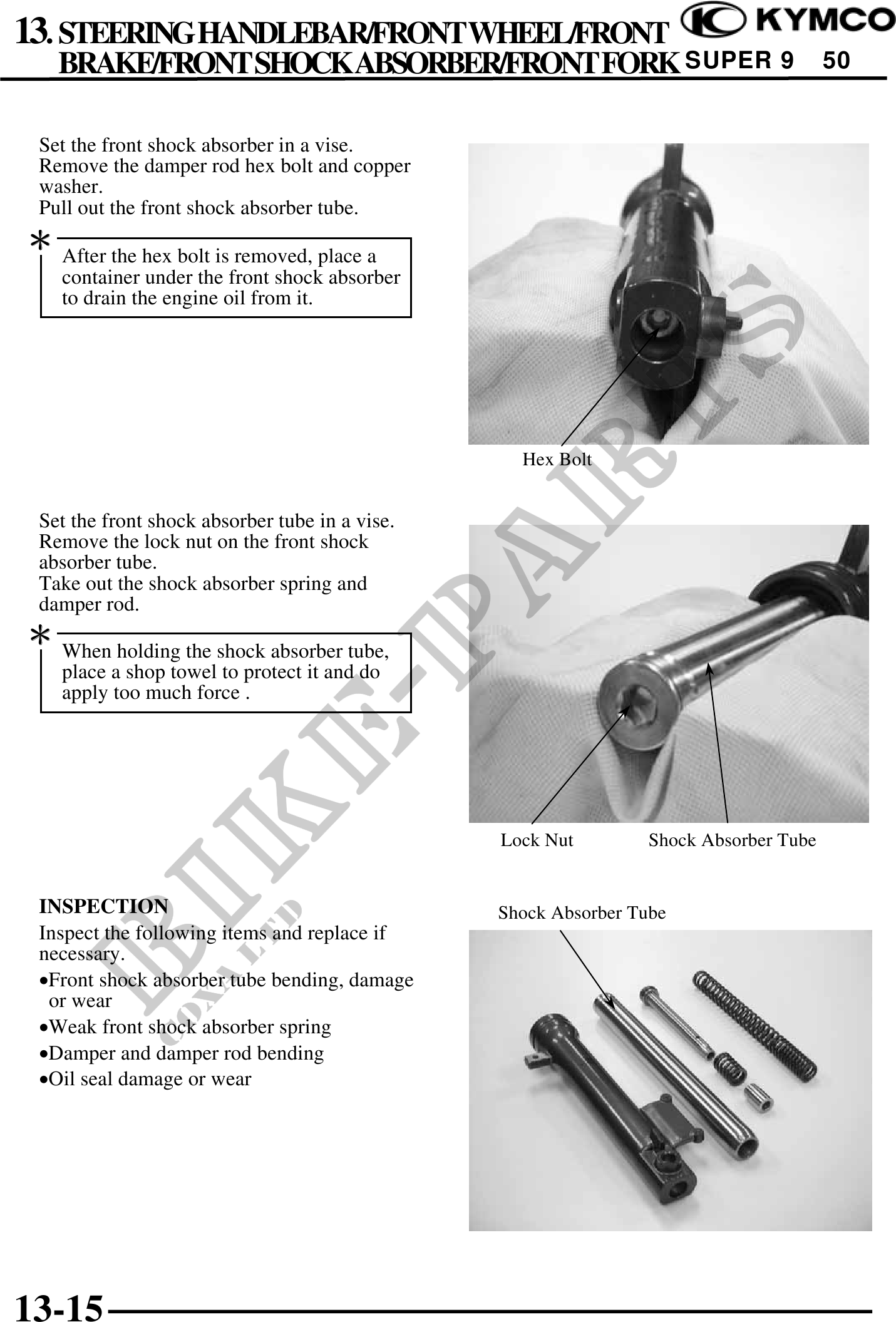

13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT
BRAKE/FRONTSHOCKABSORBER/FRONTFORK SUPER 9 50
Set the front shock absorber in a vise.
Remove the damper rod hex bolt and copper
washer.
Pull out the front shock absorber tube.
After the hex bolt is removed, place a
container under the front shock absorber
to drain the engine oil from it.
Hex Bolt
Set the front shock absorber tube in a vise.
Remove the lock nut on the front shock
absorber tube.
Take out the shock absorber spring and
damper rod.
When holding the shock absorber tube,
place a shop towel to protect it and do
apply too much force .
Lock Nut Shock Absorber Tube
INSPECTION Shock Absorber Tube
Inspect the following items and replace if
necessary.
·Front shock absorber tube bending, damage
or wear
·Weak front shock absorber spring
·Damper and damper rod bending
·Oil seal damage or wear
13-15
