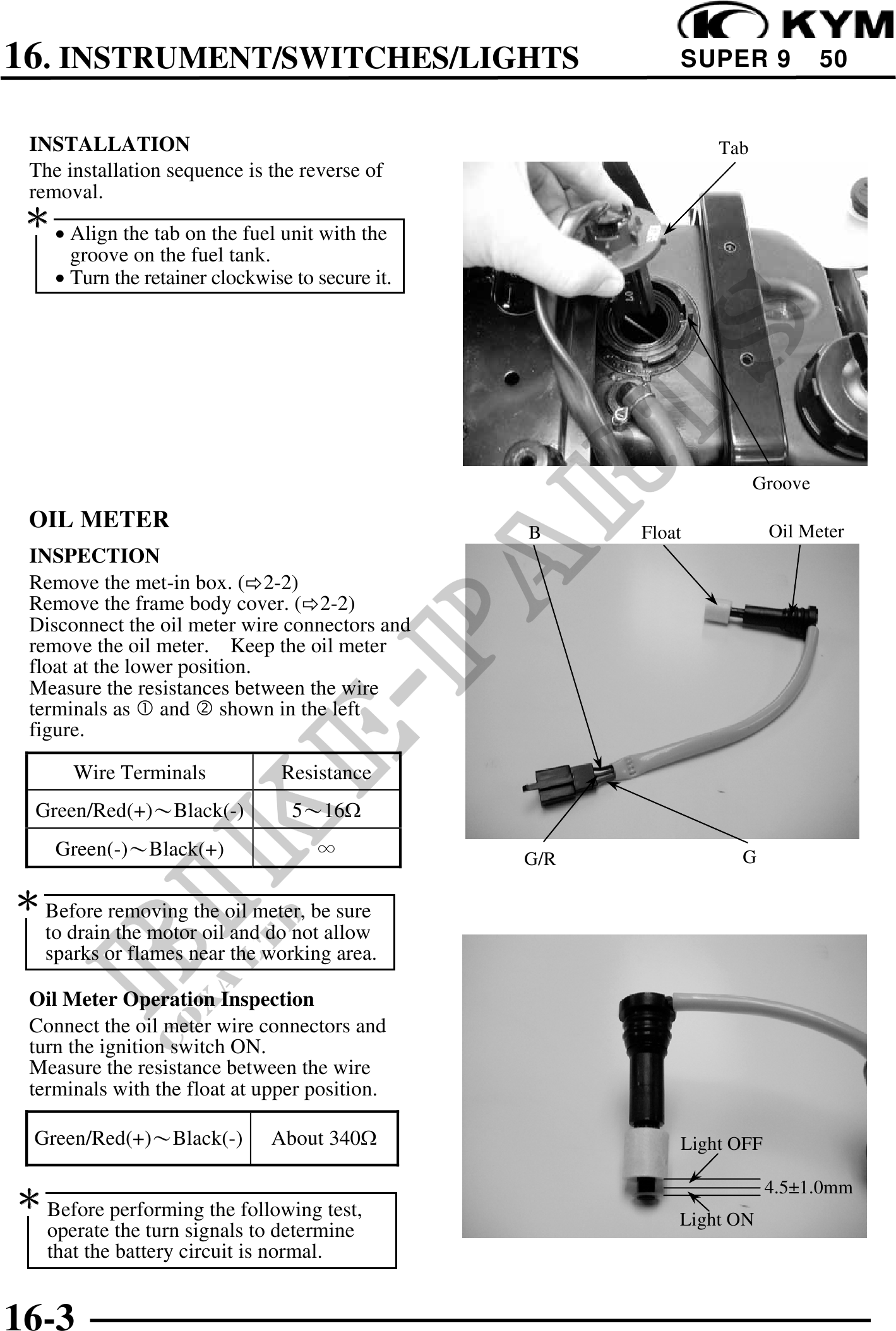

16. INSTRUMENT/SWITCHES/LIGHTS SUPER 9 50 INSTALLATION Tab The installation sequence is the reverse of removal. · Align the tab on the fuel unit with the groove on the fuel tank. · Turn the retainer clockwise to secure it. Groove OIL METER B Float Oil Meter INSPECTION Remove the met-in box. ( 2-2) Remove the frame body cover. ( 2-2) Disconnect the oil meter wire connectors and remove the oil meter. Keep the oil meter float at the lower position. Measure the resistances between the wire terminals as and shown in the left figure. Wire Terminals Resistance Green/Red(+)Black(-) 516 Green(-)Black(+) G/R G Before removing the oil meter, be sure to drain the motor oil and do not allow sparks or flames near the working area. Oil Meter Operation Inspection Connect the oil meter wire connectors and turn the ignition switch ON. Measure the resistance between the wire terminals with the float at upper position. Green/Red(+)Black(-) About 340 Light OFF 4.51.0mm Before performing the following test, Light ON operate the turn signals to determine that the battery circuit is normal. 16-3
