          15. ELECTRICAL EQUIPMENT                                              SUPER 9         50


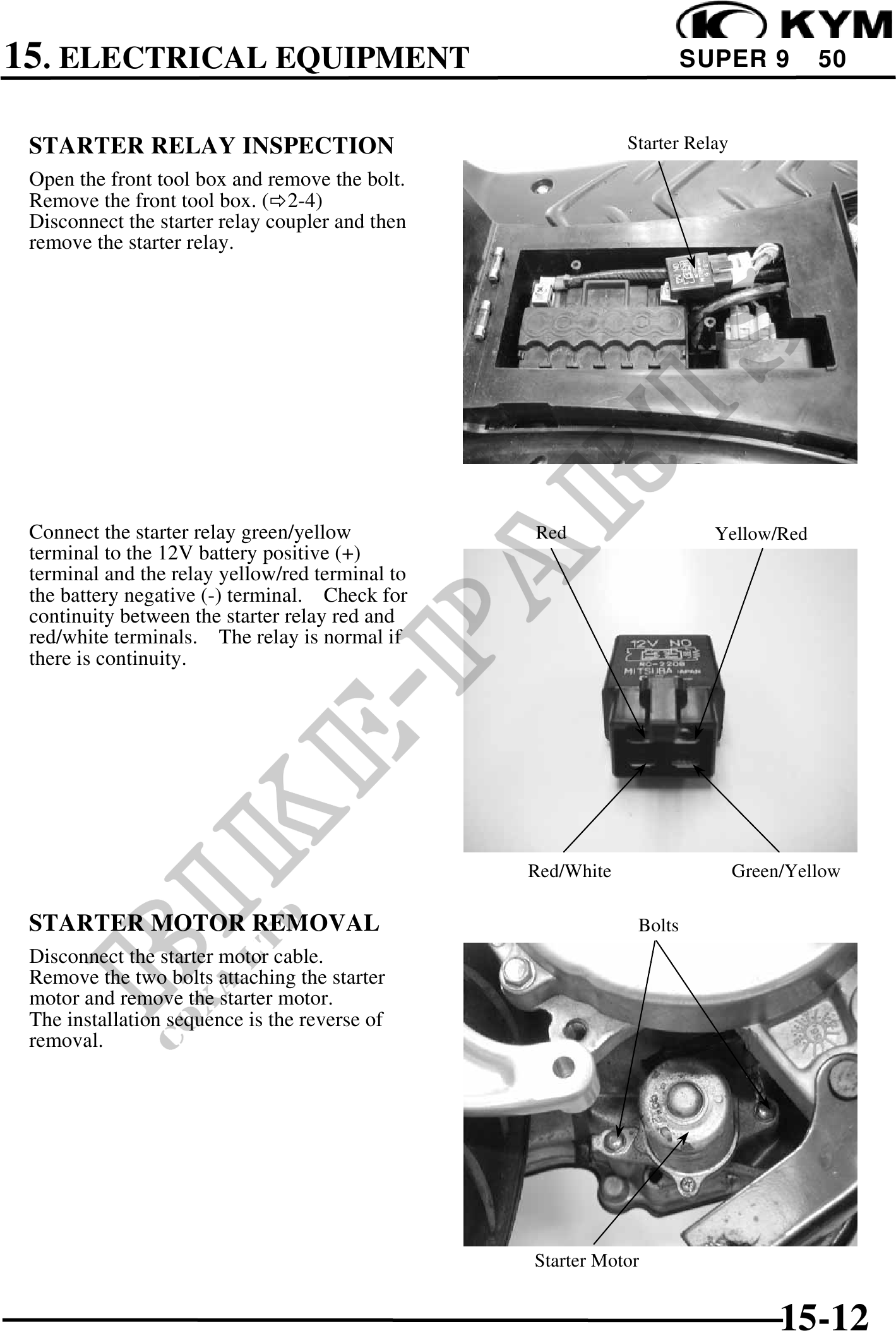

 STARTER RELAY INSPECTION                                    Starter Relay
 Open the front tool box and remove the bolt.
 Remove the front tool box. ( 2-4)
 Disconnect the starter relay coupler and then
 remove the starter relay.




 Connect the starter relay green/yellow          Red                    Yellow/Red
 terminal to the 12V battery positive (+)
 terminal and the relay yellow/red terminal to
 the battery negative (-) terminal. Check for
 continuity between the starter relay red and
 red/white terminals. The relay is normal if
 there is continuity.




                                                 Red/White                   Green/Yellow

 STARTER MOTOR REMOVAL                                        Bolts
 Disconnect the starter motor cable.
 Remove the two bolts attaching the starter
 motor and remove the starter motor.
 The installation sequence is the reverse of
 removal.




                                                 Starter Motor
