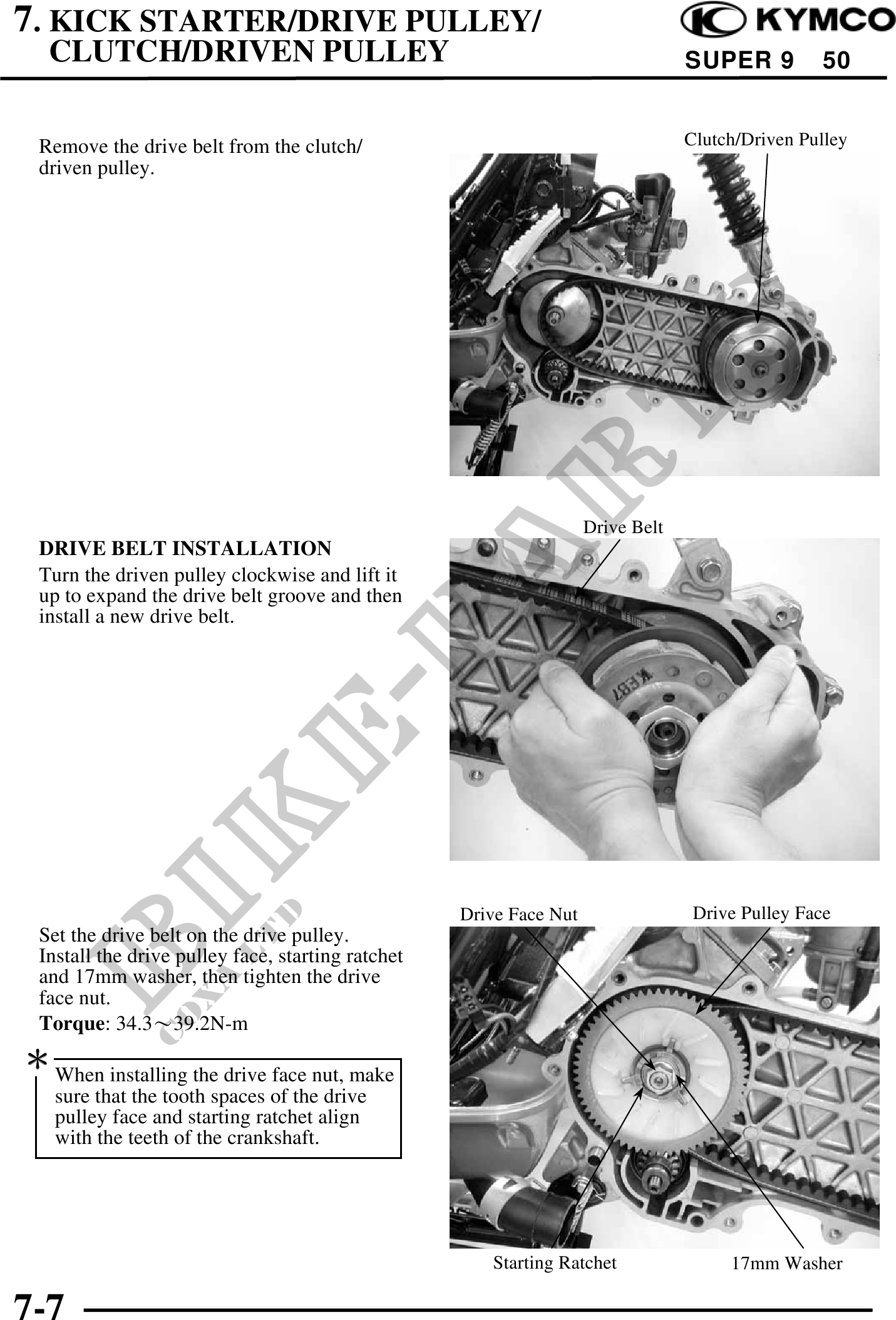

          7. KICK STARTER/DRIVE PULLEY/
  CLUTCH/DRIVEN PULLEY                                                           SUPER 9          50


 Remove the drive belt from the clutch/                                          Clutch/Driven Pulley
 driven pulley.




                                                                    Drive Belt
 DRIVE BELT INSTALLATION
 Turn the driven pulley clockwise and lift it
 up to expand the drive belt groove and then
 install a new drive belt.




                                                   Drive Face Nut                 Drive Pulley Face
 Set the drive belt on the drive pulley.
 Install the drive pulley face, starting ratchet
 and 17mm washer, then tighten the drive
 face nut.
 Torque: 34.339.2N-m
 When installing the drive face nut, make
   sure that the tooth spaces of the drive
   pulley face and starting ratchet align
   with the teeth of the crankshaft.




                                                      Starting Ratchet                17mm Washer

7-7
