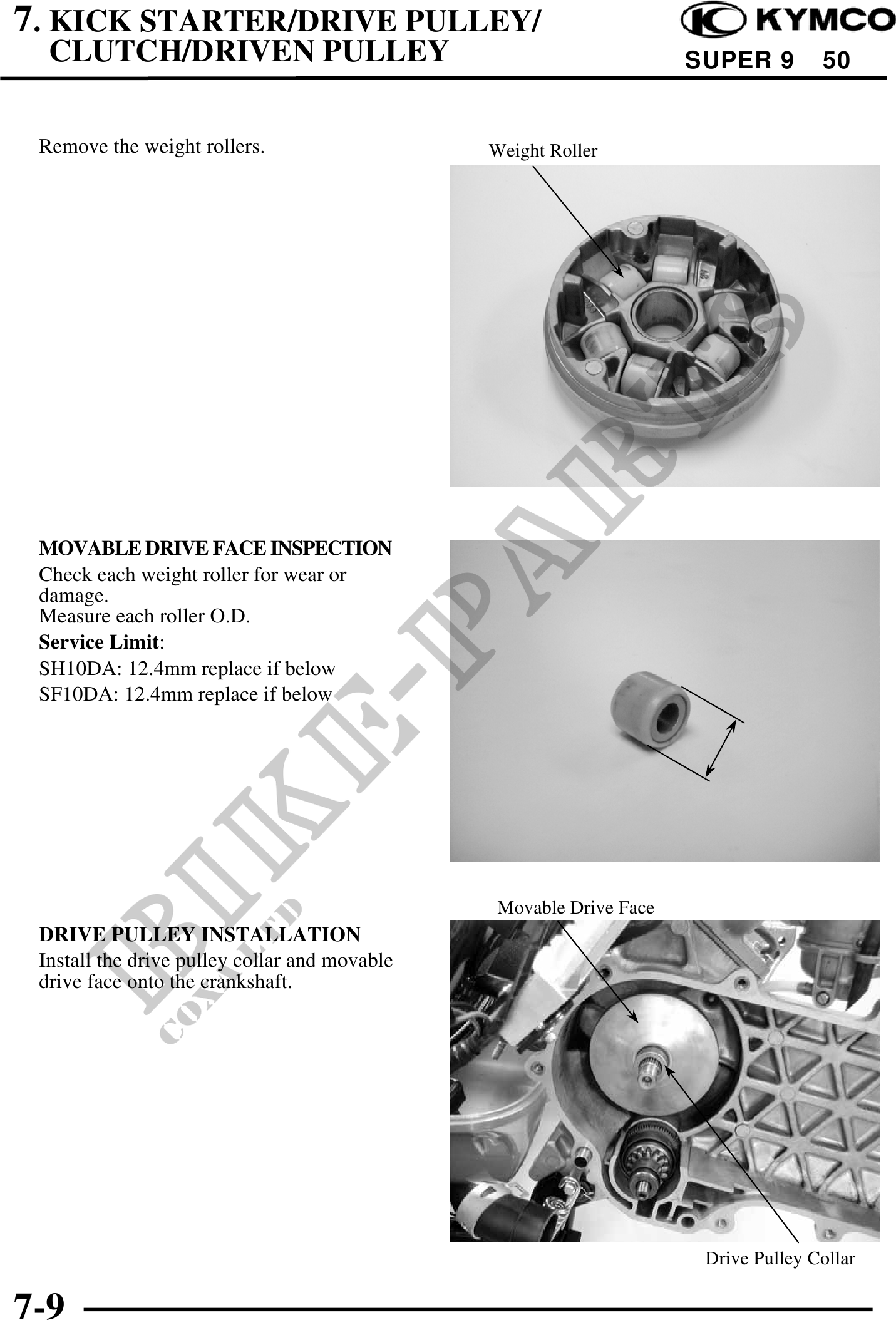

          7. KICK STARTER/DRIVE PULLEY/
  CLUTCH/DRIVEN PULLEY                                               SUPER 9        50


 Remove the weight rollers.                    Weight Roller




 MOVABLE DRIVE FACE INSPECTION
 Check each weight roller for wear or
 damage.
 Measure each roller O.D.
 Service Limit:
 SH10DA: 12.4mm replace if below
 SF10DA: 12.4mm replace if below




                                                Movable Drive Face
 DRIVE PULLEY INSTALLATION
 Install the drive pulley collar and movable
 drive face onto the crankshaft.




                                                                      Drive Pulley Collar

7-9
