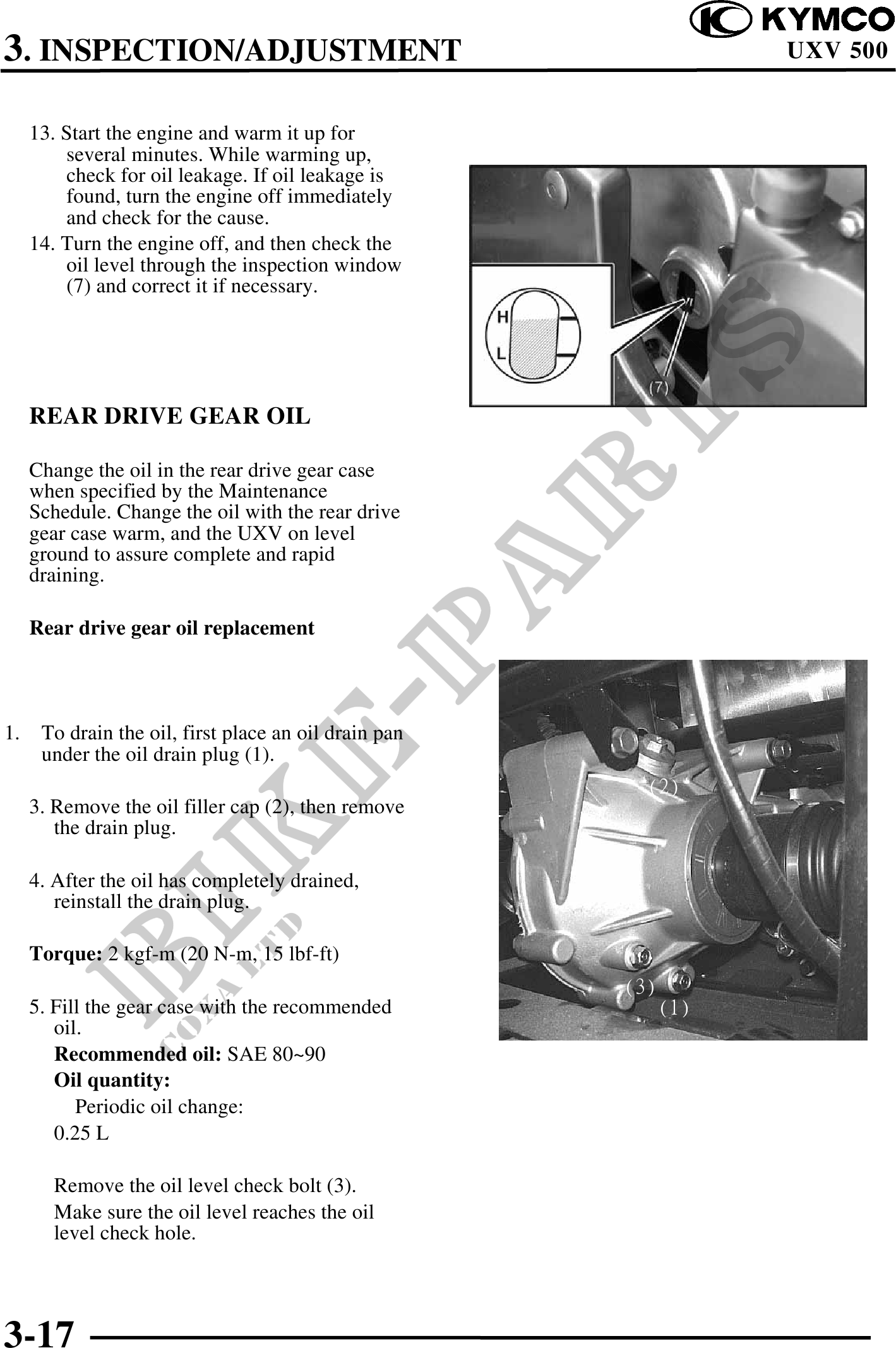

3. INSPECTION/ADJUSTMENT UXV 500
13. Start the engine and warm it up for
several minutes. While warming up,
check for oil leakage. If oil leakage is
found, turn the engine off immediately
and check for the cause.
14. Turn the engine off, and then check the
oil level through the inspection window
(7) and correct it if necessary.
REAR DRIVE GEAR OIL
Change the oil in the rear drive gear case
when specified by the Maintenance
Schedule. Change the oil with the rear drive
gear case warm, and the UXV on level
ground to assure complete and rapid
draining.
Rear drive gear oil replacement
1. To drain the oil, first place an oil drain pan
under the oil drain plug (1).
(2)
3. Remove the oil filler cap (2), then remove
the drain plug.
4. After the oil has completely drained,
reinstall the drain plug.
Torque: 2 kgf-m (20 N-m, 15 lbf-ft)
(3)
5. Fill the gear case with the recommended (1)
oil.
Recommended oil: SAE 80~90
Oil quantity:
Periodic oil change:
0.25 L
Remove the oil level check bolt (3).
Make sure the oil level reaches the oil
level check hole.
3-17
