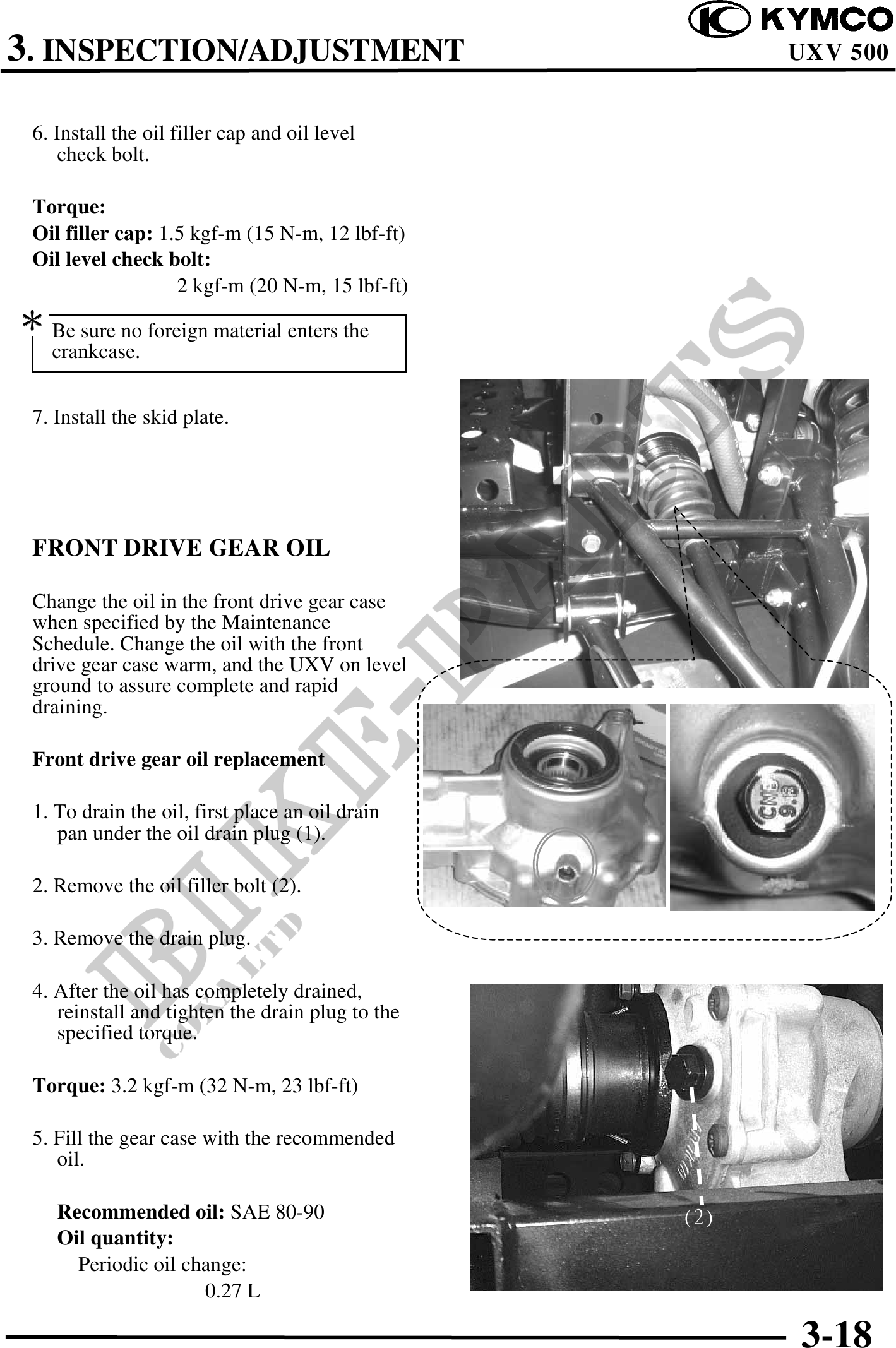

3. INSPECTION/ADJUSTMENT UXV 500
6. Install the oil filler cap and oil level
check bolt.
Torque:
Oil filler cap: 1.5 kgf-m (15 N-m, 12 lbf-ft)
Oil level check bolt:
2 kgf-m (20 N-m, 15 lbf-ft)
Be sure no foreign material enters the
crankcase.
7. Install the skid plate.
FRONT DRIVE GEAR OIL
Change the oil in the front drive gear case
when specified by the Maintenance
Schedule. Change the oil with the front
drive gear case warm, and the UXV on level
ground to assure complete and rapid
draining.
Front drive gear oil replacement
1. To drain the oil, first place an oil drain
pan under the oil drain plug (1).
2. Remove the oil filler bolt (2).
3. Remove the drain plug.
4. After the oil has completely drained,
reinstall and tighten the drain plug to the
specified torque.
Torque: 3.2 kgf-m (32 N-m, 23 lbf-ft)
5. Fill the gear case with the recommended
oil.
Recommended oil: SAE 80-90 (2)
Oil quantity:
Periodic oil change:
0.27 L
3-18
