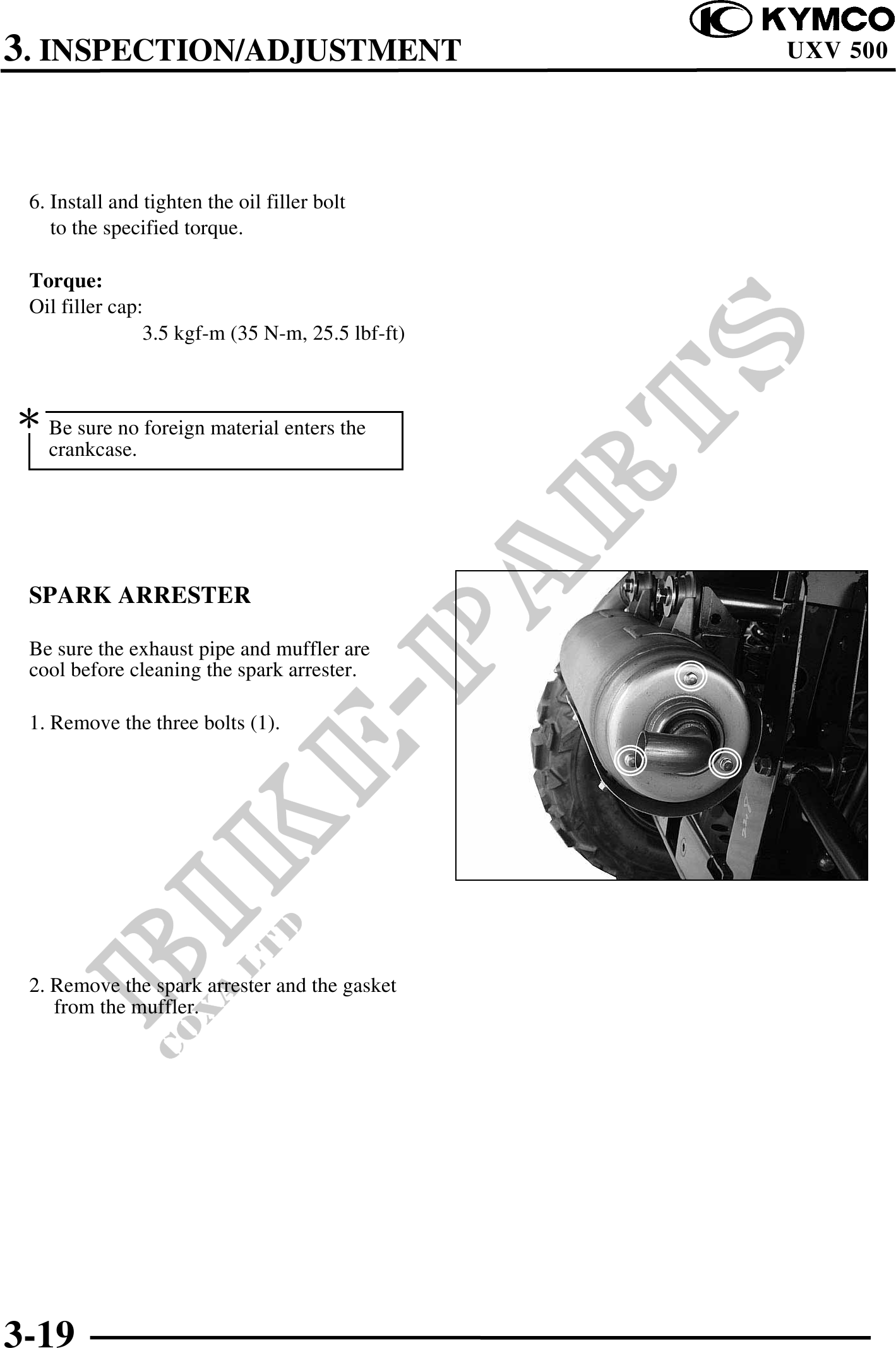

3. INSPECTION/ADJUSTMENT UXV 500
. Remove the oil level check bolt (3). Make
sure the oil level reaches the oil level
check hole.
6. Install and tighten the oil filler bolt
to the specified torque.
Torque:
Oil filler cap:
3.5 kgf-m (35 N-m, 25.5 lbf-ft)
Oil level check bolt:
1 kgf-m (10 N-m, 7.2 lbf-ft)
Be sure no foreign material enters the
crankcase.
SPARK ARRESTER
Be sure the exhaust pipe and muffler are
cool before cleaning the spark arrester.
1. Remove the three bolts (1).
2. Remove the spark arrester and the gasket
from the muffler.
3-19
