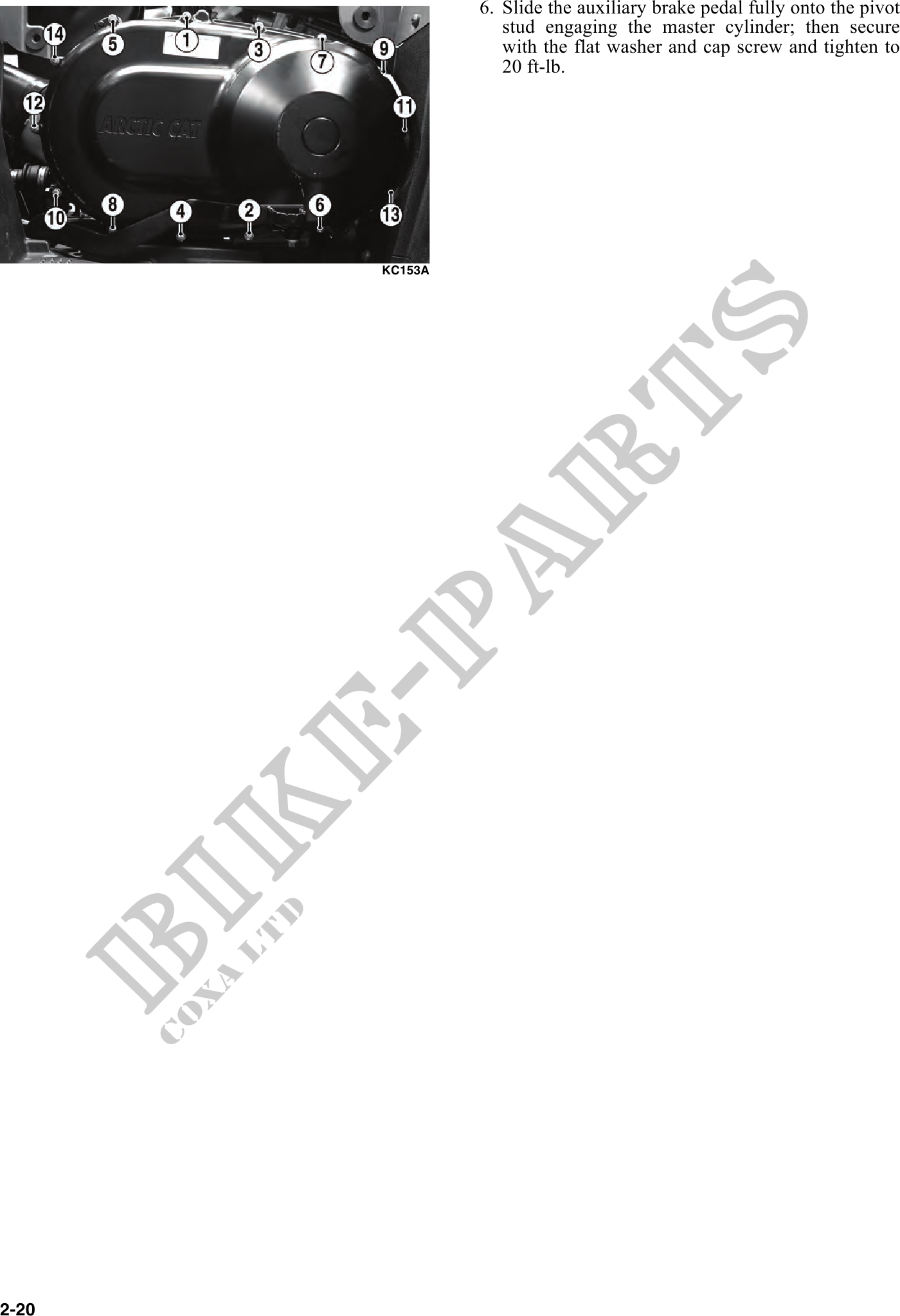

                          6. Slide the auxiliary brake pedal fully onto the pivot
                   stud engaging the master cylinder; then secure
                   with the flat washer and cap screw and tighten to
                   20 ft-lb.
