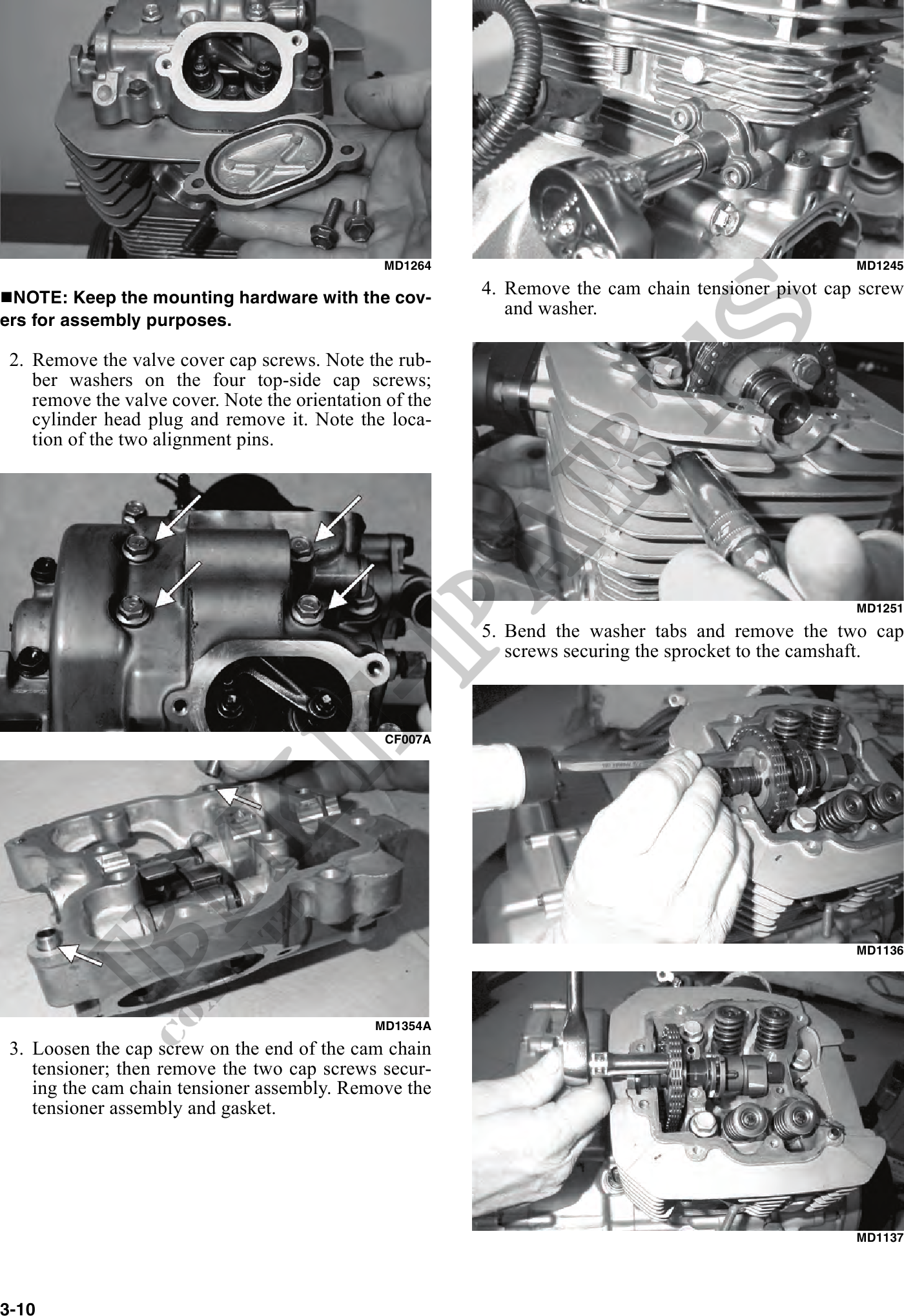

MD1264 MD1245
NOTE: Keep the mounting hardware with the cov- 4. Remove the cam chain tensioner pivot cap screw
and washer.
ers for assembly purposes.
2. Remove the valve cover cap screws. Note the rub-
ber washers on the four top-side cap screws;
remove the valve cover. Note the orientation of the
cylinder head plug and remove it. Note the loca-
tion of the two alignment pins.
MD1251
5. Bend the washer tabs and remove the two cap
screws securing the sprocket to the camshaft.
CF007A
MD1136
MD1354A
3. Loosen the cap screw on the end of the cam chain
tensioner; then remove the two cap screws secur-
ing the cam chain tensioner assembly. Remove the
tensioner assembly and gasket.
MD1137
3-10
