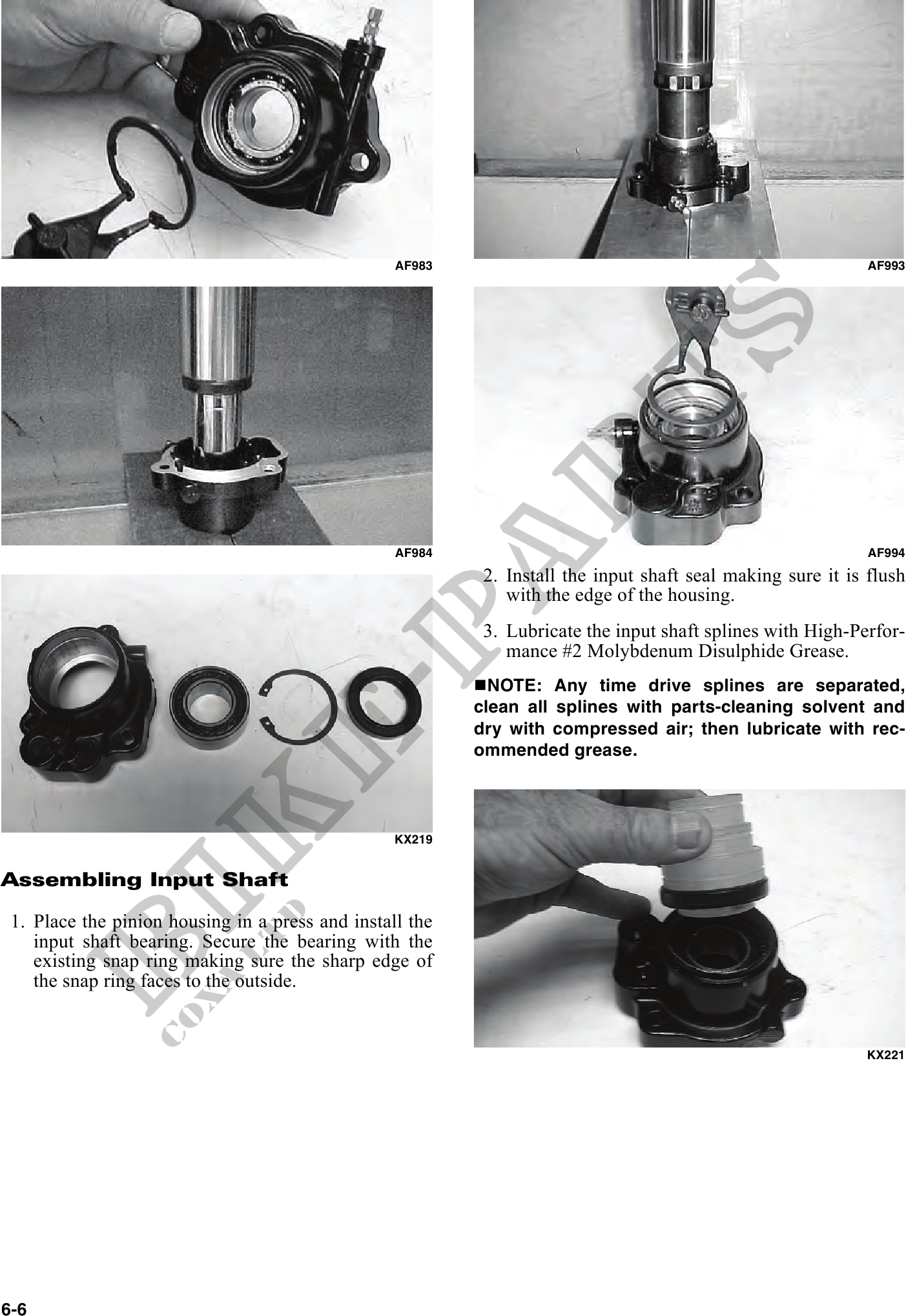

AF983 AF993
AF984 AF994
2. Install the input shaft seal making sure it is flush
with the edge of the housing.
3. Lubricate the input shaft splines with High-Perfor-
mance #2 Molybdenum Disulphide Grease.
NOTE: Any time drive splines are separated,
clean all splines with parts-cleaning solvent and
dry with compressed air; then lubricate with rec-
ommended grease.
KX219
Assembling Input Shaft
1. Place the pinion housing in a press and install the
input shaft bearing. Secure the bearing with the
existing snap ring making sure the sharp edge of
the snap ring faces to the outside.
KX221
6-6
