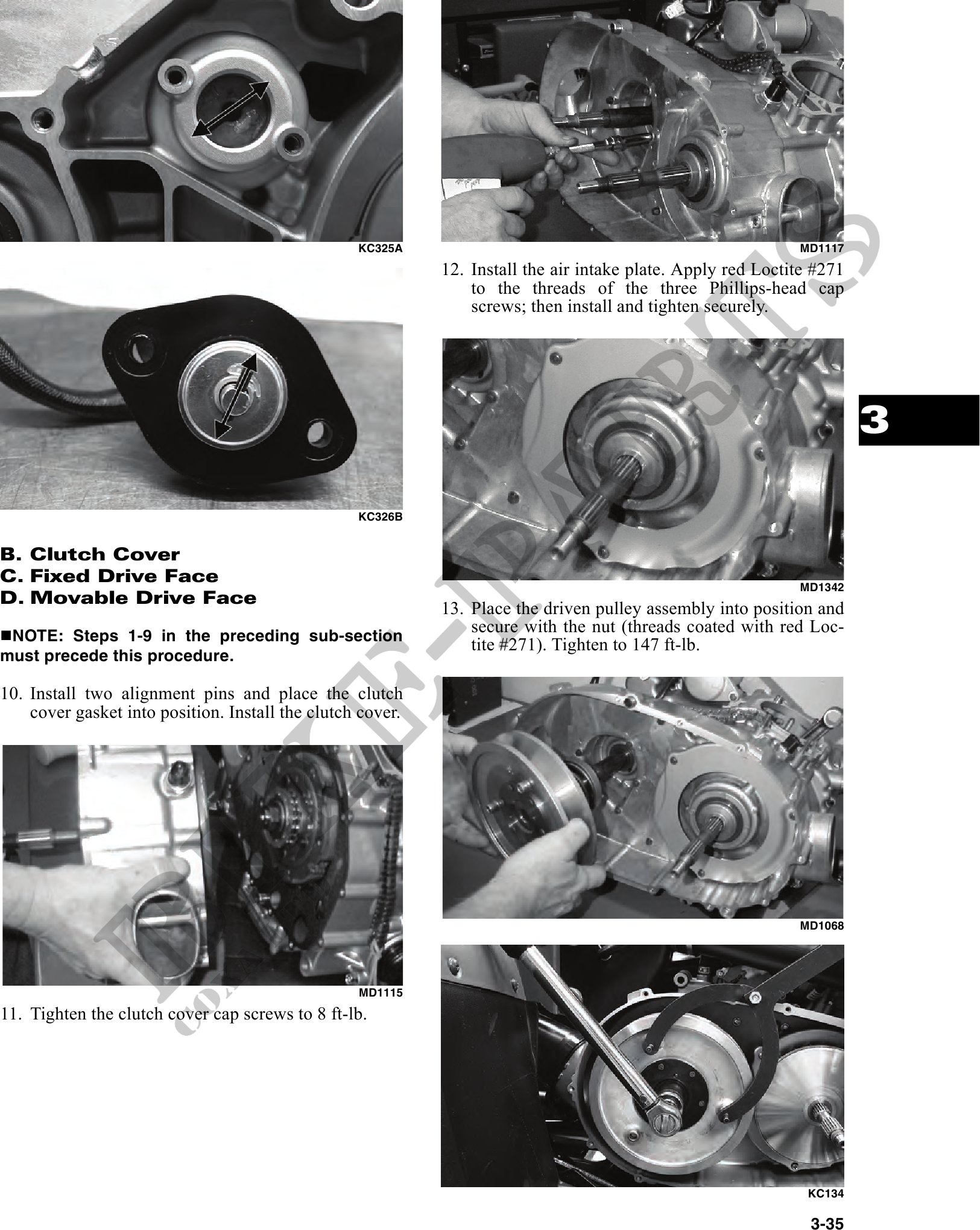

mxu 400 Workshop-manual : Page 65

                                                            KC325A                                                     MD1117
                                                            12. Install the air intake plate. Apply red Loctite #271
                                                                to the threads of the three Phillips-head cap
                                                                screws; then install and tighten securely.




                                                                                                                       3

                                                  KC326B


B. Clutch Cover
C. Fixed Drive Face                                                                                          MD1342
D. Movable Drive Face
                                                            13. Place the driven pulley assembly into position and
 NOTE: Steps 1-9 in the preceding sub-section
                                                                secure with the nut (threads coated with red Loc-
                                                                tite #271). Tighten to 147 ft-lb.
must precede this procedure.

10. Install two alignment pins and place the clutch
    cover gasket into position. Install the clutch cover.




                                                                                                             MD1068




                                                  MD1115
11. Tighten the clutch cover cap screws to 8 ft-lb.




                                                                                                              KC134

                                                                                                               3-35
