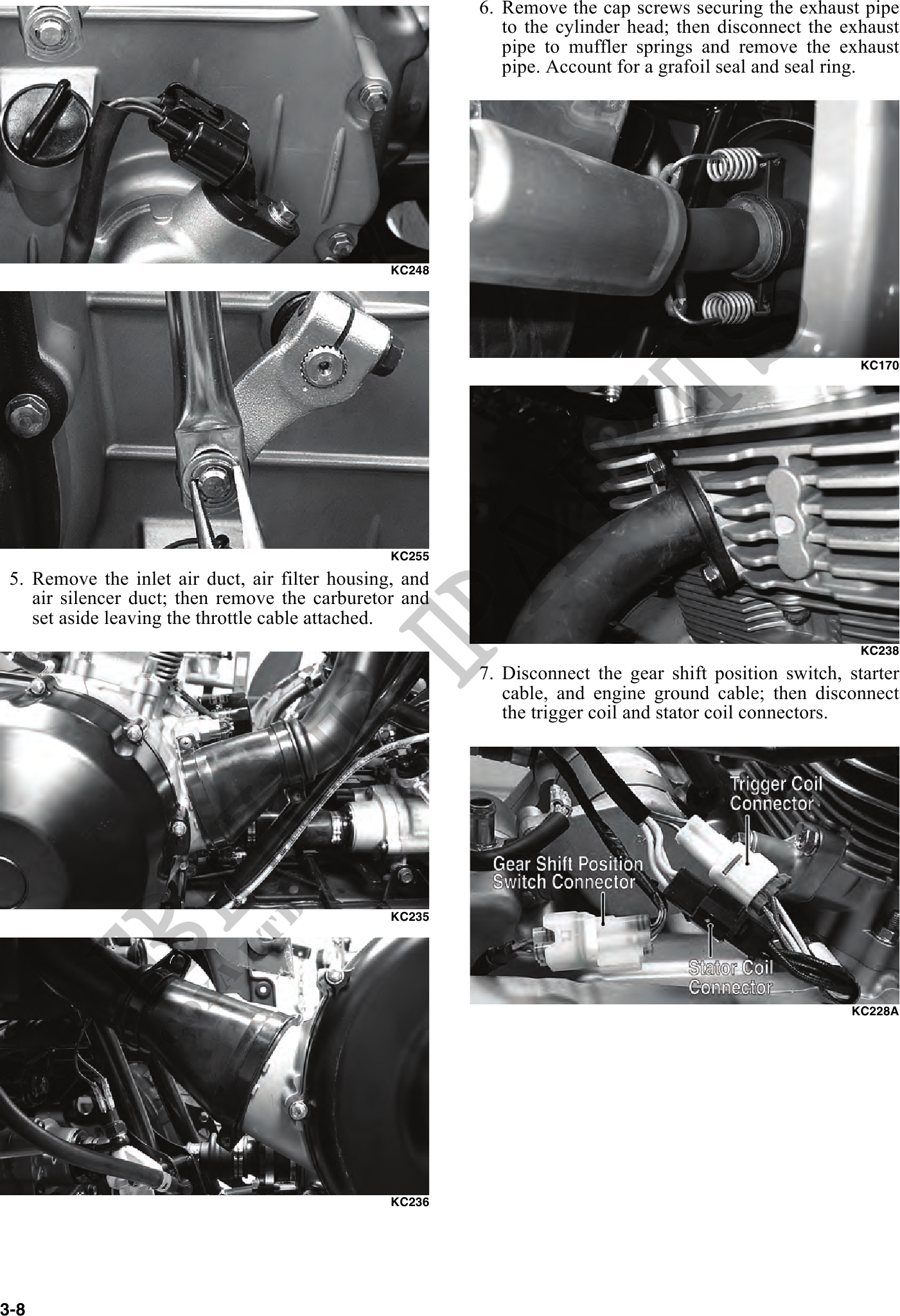

6. Remove the cap screws securing the exhaust pipe
to the cylinder head; then disconnect the exhaust
pipe to muffler springs and remove the exhaust
pipe. Account for a grafoil seal and seal ring.
KC248
KC170
KC255
5. Remove the inlet air duct, air filter housing, and
air silencer duct; then remove the carburetor and
set aside leaving the throttle cable attached.
KC238
7. Disconnect the gear shift position switch, starter
cable, and engine ground cable; then disconnect
the trigger coil and stator coil connectors.
KC235
KC228A
KC236
3-8
