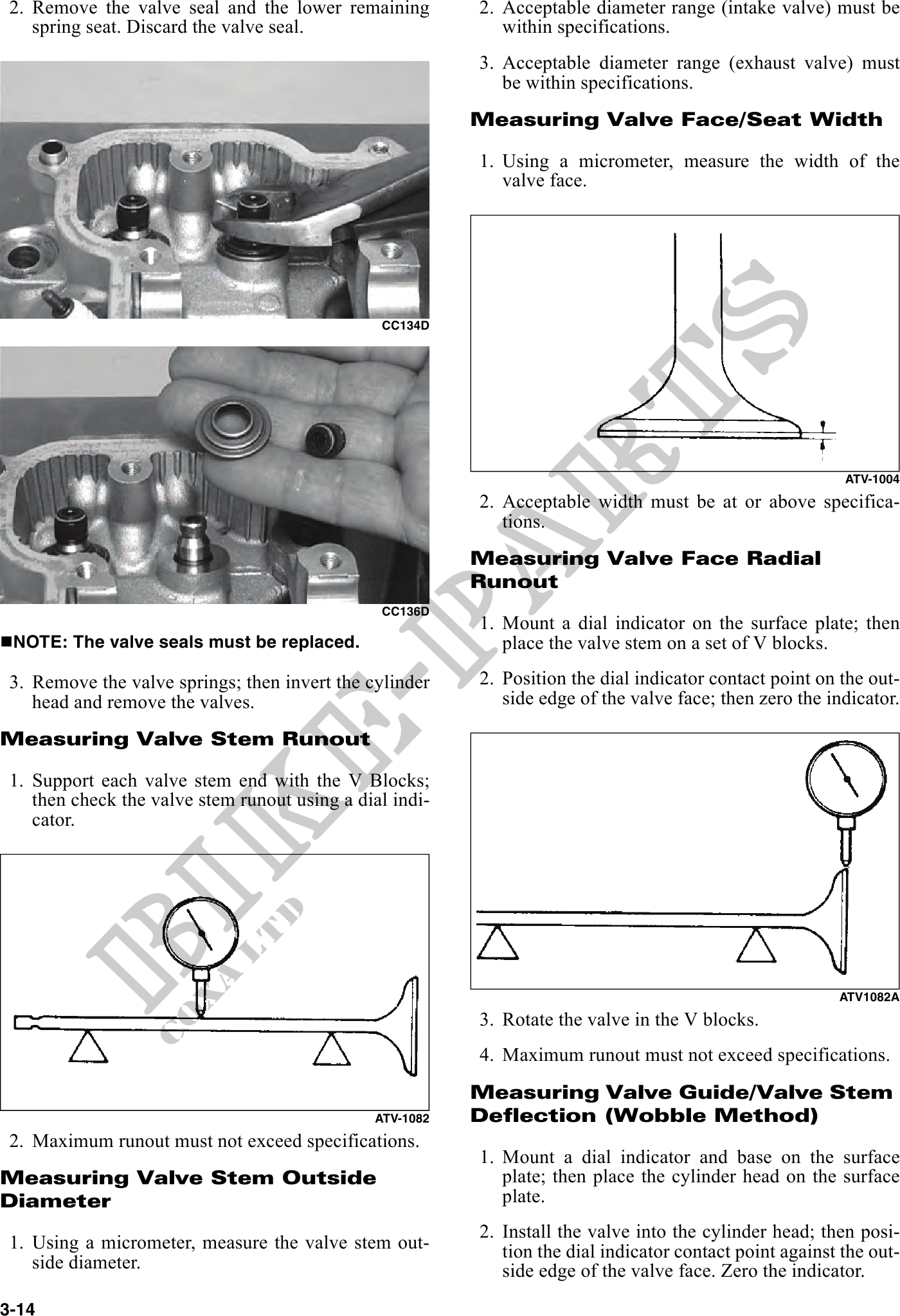

2. Remove the valve seal and the lower remaining 2. Acceptable diameter range (intake valve) must be
spring seat. Discard the valve seal. within specifications.
3. Acceptable diameter range (exhaust valve) must
be within specifications.
Measuring Valve Face/Seat Width
1. Using a micrometer, measure the width of the
valve face.
CC134D
ATV-1004
2. Acceptable width must be at or above specifica-
tions.
Measuring Valve Face Radial
Runout
CC136D
1. Mount a dial indicator on the surface plate; then
NOTE: The valve seals must be replaced. place the valve stem on a set of V blocks.
3. Remove the valve springs; then invert the cylinder 2. Position the dial indicator contact point on the out-
head and remove the valves. side edge of the valve face; then zero the indicator.
Measuring Valve Stem Runout
1. Support each valve stem end with the V Blocks;
then check the valve stem runout using a dial indi-
cator.
ATV1082A
3. Rotate the valve in the V blocks.
4. Maximum runout must not exceed specifications.
Measuring Valve Guide/Valve Stem
ATV-1082 Deflection (Wobble Method)
2. Maximum runout must not exceed specifications.
1. Mount a dial indicator and base on the surface
Measuring Valve Stem Outside plate; then place the cylinder head on the surface
Diameter plate.
2. Install the valve into the cylinder head; then posi-
1. Using a micrometer, measure the valve stem out- tion the dial indicator contact point against the out-
side diameter. side edge of the valve face. Zero the indicator.
3-14
