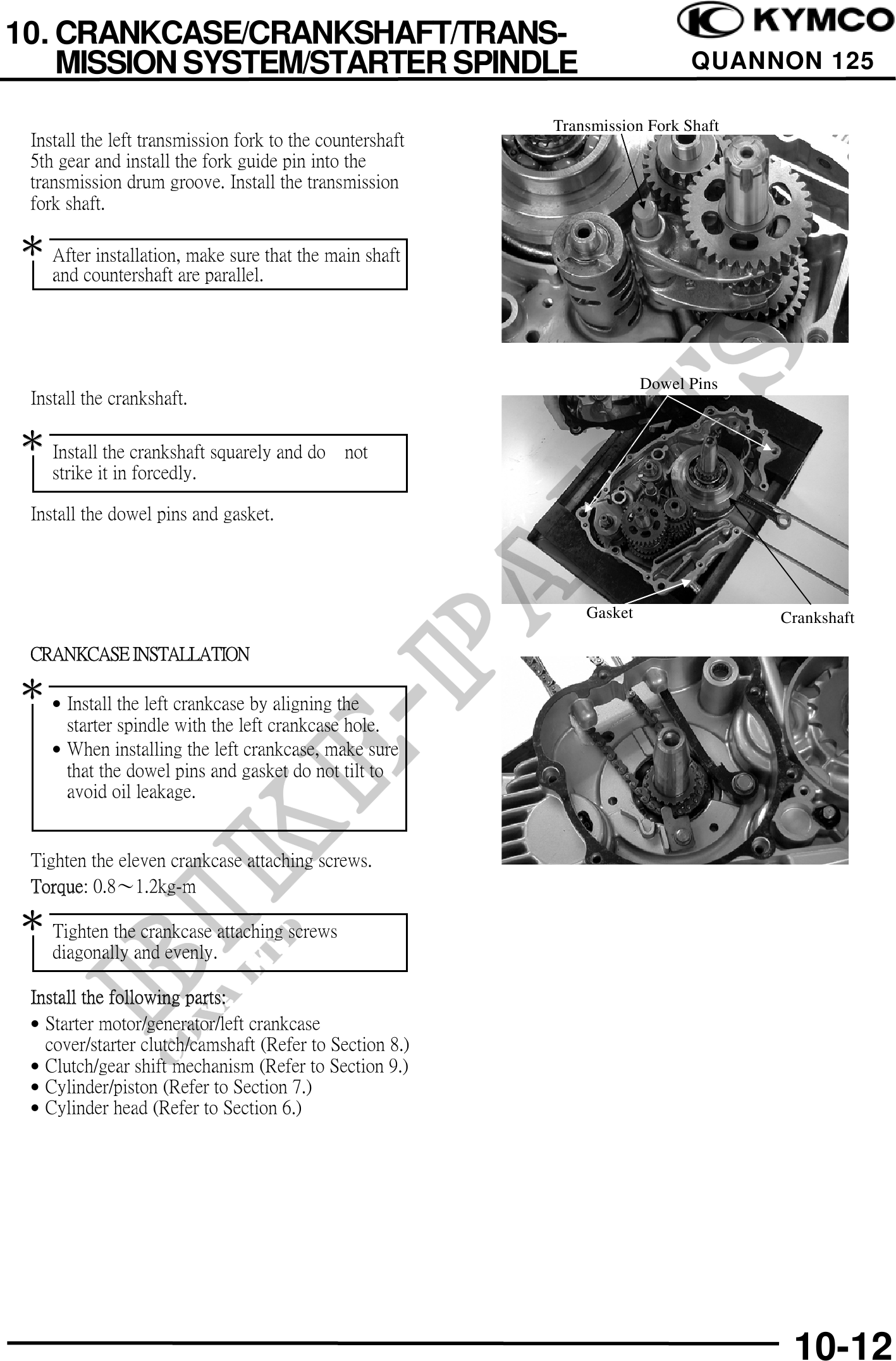

          10. CRANKCASE/CRANKSHAFT/TRANS-
    MISSION SYSTEM/STARTER SPINDLE                                           QUANNON 125

                                                          Transmission Fork Shaft
 Install the left transmission fork to the countershaft
 5th gear and install the fork guide pin into the
 transmission drum groove. Install the transmission
 fork shaft.

 After installation, make sure that the main shaft
    and countershaft are parallel.




                                                                       Dowel Pins
 Install the crankshaft.

 Install the crankshaft squarely and do       not
    strike it in forcedly.

 Install the dowel pins and gasket.




                                                              Gasket                Crankshaft

 CRANKCASE INSTALLATION

 · Install the left crankcase by aligning the
      starter spindle with the left crankcase hole.
    · When installing the left crankcase, make sure
      that the dowel pins and gasket do not tilt to
      avoid oil leakage.


 Tighten the eleven crankcase attaching screws.
 Torque: 0.81.2kg-m
 Tighten the crankcase attaching screws
    diagonally and evenly.

 Install the following parts:
 · Starter motor/generator/left crankcase
   cover/starter clutch/camshaft (Refer to Section 8.)
 · Clutch/gear shift mechanism (Refer to Section 9.)
 · Cylinder/piston (Refer to Section 7.)
 · Cylinder head (Refer to Section 6.)




                                                                                     10-12
