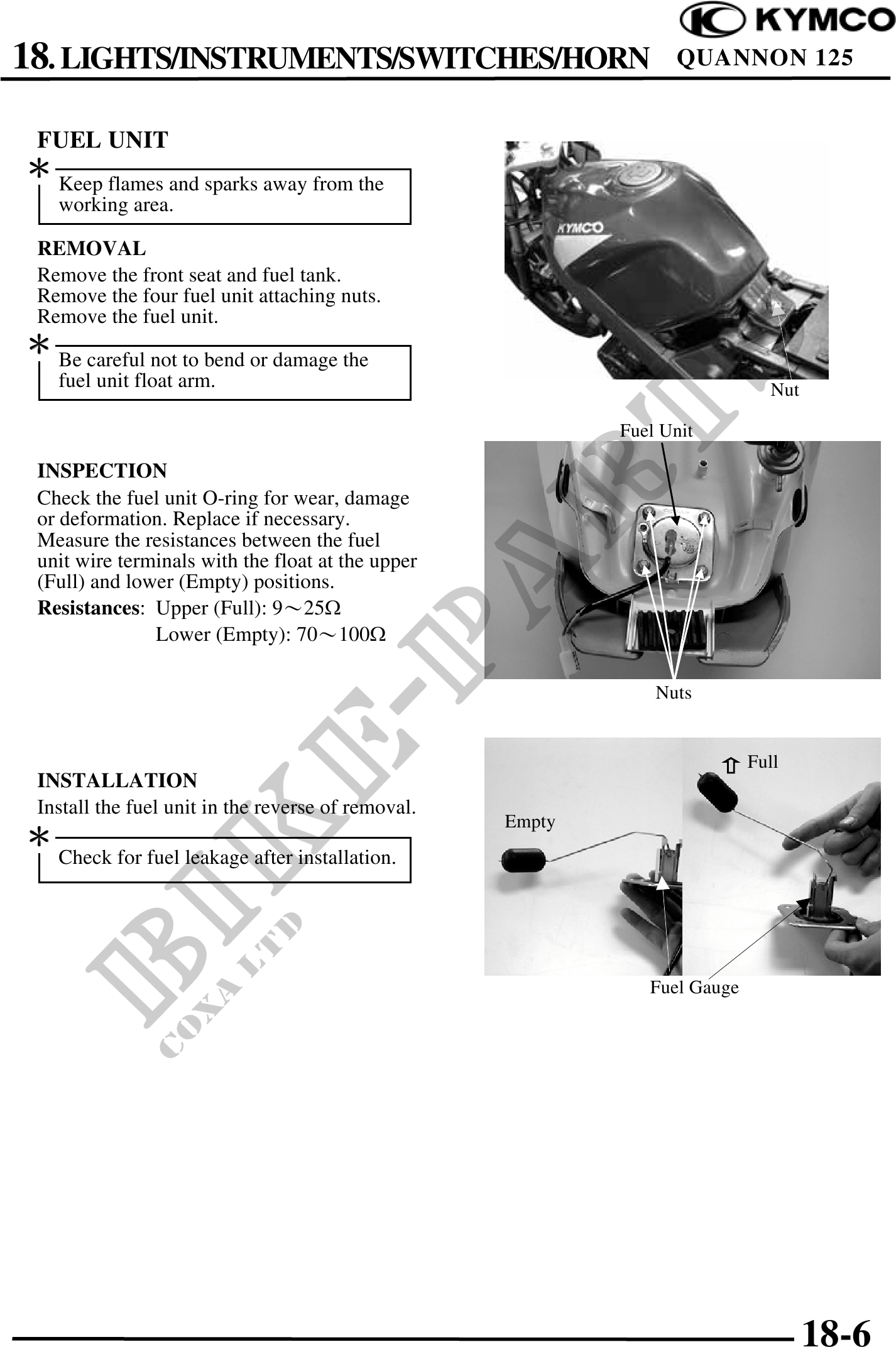

          18. LIGHTS/INSTRUMENTS/SWITCHES/HORN                              QUANNON 125


 FUEL UNIT
 Keep flames and sparks away from the
   working area.

 REMOVAL
 Remove the front seat and fuel tank.
 Remove the four fuel unit attaching nuts.
 Remove the fuel unit.
 Be careful not to bend or damage the
   fuel unit float arm.                                                       Nut

                                                            Fuel Unit

 INSPECTION
 Check the fuel unit O-ring for wear, damage
 or deformation. Replace if necessary.
 Measure the resistances between the fuel
 unit wire terminals with the float at the upper
 (Full) and lower (Empty) positions.
 Resistances: Upper (Full): 925
               Lower (Empty): 70100

                                                                Nuts


                                                                            Full
 INSTALLATION
 Install the fuel unit in the reverse of removal.
                                                    Empty

   Check for fuel leakage after installation.




                                                               Fuel Gauge




                                                                                    18-6
