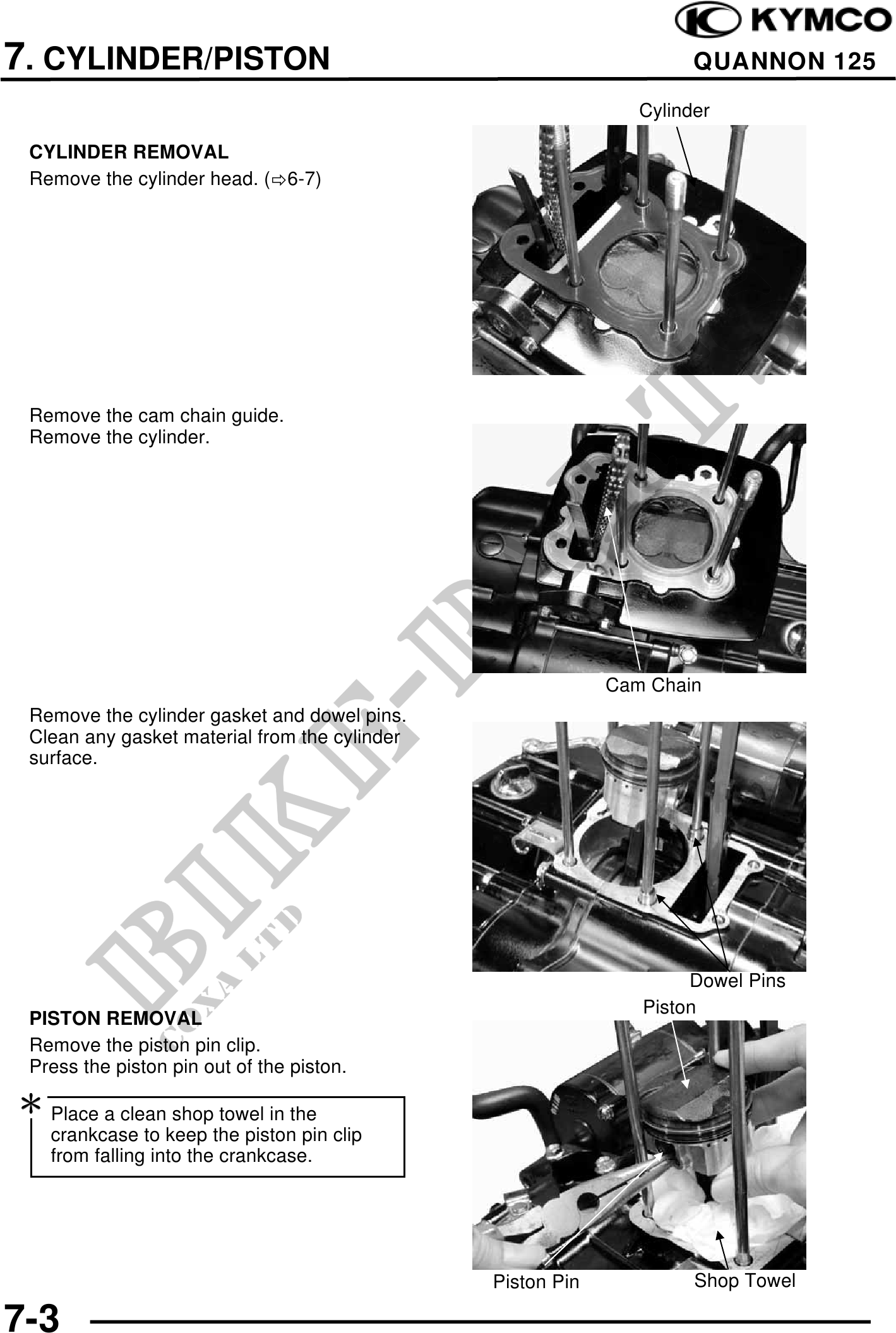

7. CYLINDER/PISTON QUANNON 125
Cylinder
CYLINDER REMOVAL
Remove the cylinder head. ( 6-7)
Remove the cam chain guide.
Remove the cylinder.
Cam Chain
Remove the cylinder gasket and dowel pins.
Clean any gasket material from the cylinder
surface.
Dowel Pins
Piston
PISTON REMOVAL
Remove the piston pin clip.
Press the piston pin out of the piston.
Place a clean shop towel in the
crankcase to keep the piston pin clip
from falling into the crankcase.
Piston Pin Shop Towel
7-3
