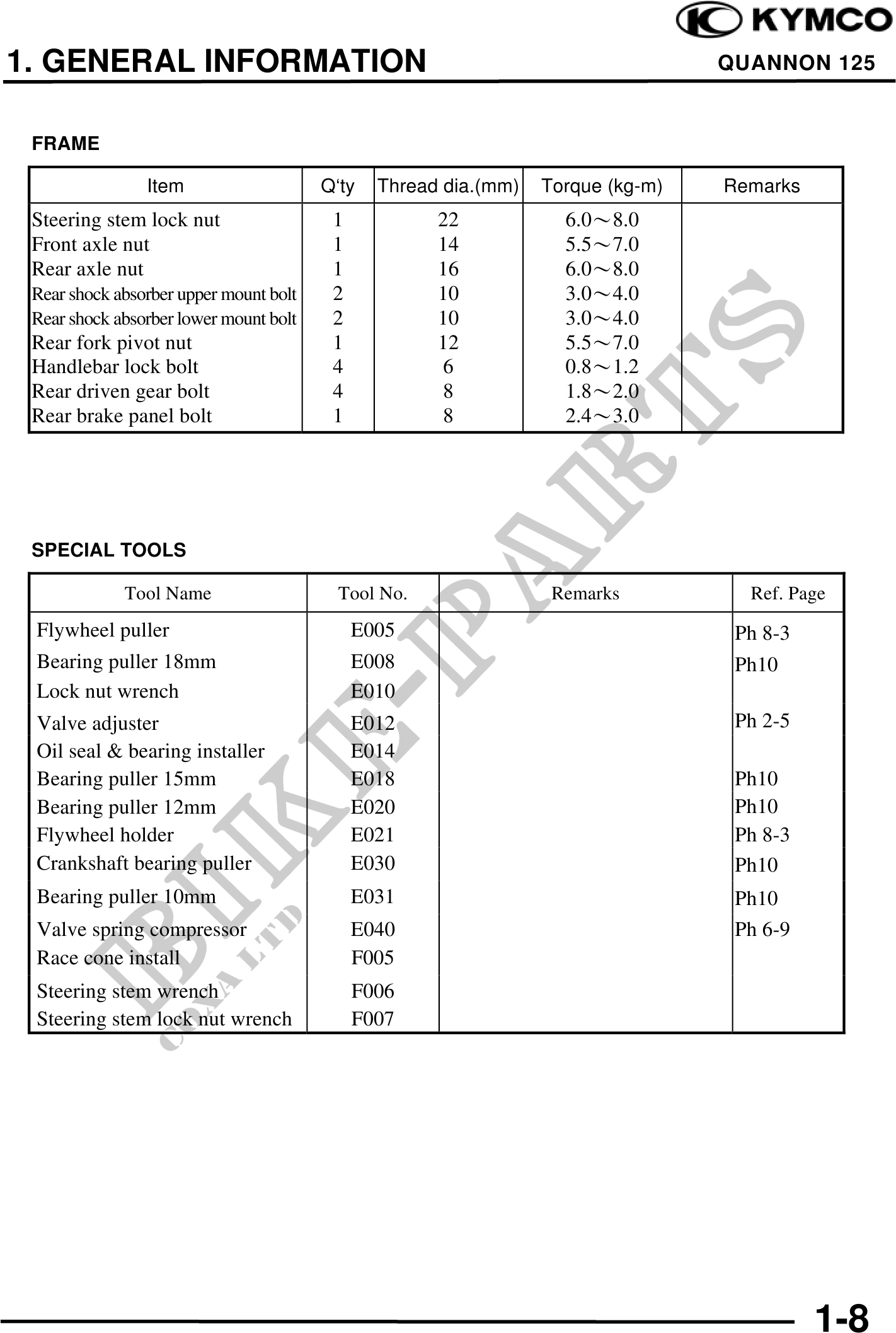

          1. GENERAL INFORMATION                                                           QUANNON 125


 FRAME

                Item                    Q`ty   Thread dia.(mm)   Torque (kg-m)   Remarks
 Steering stem lock nut                  1           22            6.08.0
 Front axle nut                          1           14            5.57.0
 Rear axle nut                           1           16            6.08.0
 Rear shock absorber upper mount bolt    2           10            3.04.0
 Rear shock absorber lower mount bolt    2           10            3.04.0
 Rear fork pivot nut                     1           12            5.57.0
 Handlebar lock bolt                     4            6            0.81.2
 Rear driven gear bolt                   4            8            1.82.0
 Rear brake panel bolt                   1            8            2.43.0




 SPECIAL TOOLS

             Tool Name                    Tool No.                Remarks          Ref. Page
 Flywheel puller                             E005                                 Ph 8-3
 Bearing puller 18mm                         E008                                 Ph10
 Lock nut wrench                             E010
 Valve adjuster                              E012                                 Ph 2-5
 Oil seal & bearing installer                E014
 Bearing puller 15mm                         E018                                 Ph10
 Bearing puller 12mm                         E020                                 Ph10
 Flywheel holder                             E021                                 Ph 8-3
 Crankshaft bearing puller                   E030                                 Ph10
 Bearing puller 10mm                         E031                                 Ph10
 Valve spring compressor                     E040                                 Ph 6-9
 Race cone install                           F005
 Steering stem wrench                        F006
 Steering stem lock nut wrench               F007




                                                                                           1-8
