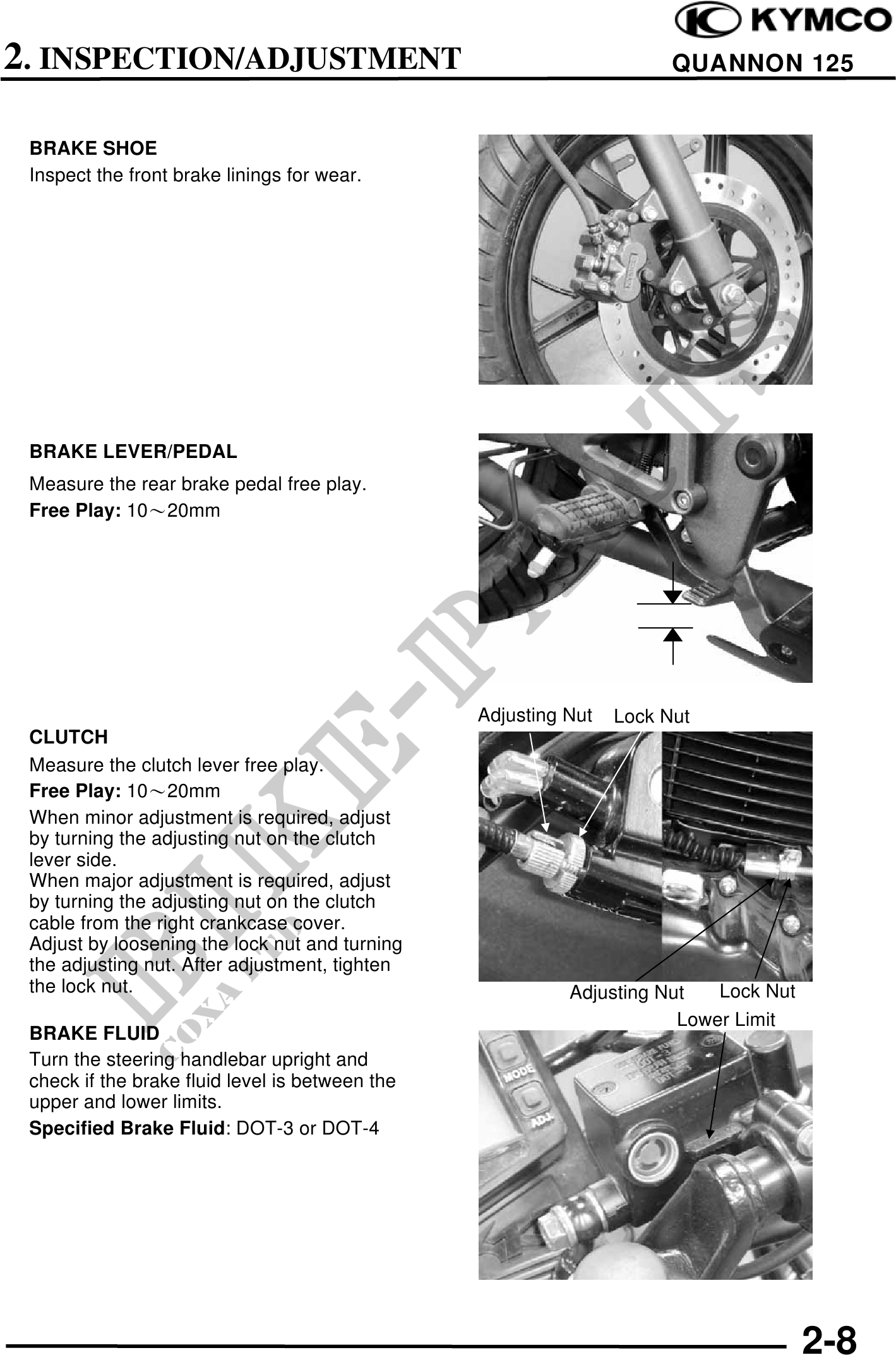

          2. INSPECTION/ADJUSTMENT                                               QUANNON 125


 BRAKE SHOE
 Inspect the front brake linings for wear.




 BRAKE LEVER/PEDAL
 Measure the rear brake pedal free play.
 Free Play: 1020mm




                                                 Adjusting Nut   Lock Nut
 CLUTCH
 Measure the clutch lever free play.
 Free Play: 1020mm
 When minor adjustment is required, adjust
 by turning the adjusting nut on the clutch
 lever side.
 When major adjustment is required, adjust
 by turning the adjusting nut on the clutch
 cable from the right crankcase cover.
 Adjust by loosening the lock nut and turning
 the adjusting nut. After adjustment, tighten
 the lock nut.                                             Adjusting Nut   Lock Nut
                                                                       Lower Limit
 BRAKE FLUID
 Turn the steering handlebar upright and
 check if the brake fluid level is between the
 upper and lower limits.
 Specified Brake Fluid: DOT-3 or DOT-4
