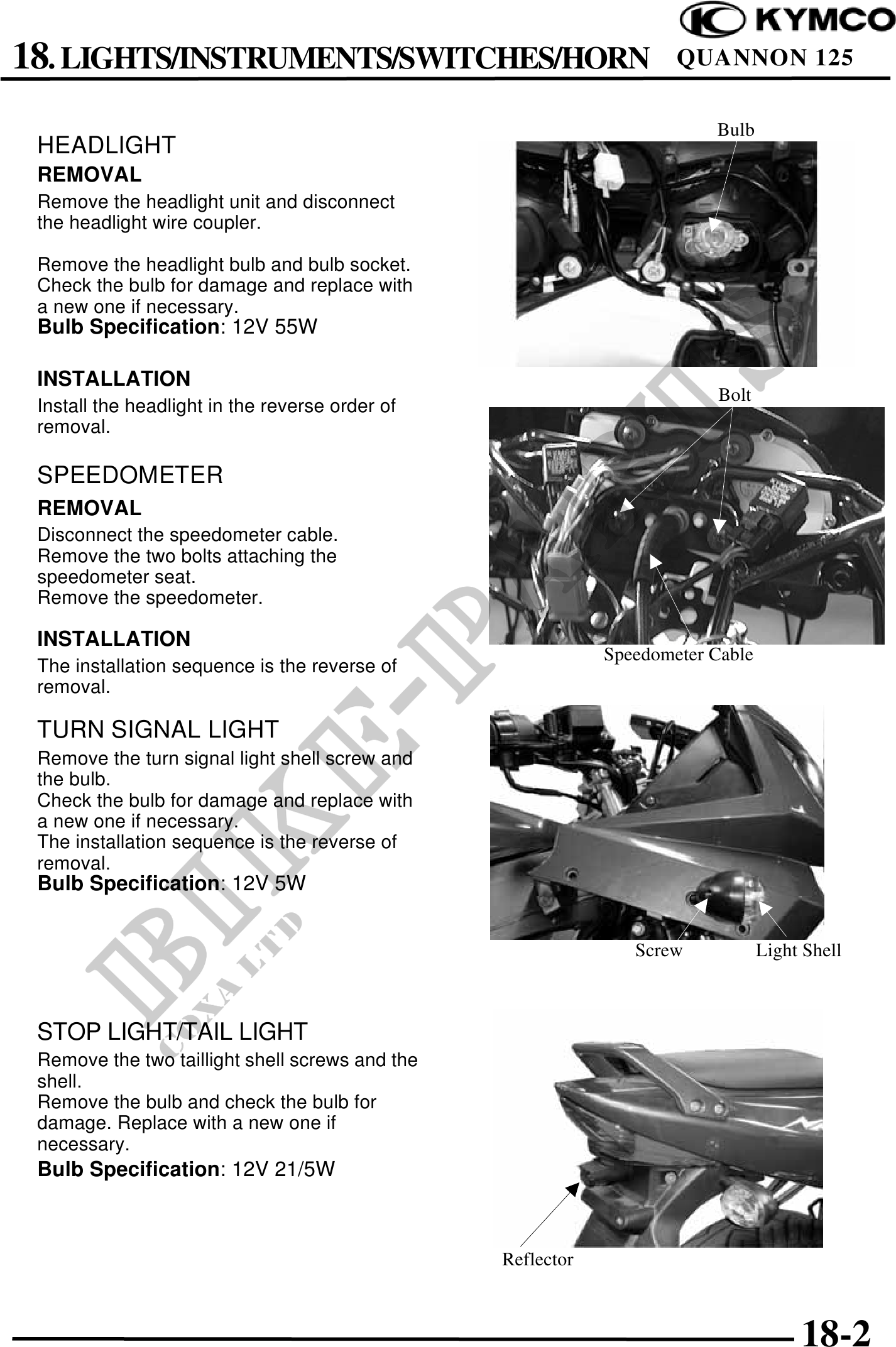

          18. LIGHTS/INSTRUMENTS/SWITCHES/HORN                                 QUANNON 125

                                                                         Bulb
 HEADLIGHT
 REMOVAL
 Remove the headlight unit and disconnect
 the headlight wire coupler.

 Remove the headlight bulb and bulb socket.
 Check the bulb for damage and replace with
 a new one if necessary.
 Bulb Specification: 12V 55W

 INSTALLATION
                                                                          Bolt
 Install the headlight in the reverse order of
 removal.

 SPEEDOMETER
 REMOVAL
 Disconnect the speedometer cable.
 Remove the two bolts attaching the
 speedometer seat.
 Remove the speedometer.

 INSTALLATION
                                                             Speedometer Cable
 The installation sequence is the reverse of
 removal.

 TURN SIGNAL LIGHT
 Remove the turn signal light shell screw and
 the bulb.
 Check the bulb for damage and replace with
 a new one if necessary.
 The installation sequence is the reverse of
 removal.
 Bulb Specification: 12V 5W


                                                                Screw            Light Shell



 STOP LIGHT/TAIL LIGHT
 Remove the two taillight shell screws and the
 shell.
 Remove the bulb and check the bulb for
 damage. Replace with a new one if
 necessary.
 Bulb Specification: 12V 21/5W



                                                 Reflector



                                                                                      18-2
