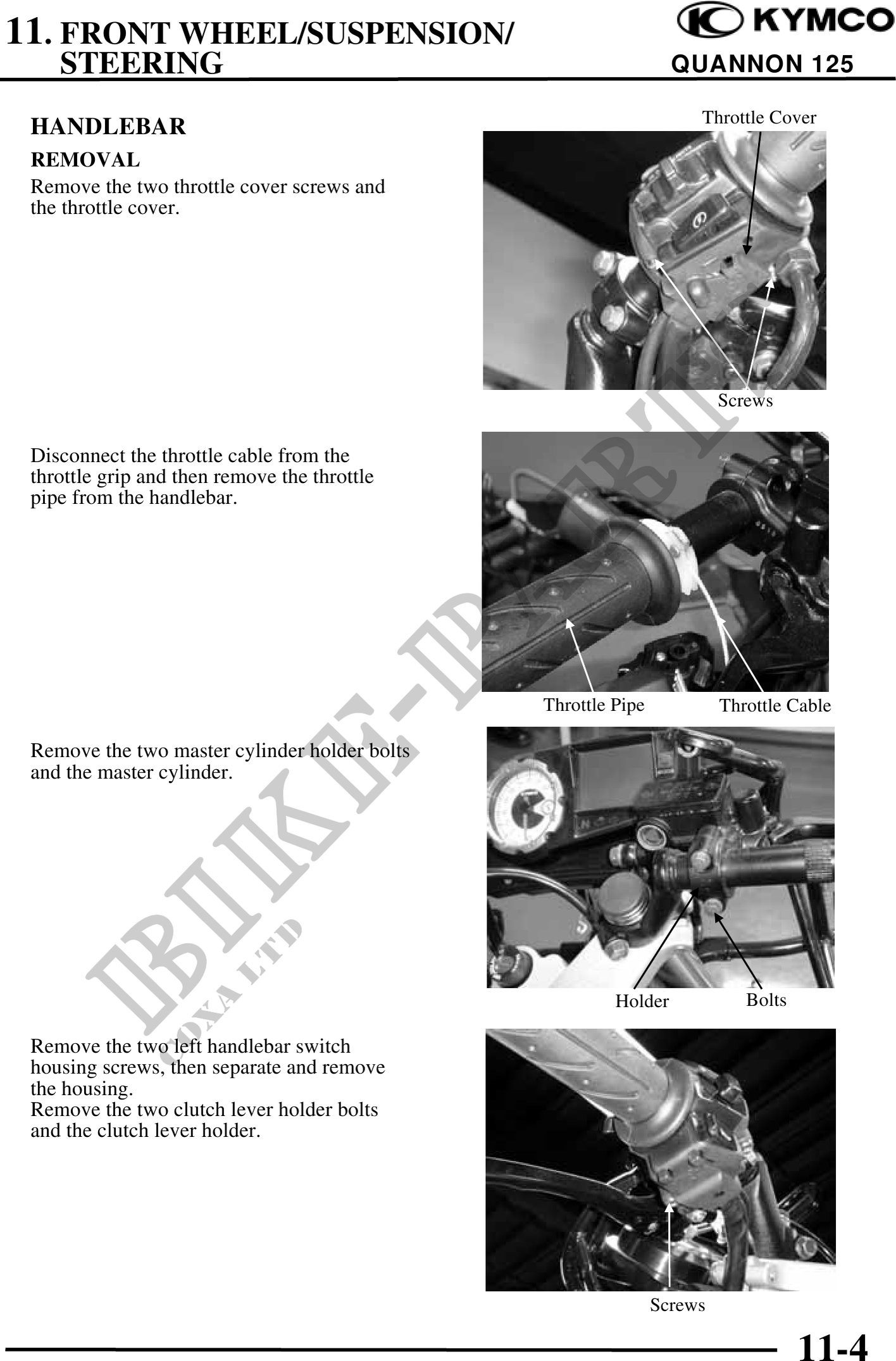

quannon 125 Workshop-manual : Page 110

          11. FRONT WHEEL/SUSPENSION/
    STEERING                                                     QUANNON 125

                                                                    Throttle Cover
 HANDLEBAR
 REMOVAL
 Remove the two throttle cover screws and
 the throttle cover.




                                                                        Screws

 Disconnect the throttle cable from the
 throttle grip and then remove the throttle
 pipe from the handlebar.




                                               Throttle Pipe            Throttle Cable

 Remove the two master cylinder holder bolts
 and the master cylinder.




                                                        Holder             Bolts

 Remove the two left handlebar switch
 housing screws, then separate and remove
 the housing.
 Remove the two clutch lever holder bolts
 and the clutch lever holder.




                                                               Screws

                                                                                   11-4
