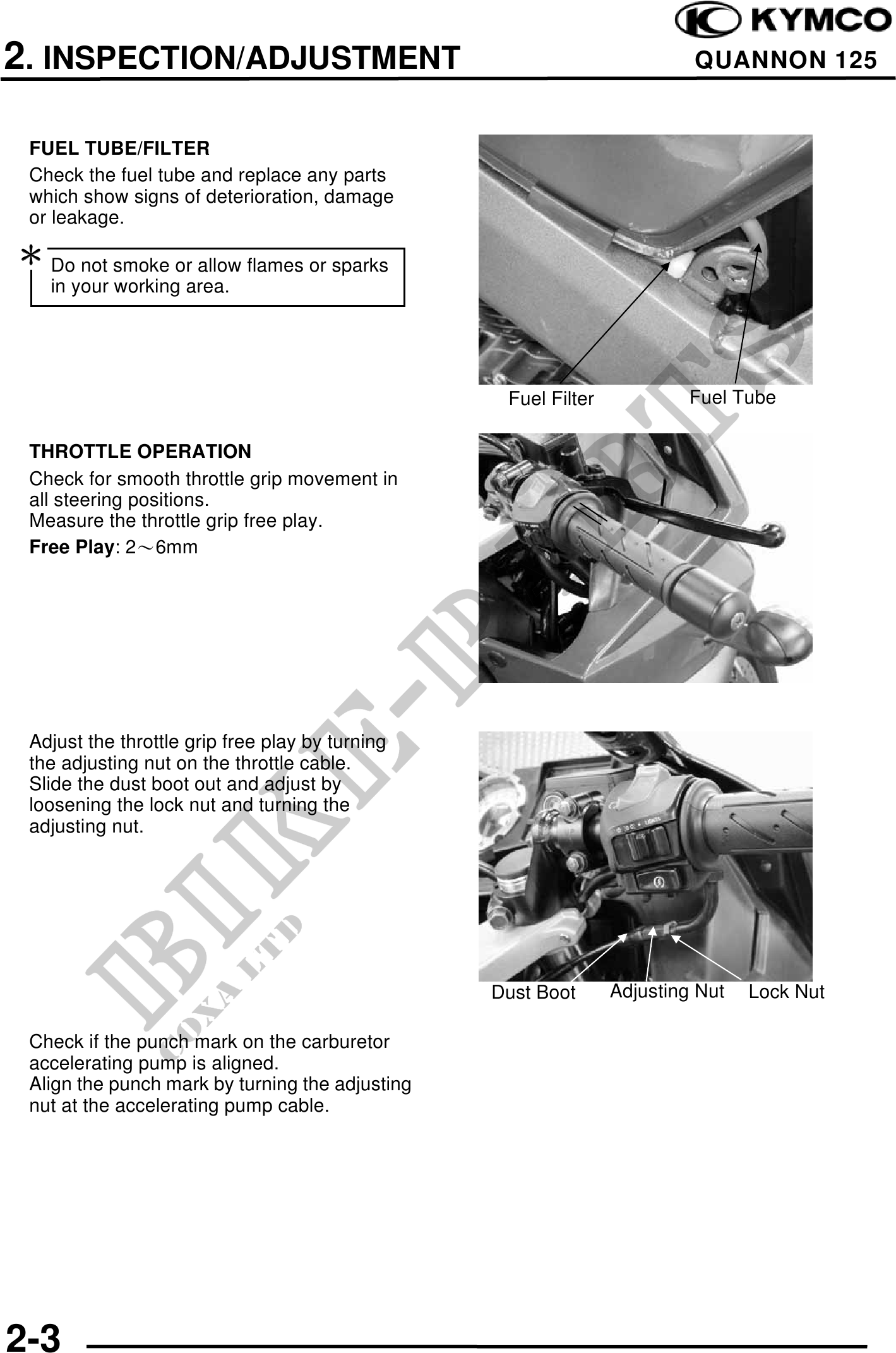

          2. INSPECTION/ADJUSTMENT                                                 QUANNON 125


 FUEL TUBE/FILTER
 Check the fuel tube and replace any parts
 which show signs of deterioration, damage
 or leakage.

 Do not smoke or allow flames or sparks
   in your working area.




                                                  Fuel Filter            Fuel Tube

 THROTTLE OPERATION
 Check for smooth throttle grip movement in
 all steering positions.
 Measure the throttle grip free play.
 Free Play: 26mm




 Adjust the throttle grip free play by turning
 the adjusting nut on the throttle cable.
 Slide the dust boot out and adjust by
 loosening the lock nut and turning the
 adjusting nut.




                                                 Dust Boot      Adjusting Nut   Lock Nut

 Check if the punch mark on the carburetor
 accelerating pump is aligned.
 Align the punch mark by turning the adjusting
 nut at the accelerating pump cable.




2-3
