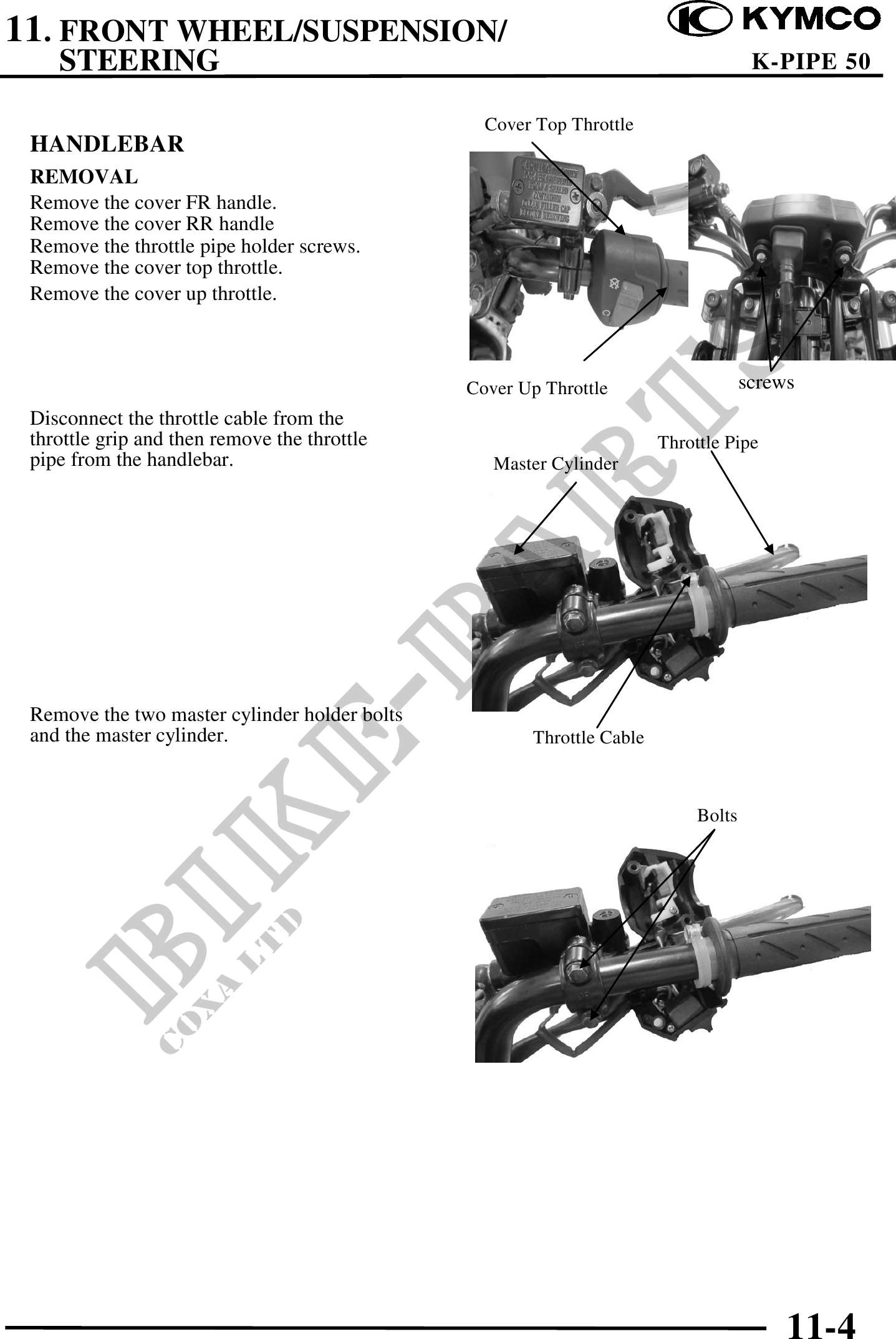

11. FRONT WHEEL/SUSPENSION/
STEERING K-PIPE 50
Cover Top Throttle
HANDLEBAR
REMOVAL
Remove the cover FR handle.
Remove the cover RR handle
Remove the throttle pipe holder screws.
Remove the cover top throttle.
Remove the cover up throttle.
Cover Up Throttle screws
Disconnect the throttle cable from the
throttle grip and then remove the throttle Throttle Pipe
pipe from the handlebar. Master Cylinder
Remove the two master cylinder holder bolts
and the master cylinder. Throttle Cable
Bolts
11-4
