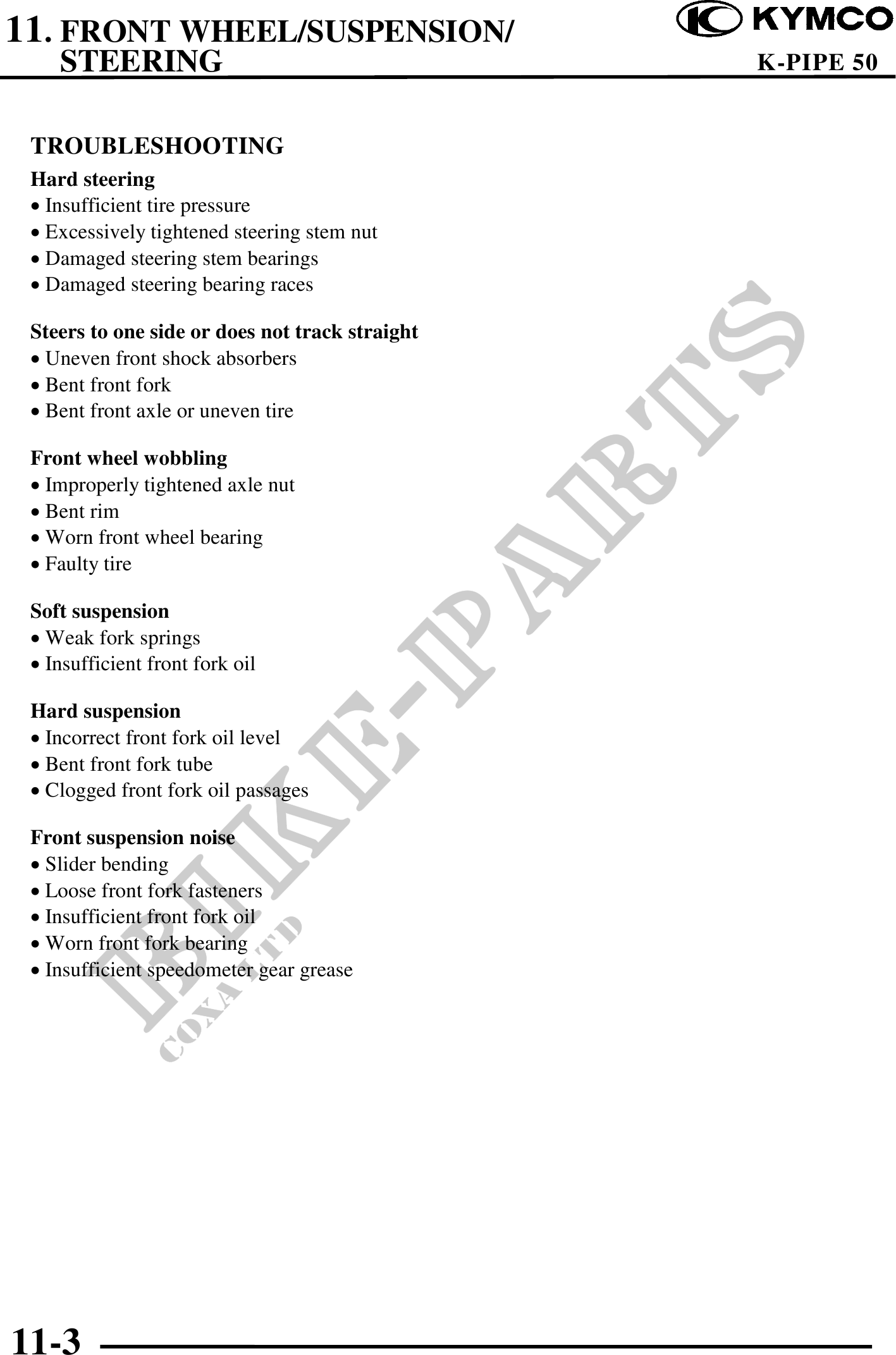

          11. FRONT WHEEL/SUSPENSION/
    STEERING                                     K-PIPE 50


 TROUBLESHOOTING
 Hard steering
  Insufficient tire pressure
  Excessively tightened steering stem nut
  Damaged steering stem bearings
  Damaged steering bearing races

 Steers to one side or does not track straight
  Uneven front shock absorbers
  Bent front fork
  Bent front axle or uneven tire

 Front wheel wobbling
  Improperly tightened axle nut
  Bent rim
  Worn front wheel bearing
  Faulty tire

 Soft suspension
  Weak fork springs
  Insufficient front fork oil

 Hard suspension
  Incorrect front fork oil level
  Bent front fork tube
  Clogged front fork oil passages

 Front suspension noise
  Slider bending
  Loose front fork fasteners
  Insufficient front fork oil
  Worn front fork bearing
  Insufficient speedometer gear grease




11-3
