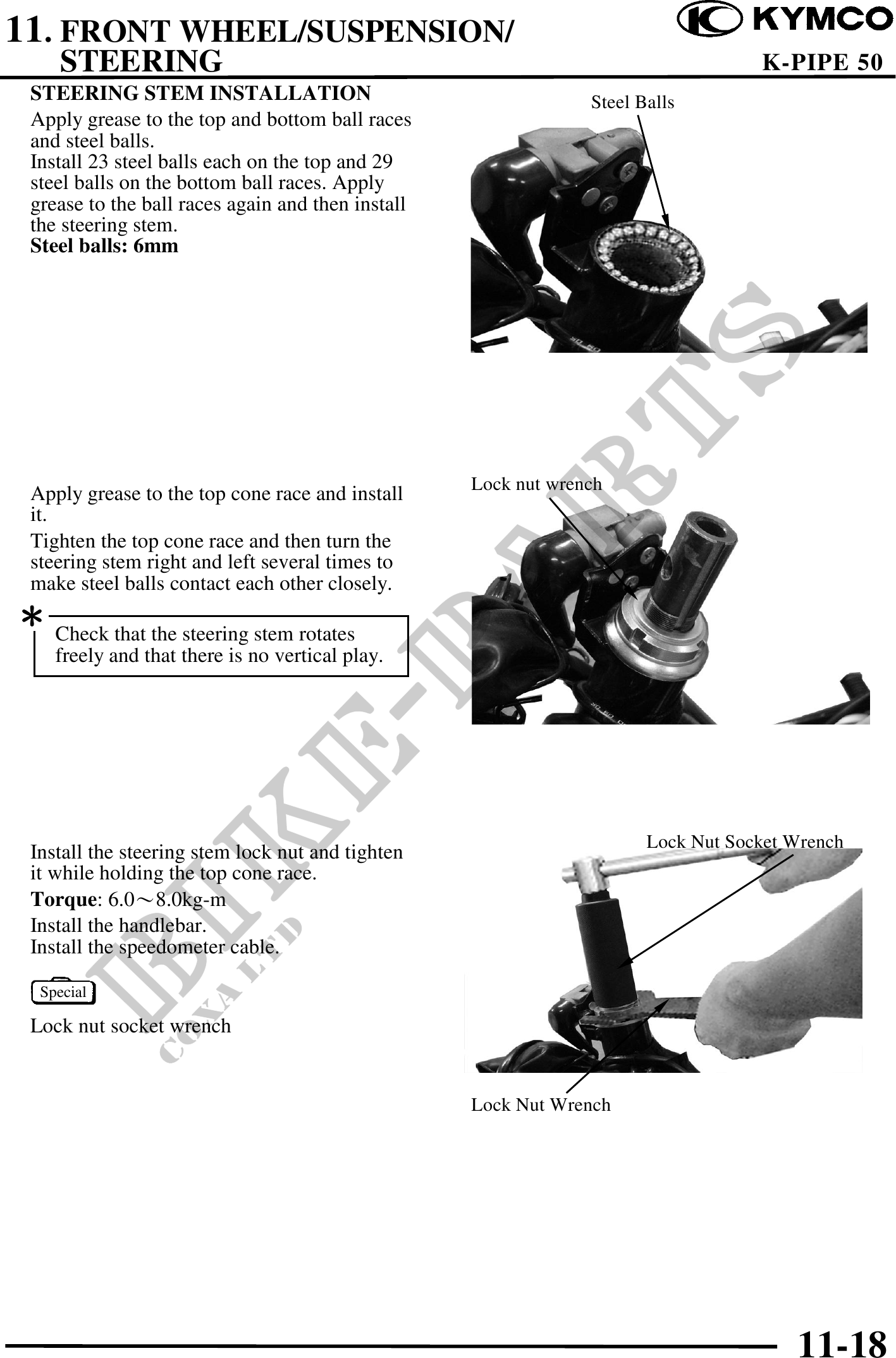

          11. FRONT WHEEL/SUSPENSION/
     STEERING                                                                      K-PIPE 50
 STEERING STEM INSTALLATION                                     Steel Balls
 Apply grease to the top and bottom ball races
 and steel balls.
 Install 23 steel balls each on the top and 29
 steel balls on the bottom ball races. Apply
 grease to the ball races again and then install
 the steering stem.
 Steel balls: 6mm




                                                   Lock nut wrench
 Apply grease to the top cone race and install
 it.
 Tighten the top cone race and then turn the
 steering stem right and left several times to
 make steel balls contact each other closely.
 Check that the steering stem rotates
    freely and that there is no vertical play.




                                                                       Lock Nut Socket Wrench
 Install the steering stem lock nut and tighten
 it while holding the top cone race.
 Torque: 6.08.0kg-m
 Install the handlebar.
 Install the speedometer cable.

  Special

 Lock nut socket wrench


                                                   Lock Nut Wrench




                                                                                       11-18
