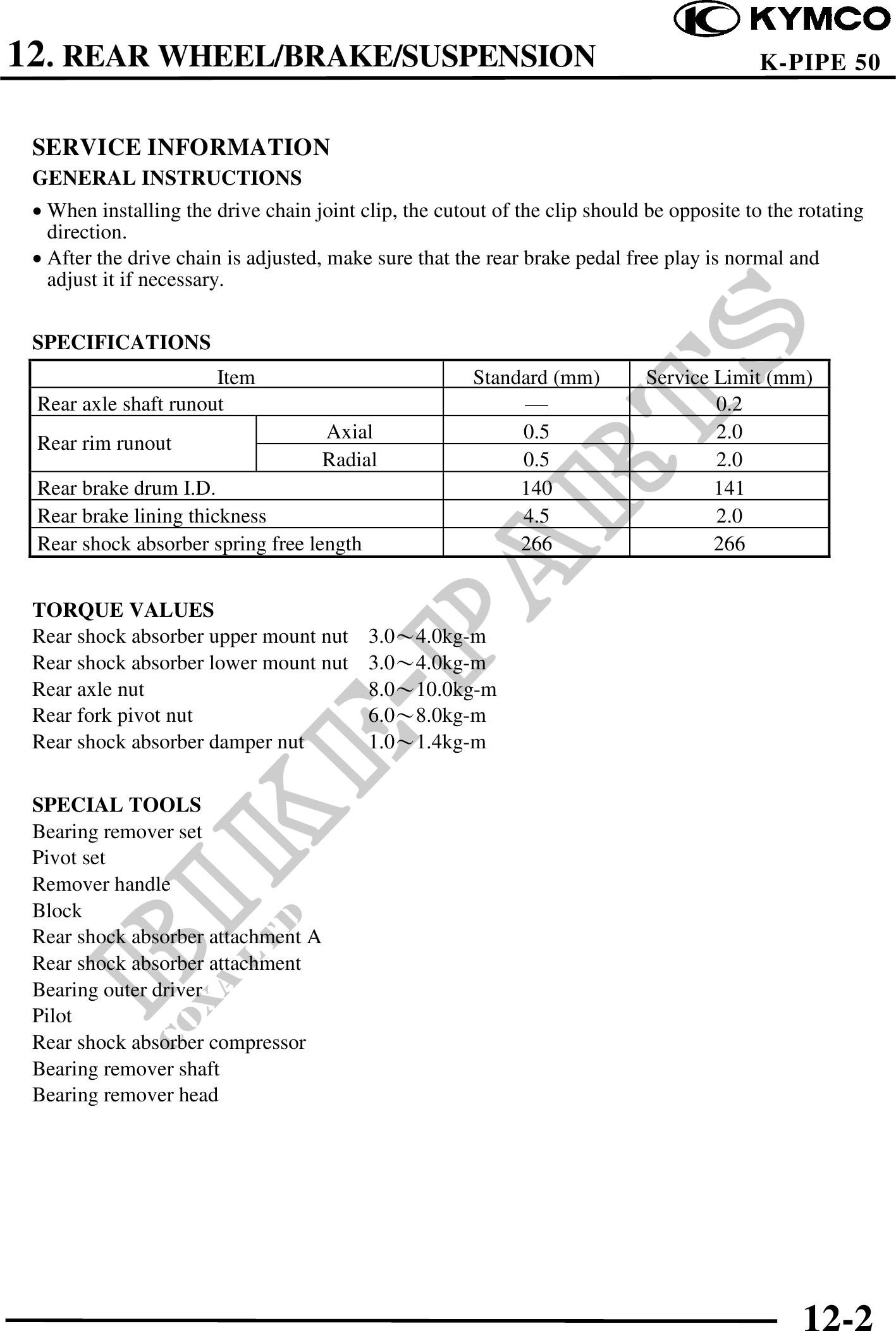

          12. REAR WHEEL/BRAKE/SUSPENSION                                                           K-PIPE 50
                                                                                          50

 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
  When installing the drive chain joint clip, the cutout of the clip should be opposite to the rotating
  direction.
  After the drive chain is adjusted, make sure that the rear brake pedal free play is normal and
  adjust it if necessary.


 SPECIFICATIONS
                      Item                             Standard (mm)        Service Limit (mm)
 Rear axle shaft runout                                                             0.2
                                    Axial                   0.5                     2.0
 Rear rim runout
                                    Radial                  0.5                     2.0
 Rear brake drum I.D.                                       140                     141
 Rear brake lining thickness                                4.5                     2.0
 Rear shock absorber spring free length                     266                     266


 TORQUE VALUES
 Rear shock absorber upper mount nut      3.04.0kg-m
 Rear shock absorber lower mount nut      3.04.0kg-m
 Rear axle nut                            8.010.0kg-m
 Rear fork pivot nut                      6.08.0kg-m
 Rear shock absorber damper nut           1.01.4kg-m


 SPECIAL TOOLS
 Bearing remover set
 Pivot set
 Remover handle
 Block
 Rear shock absorber attachment A
 Rear shock absorber attachment
 Bearing outer driver
 Pilot
 Rear shock absorber compressor
 Bearing remover shaft
 Bearing remover head




                                                                                               12-2
