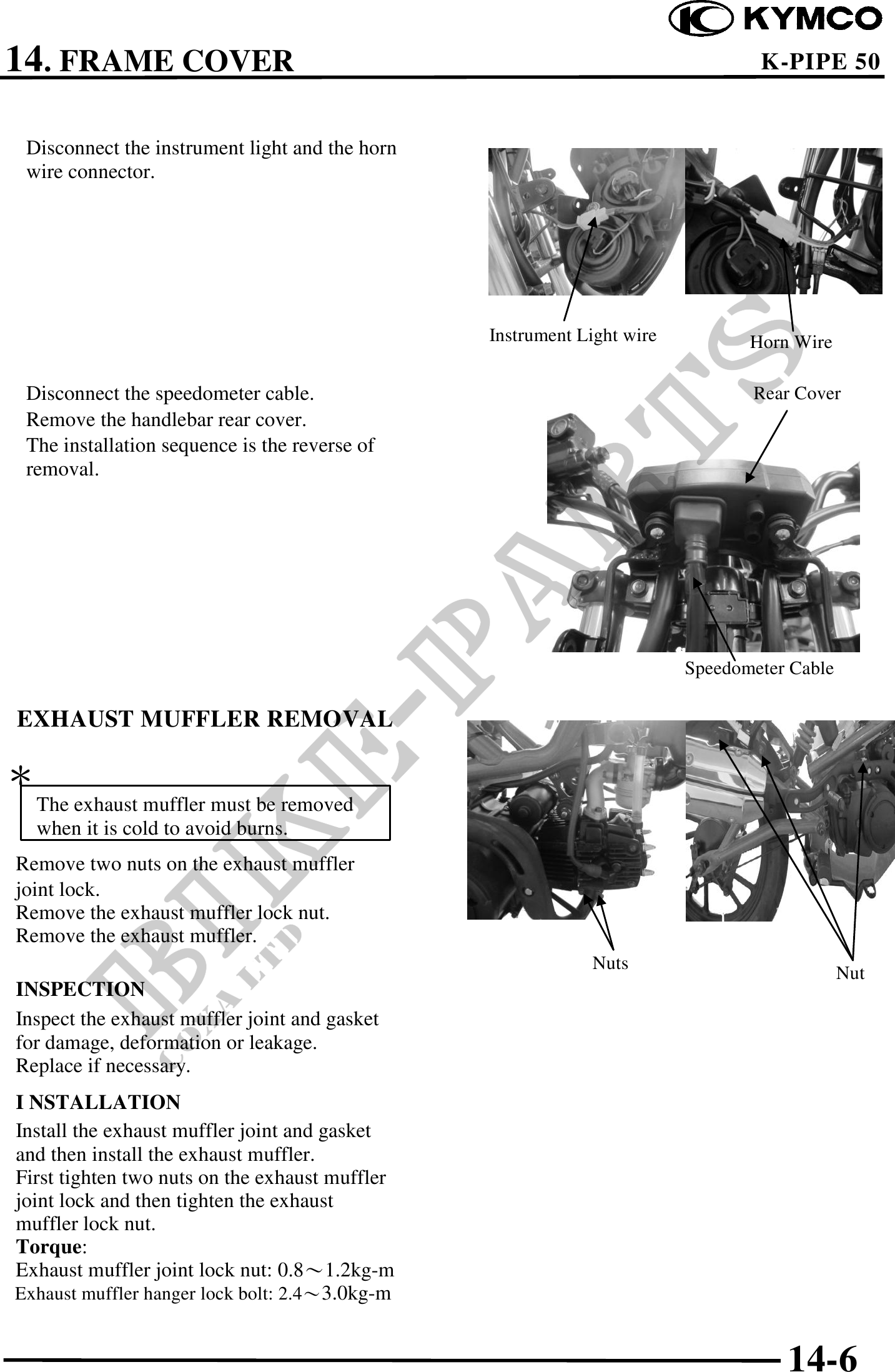

          14. FRAME COVER                                                                 K-PIPE 50


 Disconnect the instrument light and the horn
 wire connector.




                                                Instrument Light wire          Horn Wire

 Disconnect the speedometer cable.                                             Rear Cover
 Remove the handlebar rear cover.
 The installation sequence is the reverse of
 removal.




                                                                        Speedometer Cable

EXHAUST MUFFLER REMOVAL


   The exhaust muffler must be removed
   when it is cold to avoid burns.
Remove two nuts on the exhaust muffler
joint lock.
Remove the exhaust muffler lock nut.
Remove the exhaust muffler.
                                                            Nuts
                                                                                            Nut
INSPECTION
Inspect the exhaust muffler joint and gasket
for damage, deformation or leakage.
Replace if necessary.
I NSTALLATION
Install the exhaust muffler joint and gasket
and then install the exhaust muffler.
First tighten two nuts on the exhaust muffler
joint lock and then tighten the exhaust
muffler lock nut.
Torque:
Exhaust muffler joint lock nut: 0.81.2kg-m
Exhaust muffler hanger lock bolt: 2.43.0kg-m


                                                                                   14-6
