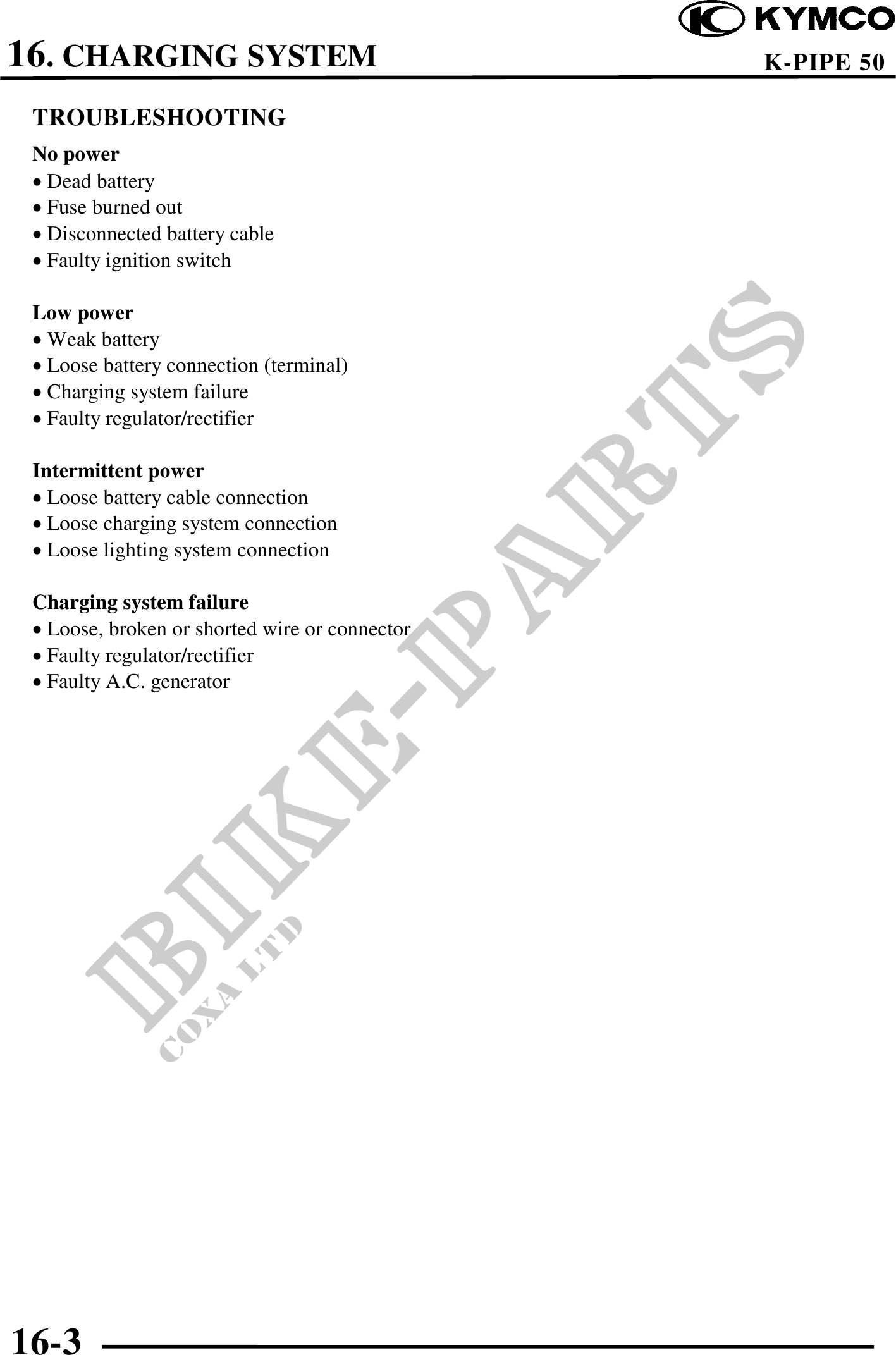

          16. CHARGING SYSTEM                            K-PIPE 50

 TROUBLESHOOTING
 No power
  Dead battery
  Fuse burned out
  Disconnected battery cable
  Faulty ignition switch

 Low power
  Weak battery
  Loose battery connection (terminal)
  Charging system failure
  Faulty regulator/rectifier

 Intermittent power
  Loose battery cable connection
  Loose charging system connection
  Loose lighting system connection

 Charging system failure
  Loose, broken or shorted wire or connector
  Faulty regulator/rectifier
  Faulty A.C. generator




16-3
