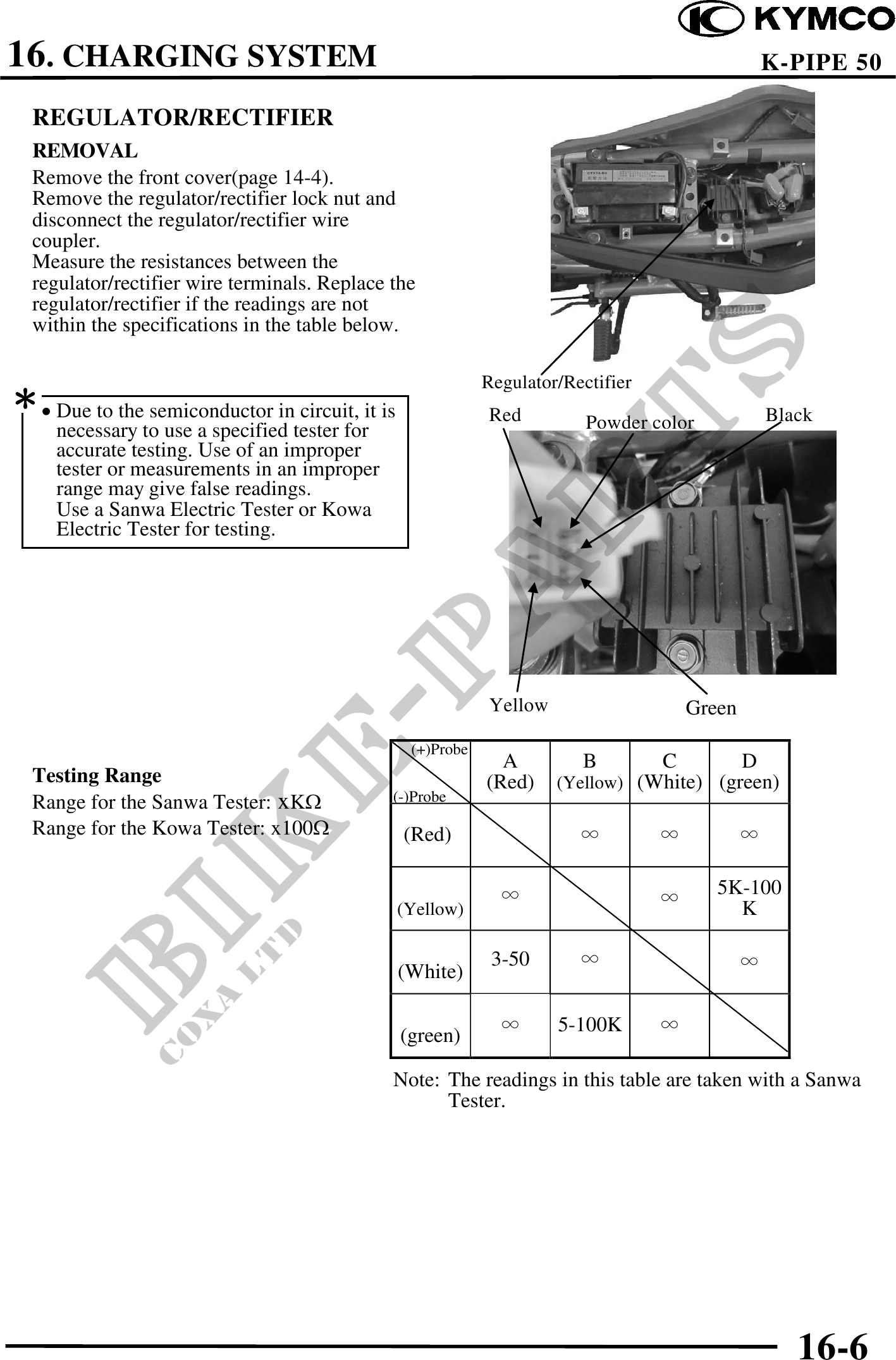

16. CHARGING SYSTEM K-PIPE 50
REGULATOR/RECTIFIER
REMOVAL
Remove the front cover(page 14-4).
Remove the regulator/rectifier lock nut and
disconnect the regulator/rectifier wire
coupler.
Measure the resistances between the
regulator/rectifier wire terminals. Replace the
regulator/rectifier if the readings are not
within the specifications in the table below.
Regulator/Rectifier
Due to the semiconductor in circuit, it is Red Black
necessary to use a specified tester for Powder color
accurate testing. Use of an improper
tester or measurements in an improper
range may give false readings.
Use a Sanwa Electric Tester or Kowa
Electric Tester for testing.
Yellow Green
(+)Probe
A B C D
Testing Range (Red) (Yellow) (White) (green)
Range for the Sanwa Tester: xK (-)Probe
Range for the Kowa Tester: x100 (Red)
5K-100
(Yellow) K
3-50
(White)
5-100K
(green)
Note: The readings in this table are taken with a Sanwa
Tester.
16-6
