          1. GENERAL INFORMATION                                                                     K-PIPE 50

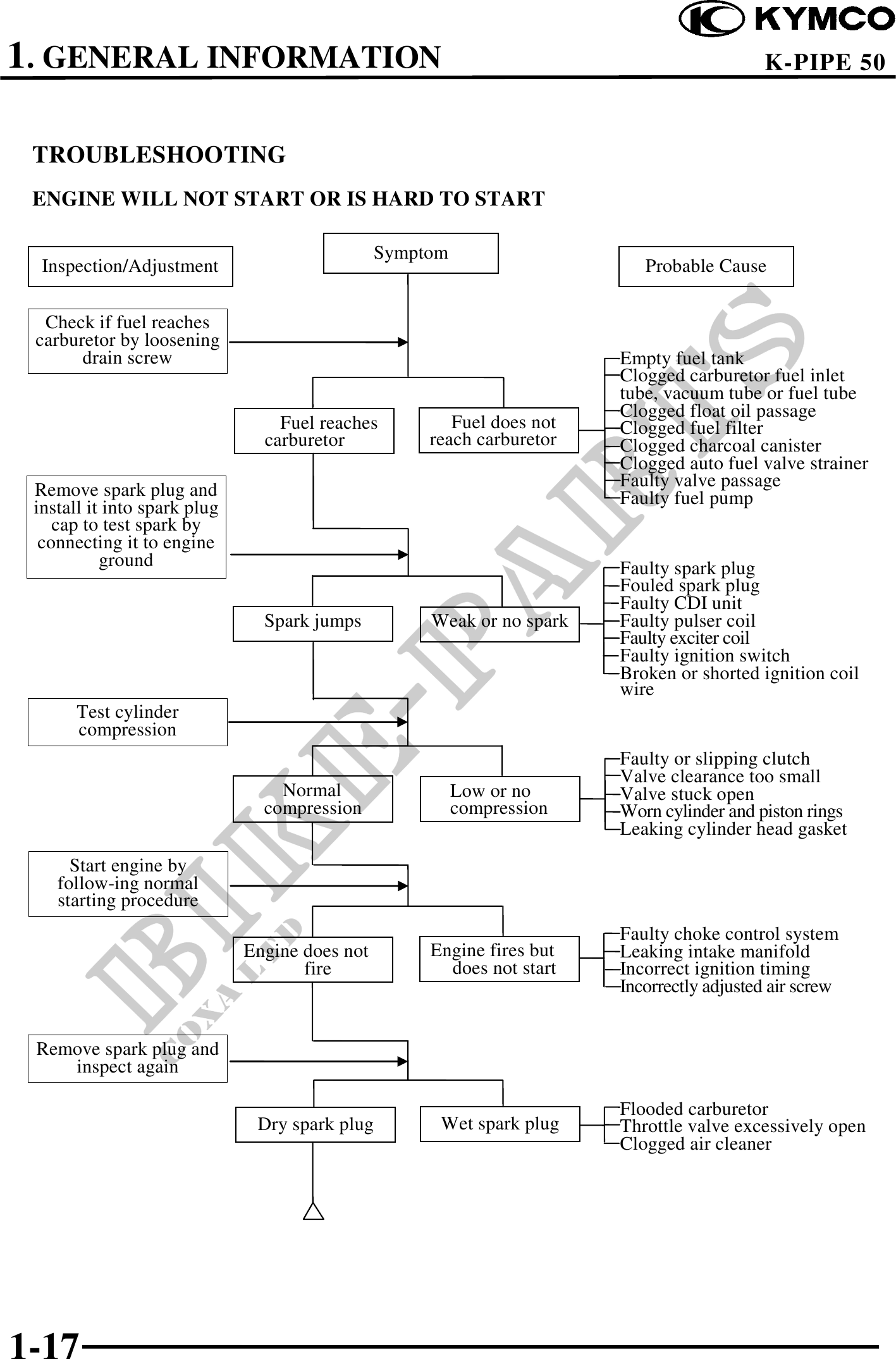

 TROUBLESHOOTING
 ENGINE WILL NOT START OR IS HARD TO START

                                                Symptom
  Inspection/Adjustment                                                    Probable Cause

  Check if fuel reaches
 carburetor by loosening
       drain screw                                                      Empty fuel tank
                                                                        Clogged carburetor fuel inlet
                                                                        tube, vacuum tube or fuel tube
                                                                        Clogged float oil passage
                                  Fuel reaches          Fuel does not   Clogged fuel filter
                                carburetor           reach carburetor   Clogged charcoal canister
                                                                        Clogged auto fuel valve strainer
 Remove spark plug and                                                  Faulty valve passage
 install it into spark plug                                             Faulty fuel pump
    cap to test spark by
  connecting it to engine
           ground                                                       Faulty spark plug
                                                                        Fouled spark plug
                                                                        Faulty CDI unit
                                Spark jumps          Weak or no spark   Faulty pulser coil
                                                                        Faulty exciter coil
                                                                        Faulty ignition switch
                                                                        Broken or shorted ignition coil
                                                                        wire
       Test cylinder
       compression
                                                                        Faulty or slipping clutch
                                                                        Valve clearance too small
                                  Normal                  Low or no     Valve stuck open
                                compression               compression   Worn cylinder and piston rings
                                                                        Leaking cylinder head gasket
      Start engine by
    follow-ing normal
    starting procedure
                                                                        Faulty choke control system
                              Engine does not        Engine fires but   Leaking intake manifold
                                     fire              does not start   Incorrect ignition timing
                                                                        Incorrectly adjusted air screw


 Remove spark plug and
    inspect again

                                                                        Flooded carburetor
                               Dry spark plug         Wet spark plug    Throttle valve excessively open
                                                                        Clogged air cleaner




1-17
