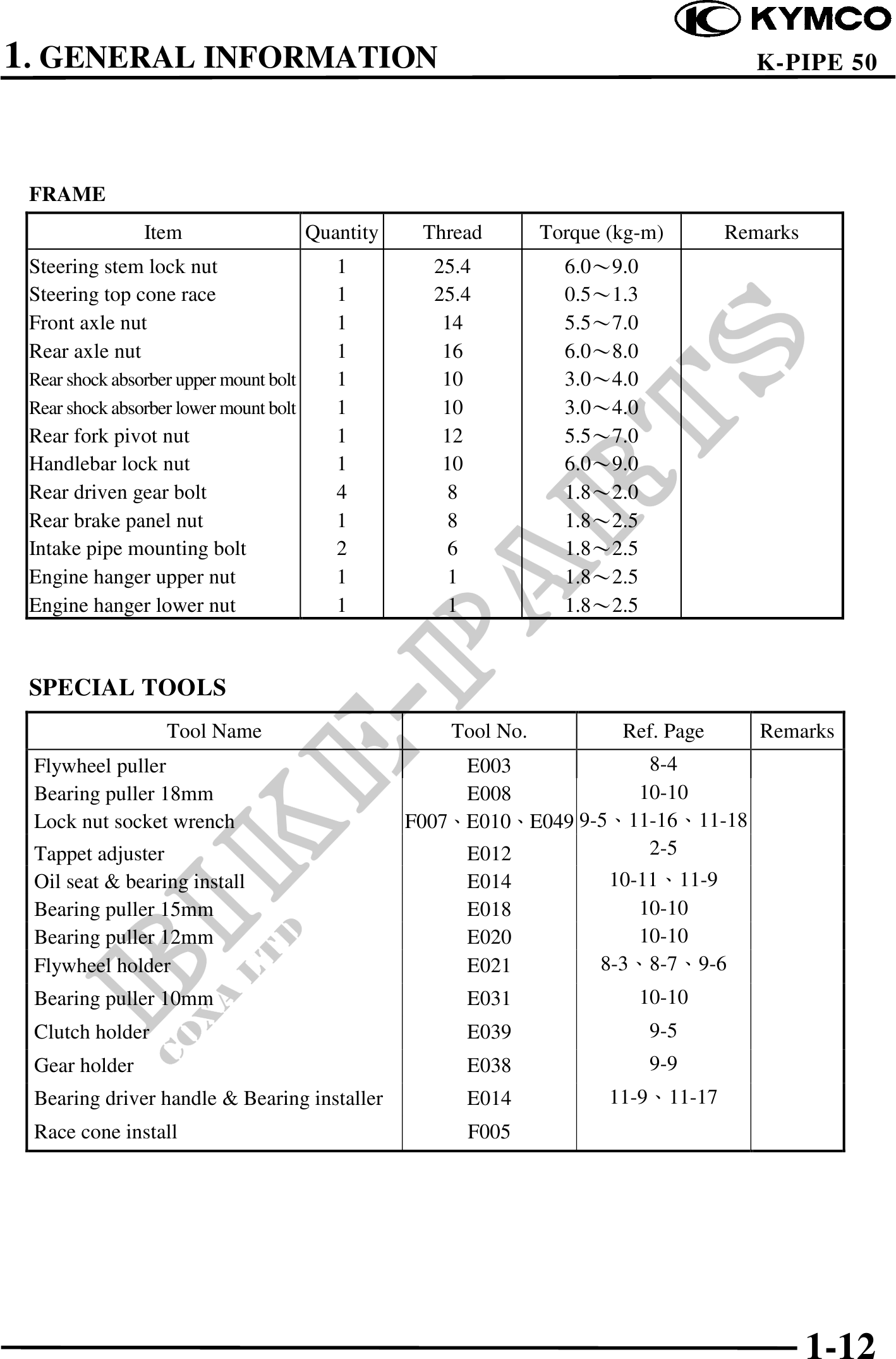

1. GENERAL INFORMATION K-PIPE 50
FRAME
Item Quantity Thread Torque (kg-m) Remarks
Steering stem lock nut 1 dia.(mm)
25.4 6.09.0
Steering top cone race 1 25.4 0.51.3
Front axle nut 1 14 5.57.0
Rear axle nut 1 16 6.08.0
Rear shock absorber upper mount bolt 1 10 3.04.0
Rear shock absorber lower mount bolt 1 10 3.04.0
Rear fork pivot nut 1 12 5.57.0
Handlebar lock nut 1 10 6.09.0
Rear driven gear bolt 4 8 1.82.0
Rear brake panel nut 1 8 1.82.5
Intake pipe mounting bolt 2 6 1.82.5
Engine hanger upper nut 1 1 1.82.5
Engine hanger lower nut 1 1 1.82.5
SPECIAL TOOLS
Tool Name Tool No. Ref. Page Remarks
Flywheel puller E003 8-4
Bearing puller 18mm E008 10-10
Lock nut socket wrench F007E010E049 9-511-1611-18
Tappet adjuster E012 2-5
Oil seat & bearing install E014 10-1111-9
Bearing puller 15mm E018 10-10
Bearing puller 12mm E020 10-10
Flywheel holder E021 8-38-79-6
Bearing puller 10mm E031 10-10
Clutch holder E039 9-5
Gear holder E038 9-9
Bearing driver handle & Bearing installer E014 11-911-17
Race cone install F005
1-12
