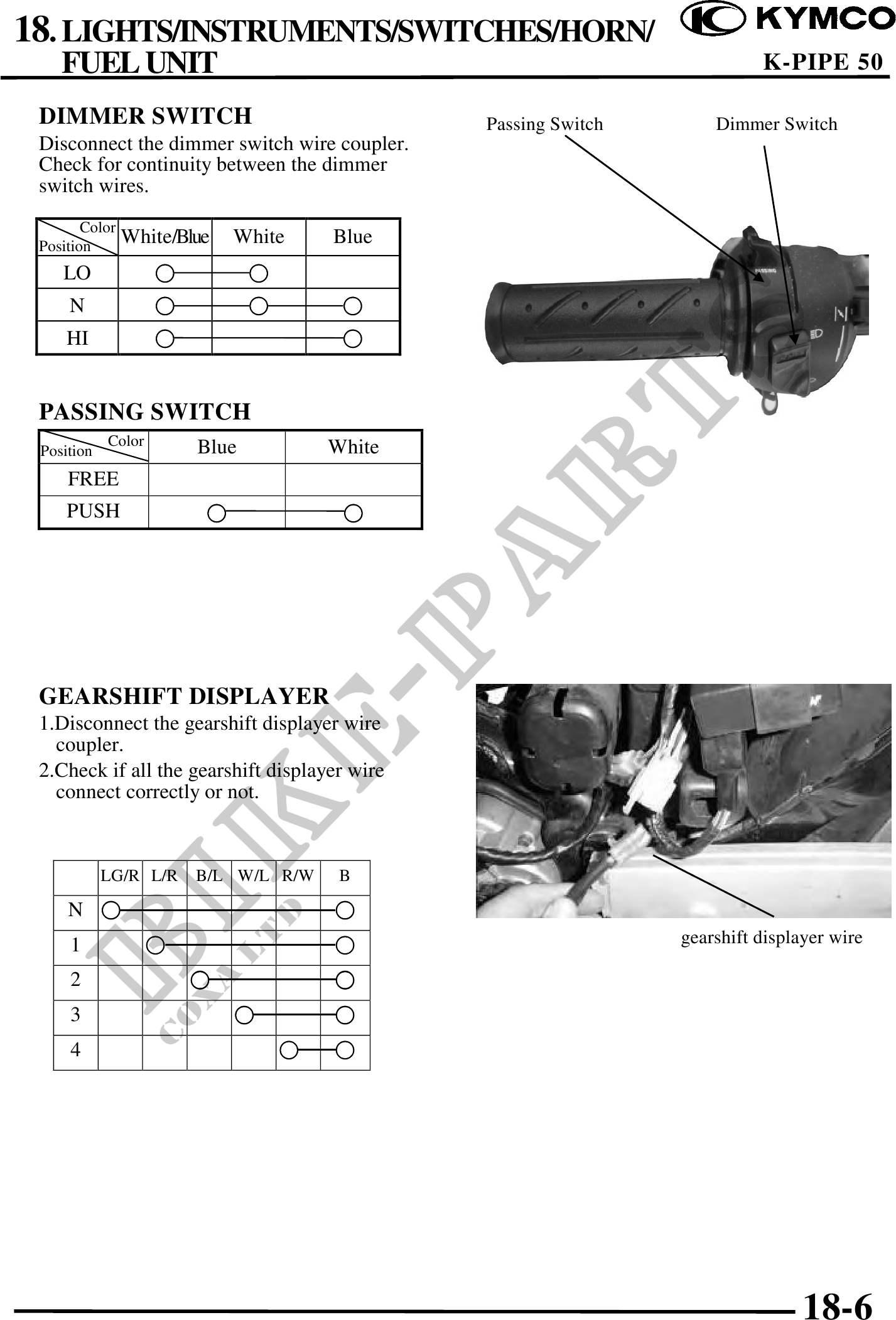

kpw 50 Workshop-manual : Page 189

          18. LIGHTS/INSTRUMENTS/SWITCHES/HORN/
    FUEL UNIT                                                             K-PIPE 50

 DIMMER SWITCH                                 Passing Switch       Dimmer Switch
 Disconnect the dimmer switch wire coupler.
 Check for continuity between the dimmer
 switch wires.
        Color
 Position       White/Blue   White    Blue
    LO
     N
     HI


 PASSING SWITCH
            Color       Blue          White
 Position
     FREE
     PUSH




 GEARSHIFT DISPLAYER
 1.Disconnect the gearshift displayer wire
   coupler.
 2.Check if all the gearshift displayer wire
   connect correctly or not.


            LG/R L/R    B/L W/L R/W    B

     N
     1                                                          gearshift displayer wire

     2
     3
     4




                                                                                18-6
