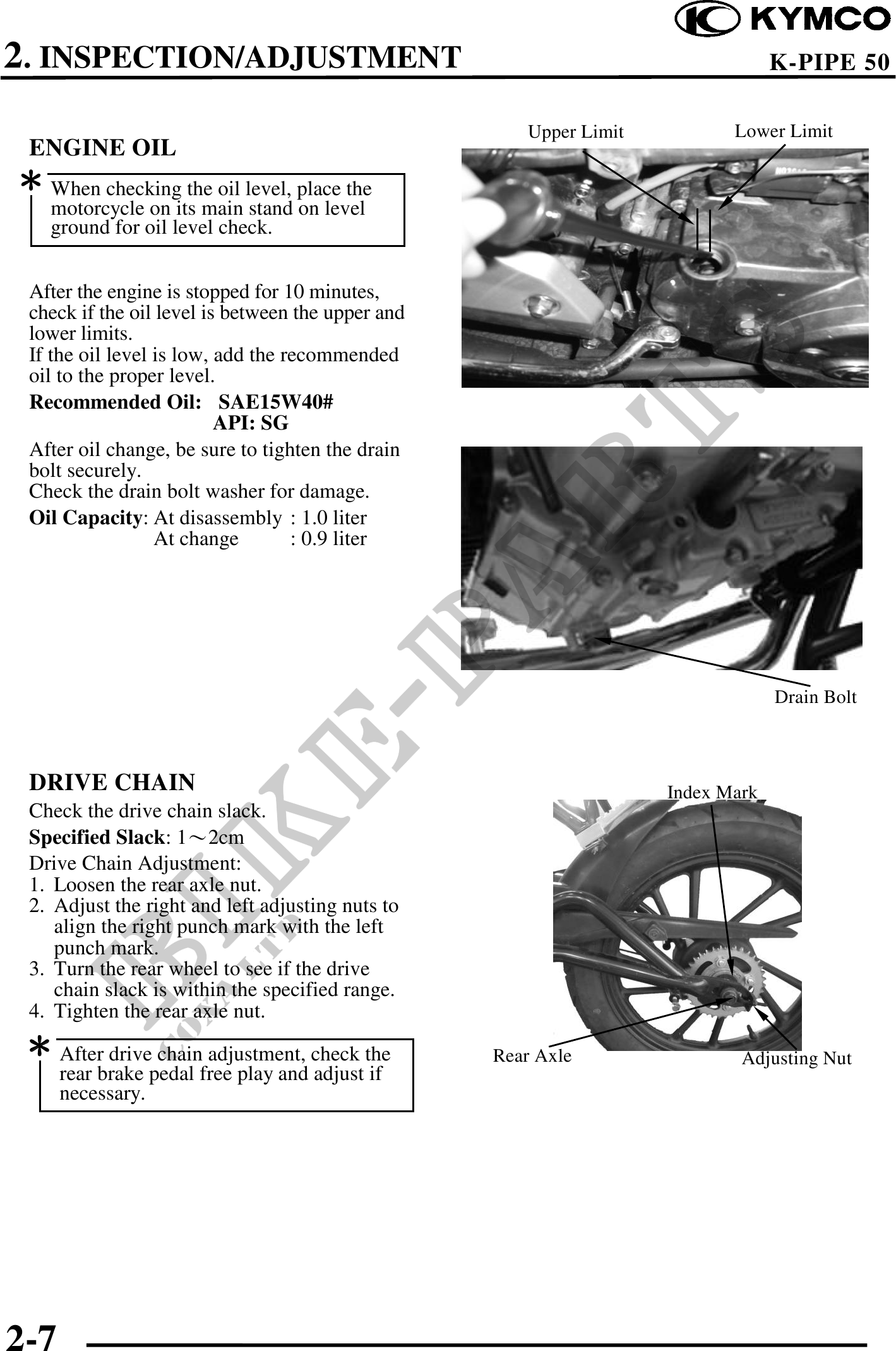

kpw 50 Workshop-manual : Page 31

          2. INSPECTION/ADJUSTMENT                                                         K-PIPE 50

                                                      Upper Limit          Lower Limit
 ENGINE OIL
 When checking the oil level, place the
   motorcycle on its main stand on level
   ground for oil level check.


 After the engine is stopped for 10 minutes,
 check if the oil level is between the upper and
 lower limits.
 If the oil level is low, add the recommended
 oil to the proper level.
 Recommended Oil: SAE15W40#
                          API: SG
 After oil change, be sure to tighten the drain
 bolt securely.
 Check the drain bolt washer for damage.
 Oil Capacity: At disassembly : 1.0 liter
                  At change        : 0.9 liter




                                                                                 Drain Bolt



 DRIVE CHAIN                                                        Index Mark
 Check the drive chain slack.
 Specified Slack: 12cm
 Drive Chain Adjustment:
 1. Loosen the rear axle nut.
 2. Adjust the right and left adjusting nuts to
    align the right punch mark with the left
    punch mark.
 3. Turn the rear wheel to see if the drive
    chain slack is within the specified range.
 4. Tighten the rear axle nut.
  After drive chain adjustment, check the          Rear Axle                Adjusting Nut
      rear brake pedal free play and adjust if
      necessary.
