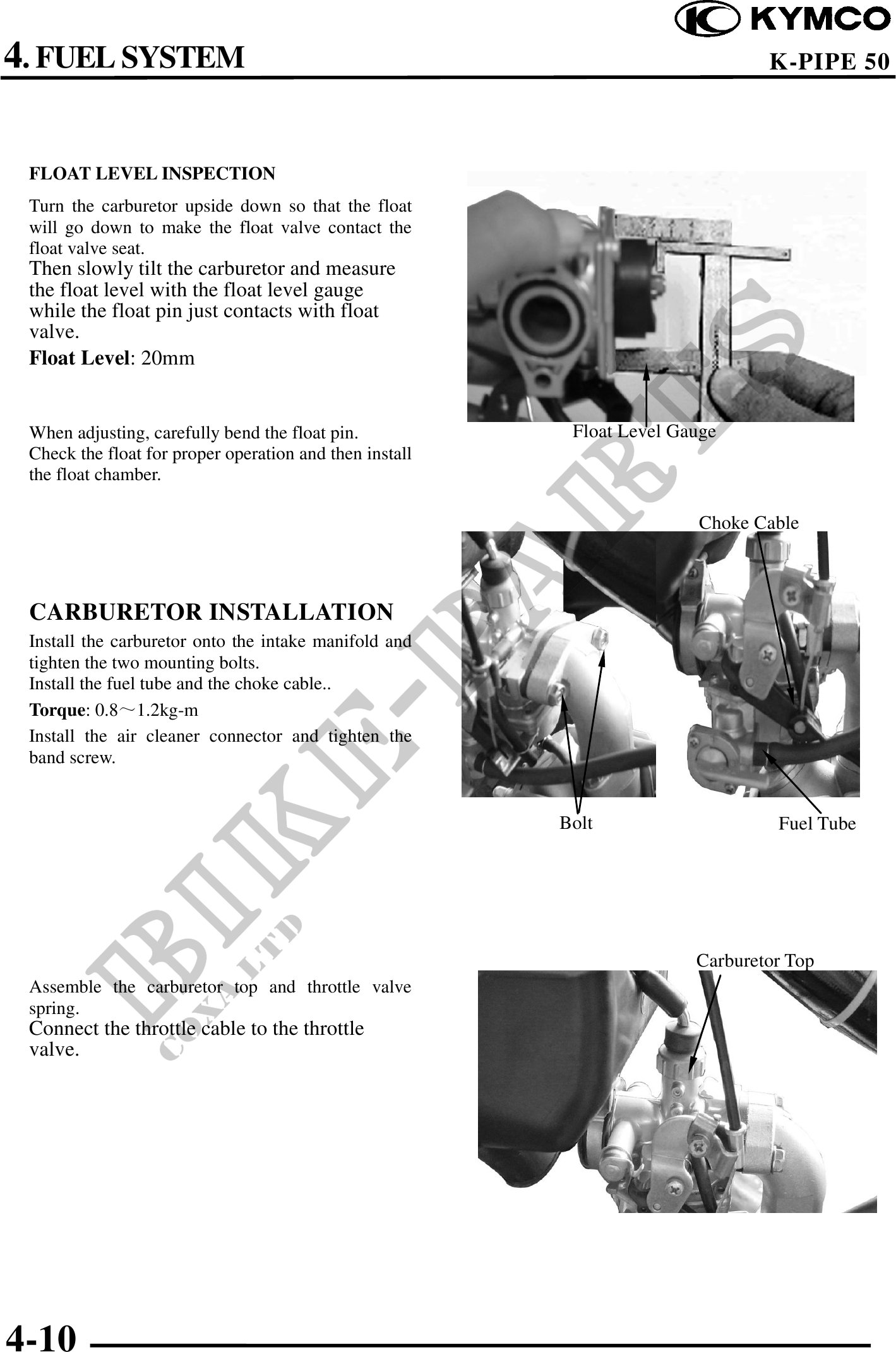

          4. FUEL SYSTEM                                                                  K-PIPE 50



 FLOAT LEVEL INSPECTION
 Turn the carburetor upside down so that the float
 will go down to make the float valve contact the
 float valve seat.
 Then slowly tilt the carburetor and measure
 the float level with the float level gauge
 while the float pin just contacts with float
 valve.
 Float Level: 20mm


 When adjusting, carefully bend the float pin.            Float Level Gauge
 Check the float for proper operation and then install
 the float chamber.

                                                                        Choke Cable



 CARBURETOR INSTALLATION
 Install the carburetor onto the intake manifold and
 tighten the two mounting bolts.
 Install the fuel tube and the choke cable..
 Torque: 0.81.2kg-m
 Install the air cleaner connector and tighten the
 band screw.


                                                         Bolt                    Fuel Tube




                                                                        Carburetor Top
 Assemble the carburetor top and throttle valve
 spring.
 Connect the throttle cable to the throttle
 valve.




4-10
