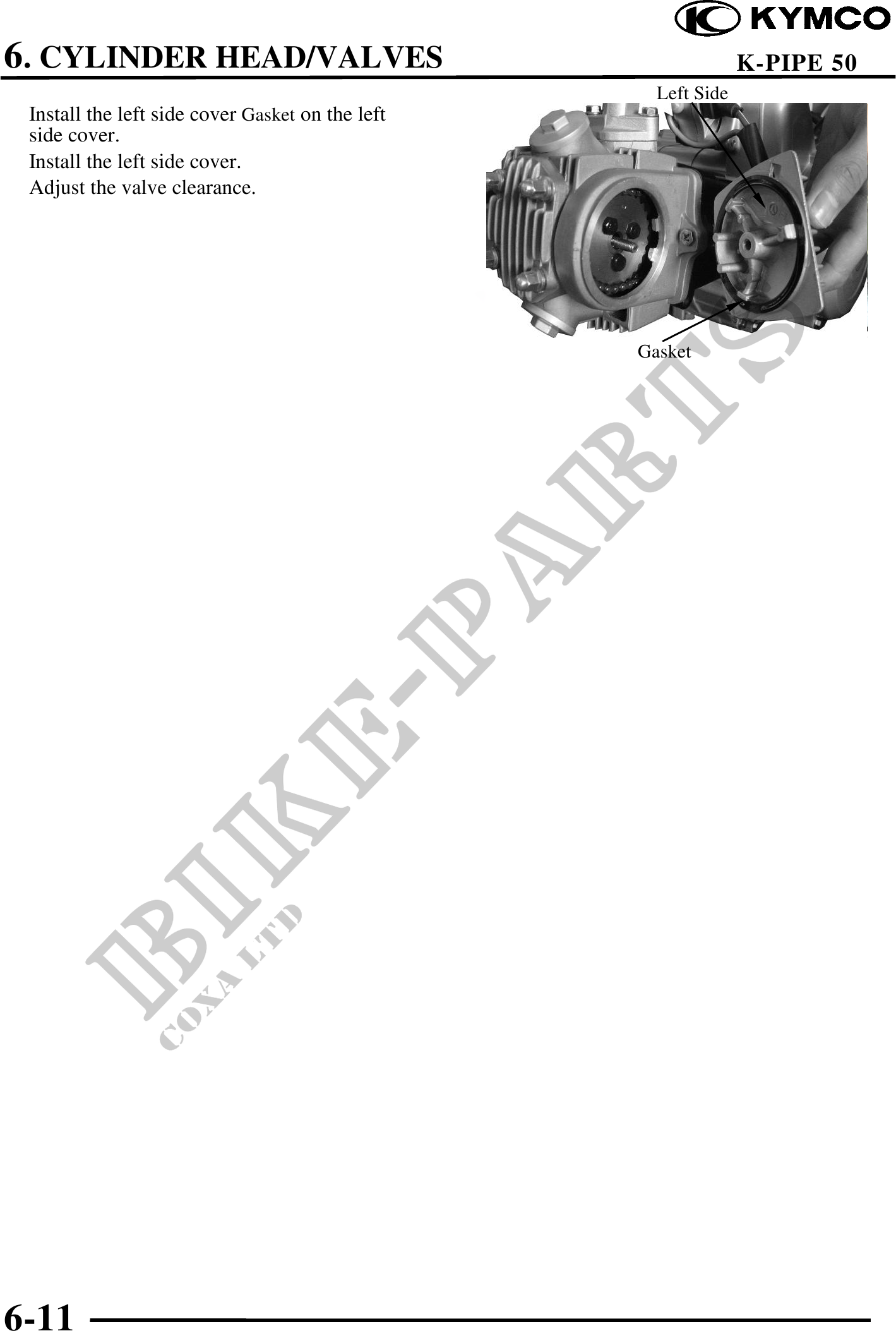

          6. CYLINDER HEAD/VALVES                                         K-PIPE 50
                                                    Left Side
 Install the left side cover Gasket on the left
 side cover.
 Install the left side cover.
 Adjust the valve clearance.




                                                  Gasket




6-11
