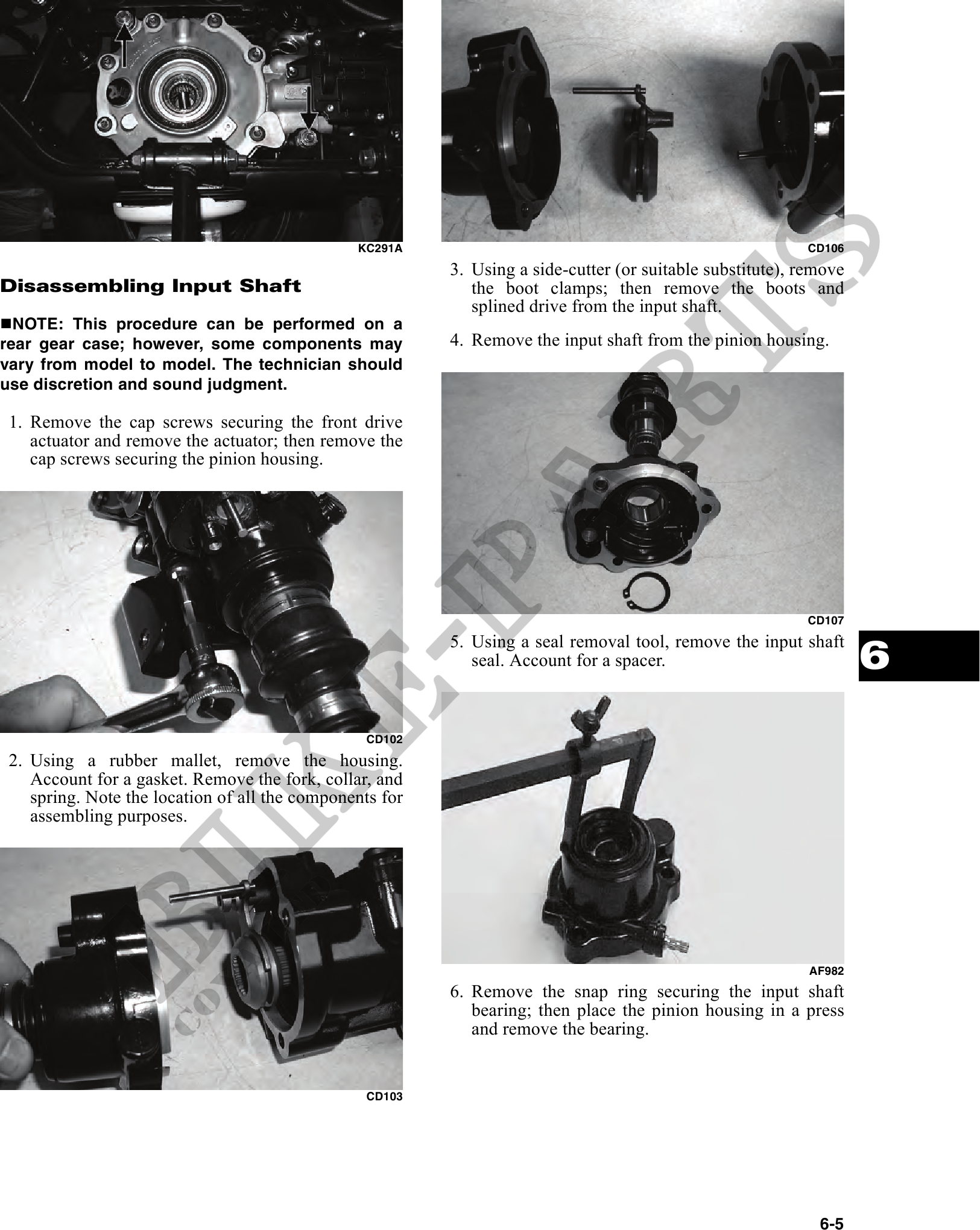

mxu 400 Workshop-manual : Page 109

                                                          KC291A                                                     CD106
                                                          3. Using a side-cutter (or suitable substitute), remove
Disassembling Input Shaft                                    the boot clamps; then remove the boots and
                                                             splined drive from the input shaft.
  NOTE: This procedure can be performed on a
rear gear case; however, some components may              4. Remove the input shaft from the pinion housing.
vary from model to model. The technician should
use discretion and sound judgment.

 1. Remove the cap screws securing the front drive
    actuator and remove the actuator; then remove the
    cap screws securing the pinion housing.




                                                                                                           CD107
                                                          5. Using a seal removal tool, remove the input shaft
                                                             seal. Account for a spacer.                            6
                                                 CD102
 2. Using a rubber mallet, remove the housing.
    Account for a gasket. Remove the fork, collar, and
    spring. Note the location of all the components for
    assembling purposes.




                                                                                                            AF982
                                                          6. Remove the snap ring securing the input shaft
                                                             bearing; then place the pinion housing in a press
                                                             and remove the bearing.


                                                 CD103




                                                                                                             6-5
