CC884 CC892

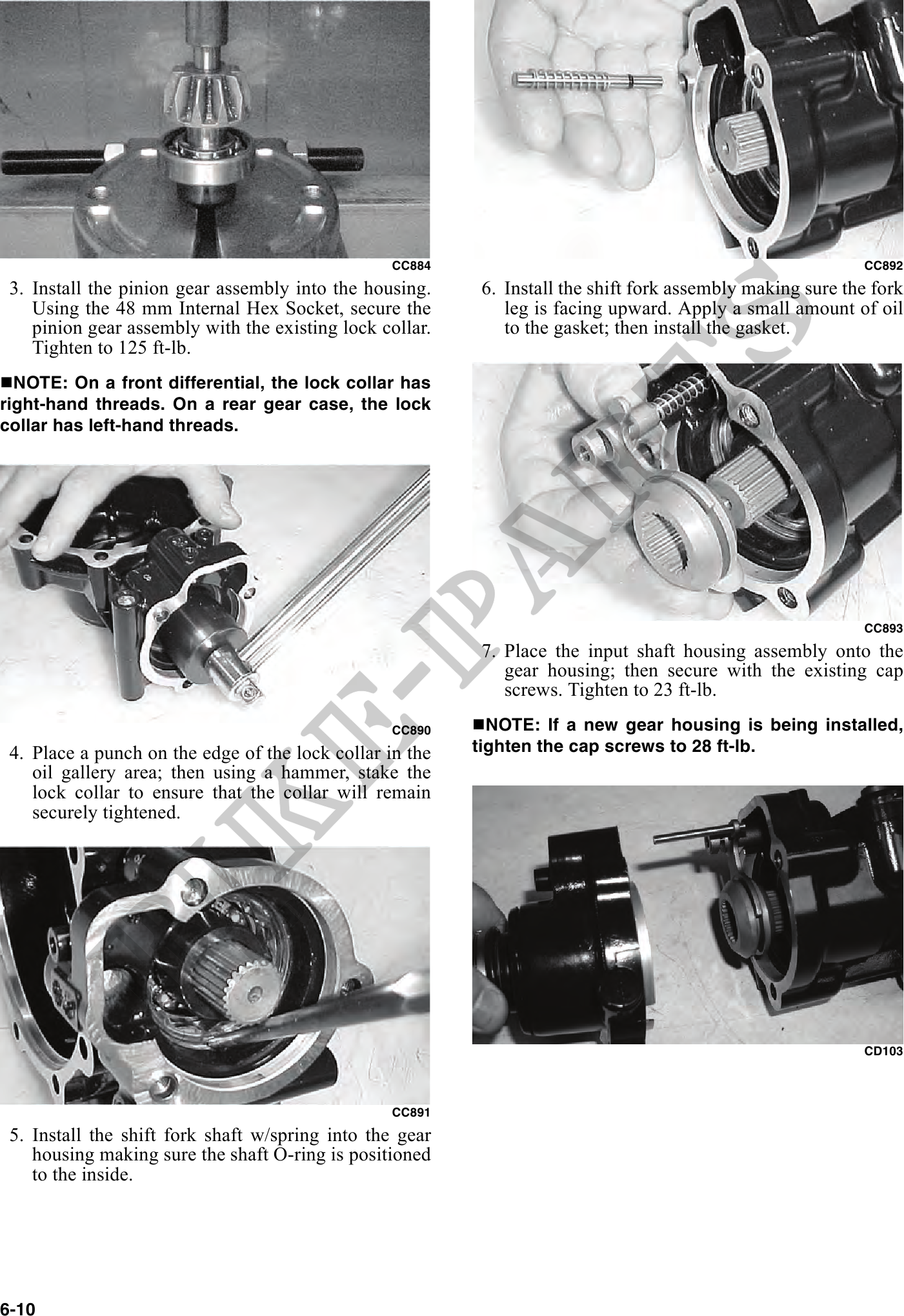

3. Install the pinion gear assembly into the housing. 6. Install the shift fork assembly making sure the fork
Using the 48 mm Internal Hex Socket, secure the leg is facing upward. Apply a small amount of oil
pinion gear assembly with the existing lock collar. to the gasket; then install the gasket.
Tighten to 125 ft-lb.
NOTE: On a front differential, the lock collar has
right-hand threads. On a rear gear case, the lock
collar has left-hand threads.
CC893
7. Place the input shaft housing assembly onto the
gear housing; then secure with the existing cap
screws. Tighten to 23 ft-lb.
CC890 NOTE: If a new gear housing is being installed,
4. Place a punch on the edge of the lock collar in the tighten the cap screws to 28 ft-lb.
oil gallery area; then using a hammer, stake the
lock collar to ensure that the collar will remain
securely tightened.
CD103
CC891
5. Install the shift fork shaft w/spring into the gear
housing making sure the shaft O-ring is positioned
to the inside.
6-10
