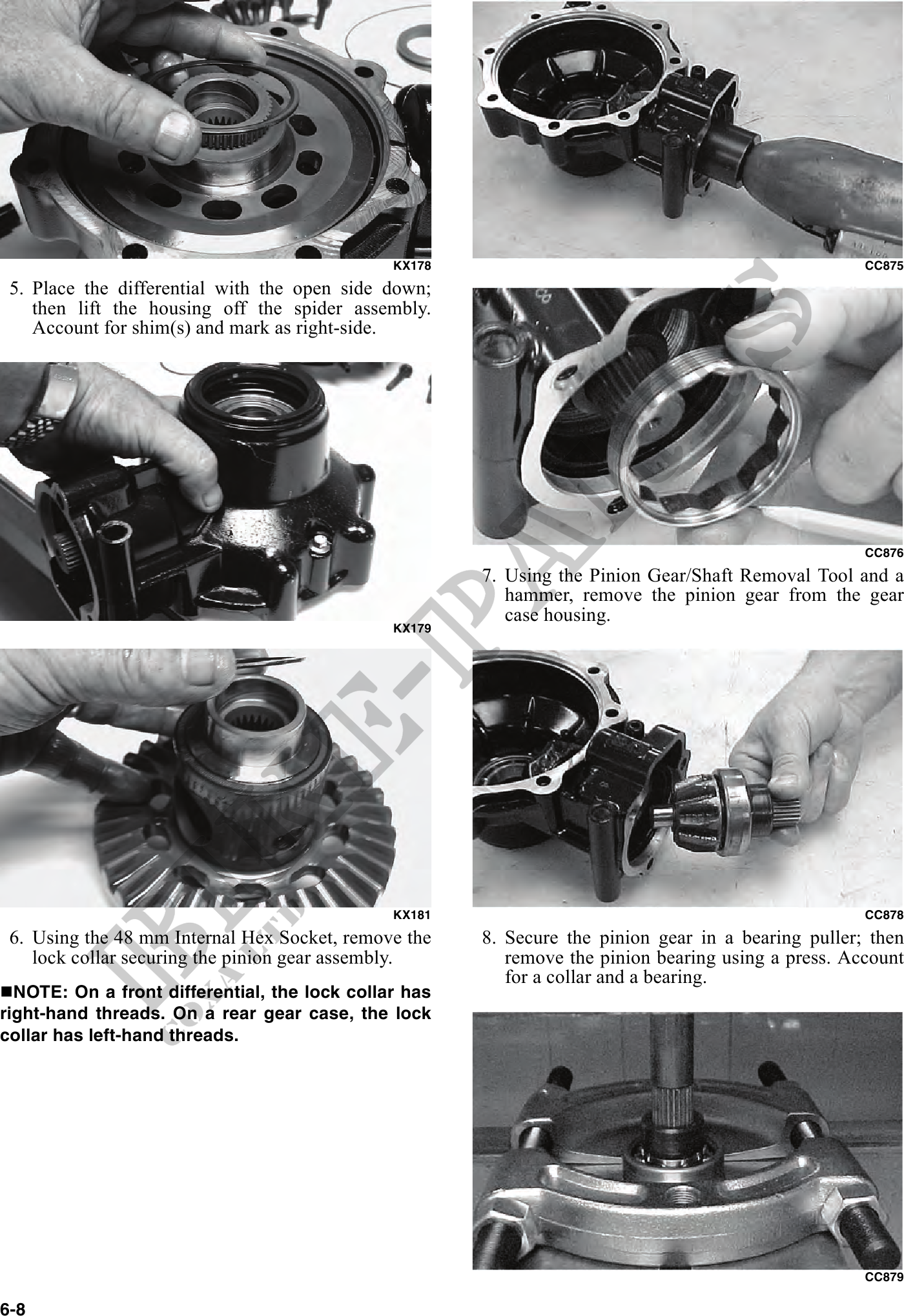

mxu 400 Workshop-manual : Page 112

                                                         KX178                                                 CC875
 5. Place the differential with the open side down;
    then lift the housing off the spider assembly.
    Account for shim(s) and mark as right-side.




                                                                                                     CC876
                                                       7. Using the Pinion Gear/Shaft Removal Tool and a
                                                          hammer, remove the pinion gear from the gear
                                                          case housing.
                                               KX179




                                               KX181                                                 CC878
 6. Using the 48 mm Internal Hex Socket, remove the    8. Secure the pinion gear in a bearing puller; then
    lock collar securing the pinion gear assembly.        remove the pinion bearing using a press. Account
                                                          for a collar and a bearing.
  NOTE: On a front differential, the lock collar has
right-hand threads. On a rear gear case, the lock
collar has left-hand threads.




                                                                                                     CC879

6-8
