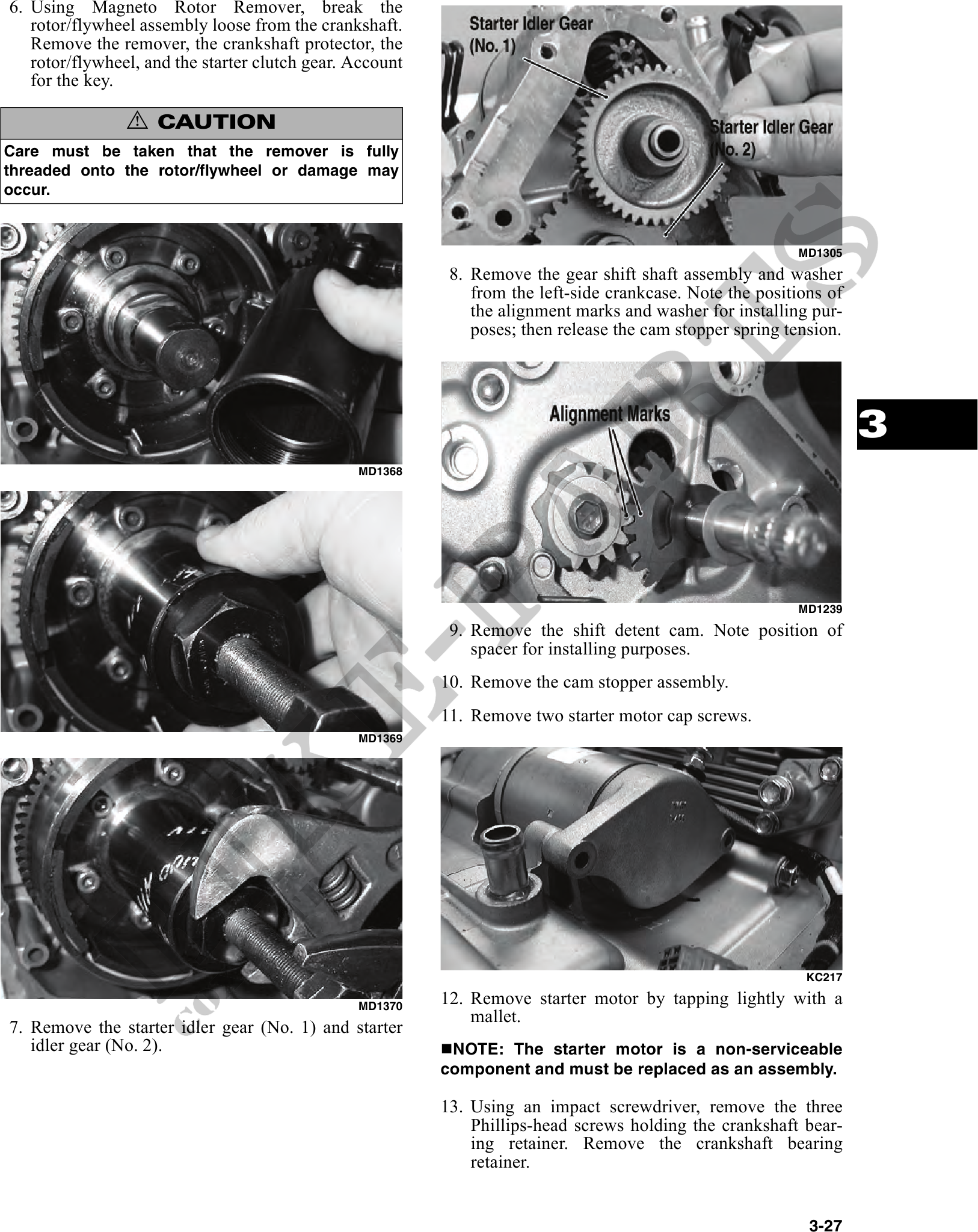

6. Using Magneto Rotor Remover, break the
rotor/flywheel assembly loose from the crankshaft.
Remove the remover, the crankshaft protector, the
rotor/flywheel, and the starter clutch gear. Account
for the key.
! CAUTION
Care must be taken that the remover is fully
threaded onto the rotor/flywheel or damage may
occur.
MD1305
8. Remove the gear shift shaft assembly and washer
from the left-side crankcase. Note the positions of
the alignment marks and washer for installing pur-
poses; then release the cam stopper spring tension.
3
MD1368
MD1239
9. Remove the shift detent cam. Note position of
spacer for installing purposes.
10. Remove the cam stopper assembly.
11. Remove two starter motor cap screws.
MD1369
KC217
MD1370
12. Remove starter motor by tapping lightly with a
mallet.
7. Remove the starter idler gear (No. 1) and starter
idler gear (No. 2). NOTE: The starter motor is a non-serviceable
component and must be replaced as an assembly.
13. Using an impact screwdriver, remove the three
Phillips-head screws holding the crankshaft bear-
ing retainer. Remove the crankshaft bearing
retainer.
3-27
