KC238 KC254

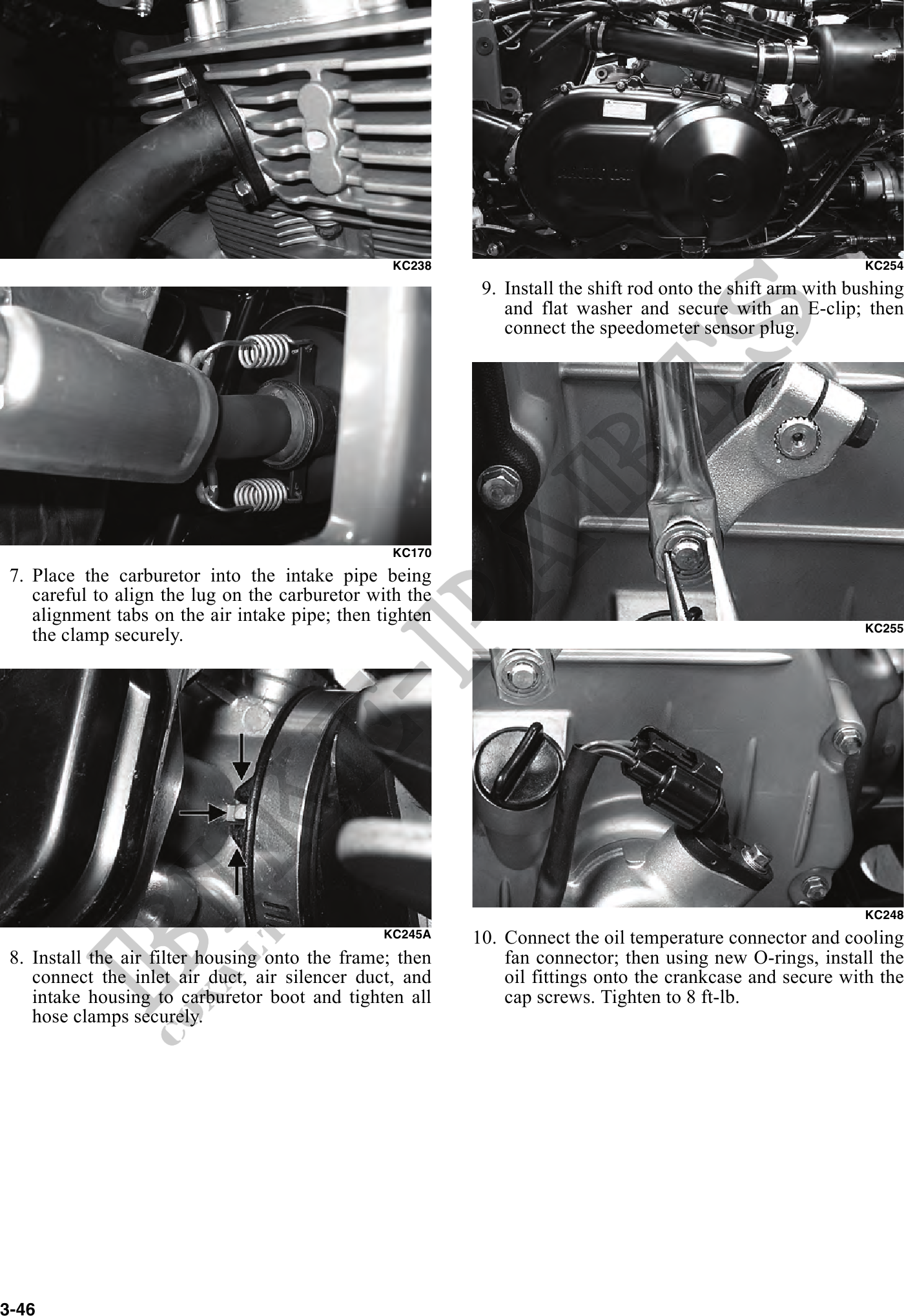

9. Install the shift rod onto the shift arm with bushing
and flat washer and secure with an E-clip; then
connect the speedometer sensor plug.
KC170
7. Place the carburetor into the intake pipe being
careful to align the lug on the carburetor with the
alignment tabs on the air intake pipe; then tighten
the clamp securely. KC255
KC248
KC245A 10. Connect the oil temperature connector and cooling
8. Install the air filter housing onto the frame; then fan connector; then using new O-rings, install the
connect the inlet air duct, air silencer duct, and oil fittings onto the crankcase and secure with the
intake housing to carburetor boot and tighten all cap screws. Tighten to 8 ft-lb.
hose clamps securely.
3-46
