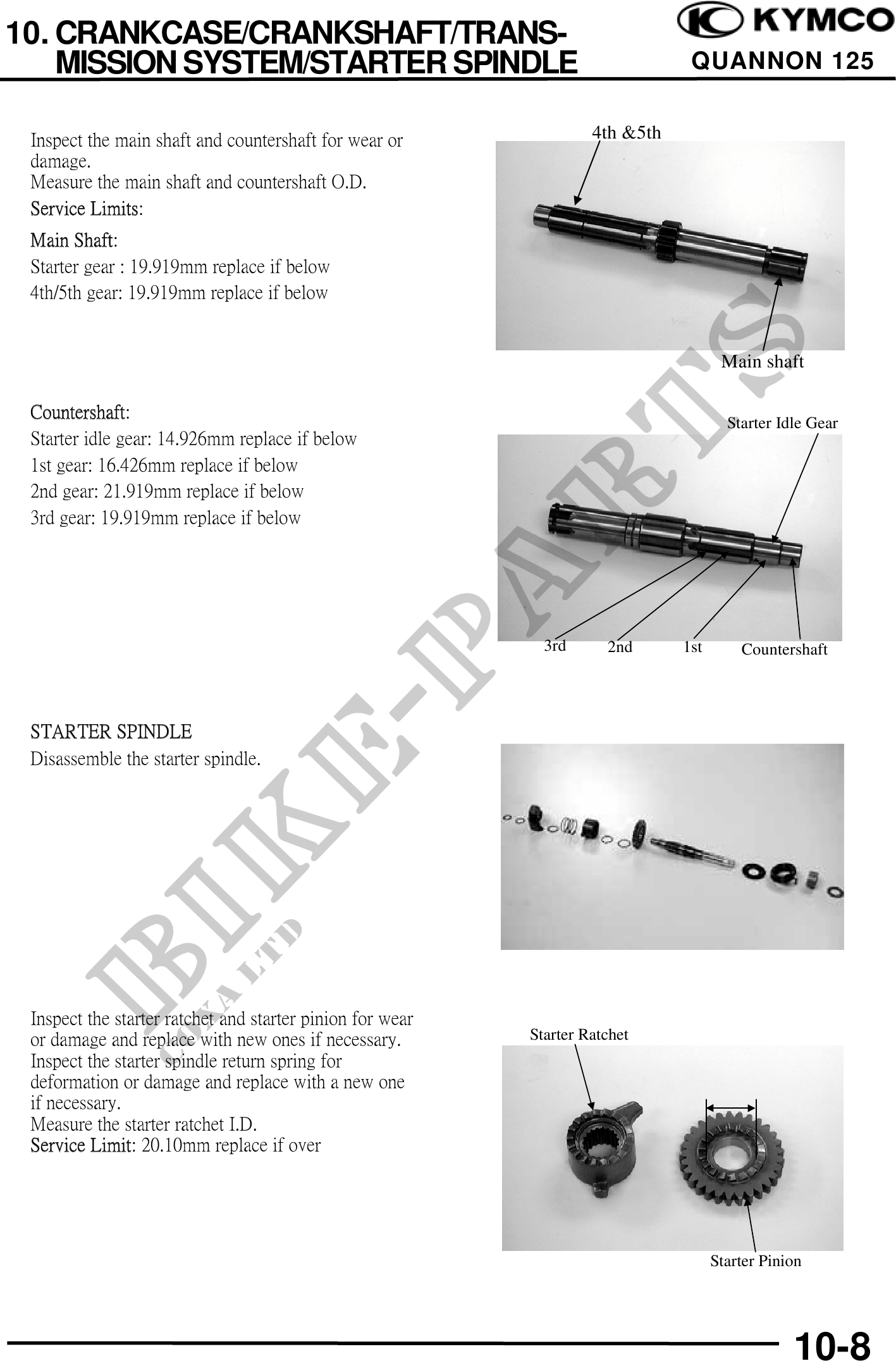

          10. CRANKCASE/CRANKSHAFT/TRANS-
    MISSION SYSTEM/STARTER SPINDLE                                              QUANNON 125


 Inspect the main shaft and countershaft for wear or                4th &5th
 damage.
 Measure the main shaft and countershaft O.D.
 Service Limits:
 Main Shaft:
 Starter gear : 19.919mm replace if below
 4th/5th gear: 19.919mm replace if below


                                                                                      Main shaft

 Countershaft:
                                                                                       Starter Idle Gear
 Starter idle gear: 14.926mm replace if below
 1st gear: 16.426mm replace if below
 2nd gear: 21.919mm replace if below
 3rd gear: 19.919mm replace if below




                                                             3rd      2nd      1st       Countershaft



 STARTER SPINDLE
 Disassemble the starter spindle.




 Inspect the starter ratchet and starter pinion for wear
 or damage and replace with new ones if necessary.         Starter Ratchet
 Inspect the starter spindle return spring for
 deformation or damage and replace with a new one
 if necessary.
 Measure the starter ratchet I.D.
 Service Limit: 20.10mm replace if over




                                                                                     Starter Pinion




                                                                                                 10-8
