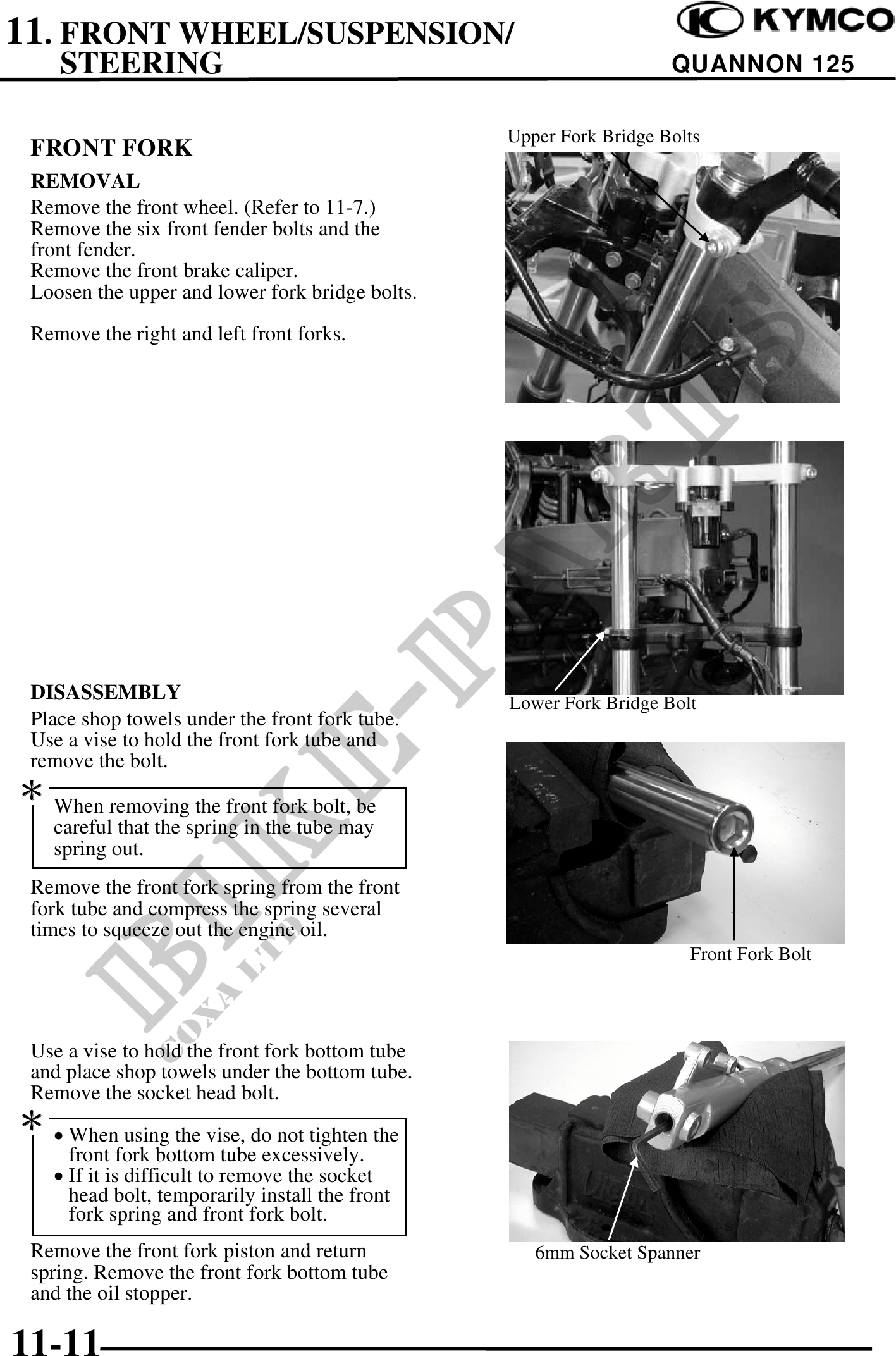

quannon 125 Workshop-manual : Page 117

          11. FRONT WHEEL/SUSPENSION/
    STEERING                                                        QUANNON 125

                                                 Upper Fork Bridge Bolts
 FRONT FORK
 REMOVAL
 Remove the front wheel. (Refer to 11-7.)
 Remove the six front fender bolts and the
 front fender.
 Remove the front brake caliper.
 Loosen the upper and lower fork bridge bolts.

 Remove the right and left front forks.




 DISASSEMBLY                                     Lower Fork Bridge Bolt
 Place shop towels under the front fork tube.
 Use a vise to hold the front fork tube and
 remove the bolt.
 When removing the front fork bolt, be
    careful that the spring in the tube may
    spring out.
 Remove the front fork spring from the front
 fork tube and compress the spring several
 times to squeeze out the engine oil.
                                                                      Front Fork Bolt




 Use a vise to hold the front fork bottom tube
 and place shop towels under the bottom tube.
 Remove the socket head bolt.
 · When using the vise, do not tighten the
      front fork bottom tube excessively.
    · If it is difficult to remove the socket
      head bolt, temporarily install the front
      fork spring and front fork bolt.
 Remove the front fork piston and return            6mm Socket Spanner
 spring. Remove the front fork bottom tube
 and the oil stopper.

11-11
