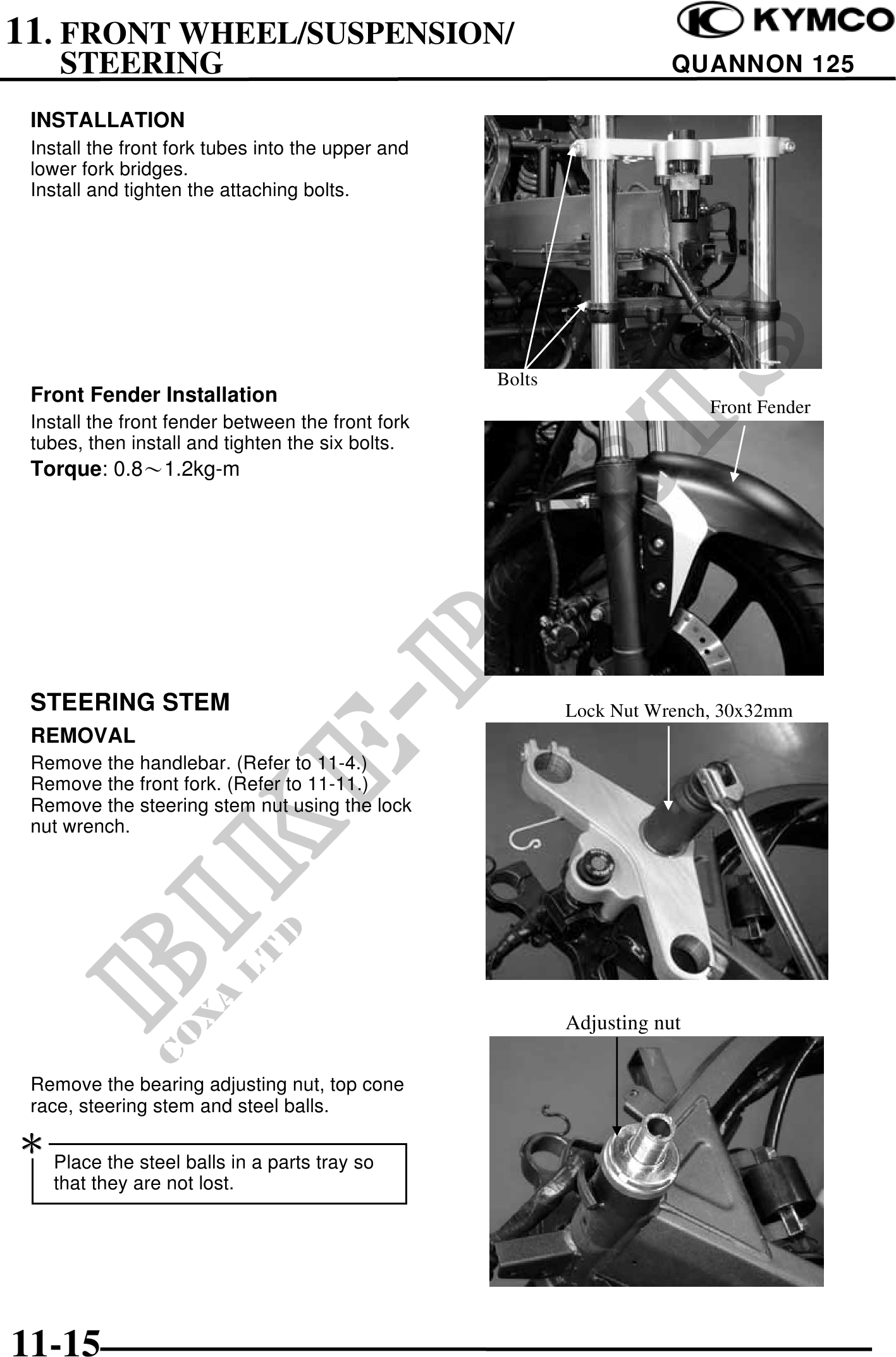

          11. FRONT WHEEL/SUSPENSION/
     STEERING                                                         QUANNON 125

 INSTALLATION
 Install the front fork tubes into the upper and
 lower fork bridges.
 Install and tighten the attaching bolts.




                                                   Bolts
 Front Fender Installation
                                                                           Front Fender
 Install the front fender between the front fork
 tubes, then install and tighten the six bolts.
 Torque: 0.81.2kg-m




 STEERING STEM                                             Lock Nut Wrench, 30x32mm
 REMOVAL
 Remove the handlebar. (Refer to 11-4.)
 Remove the front fork. (Refer to 11-11.)
 Remove the steering stem nut using the lock
 nut wrench.




                                                           Adjusting nut

 Remove the bearing adjusting nut, top cone
 race, steering stem and steel balls.

 Place the steel balls in a parts tray so
    that they are not lost.




11-15
