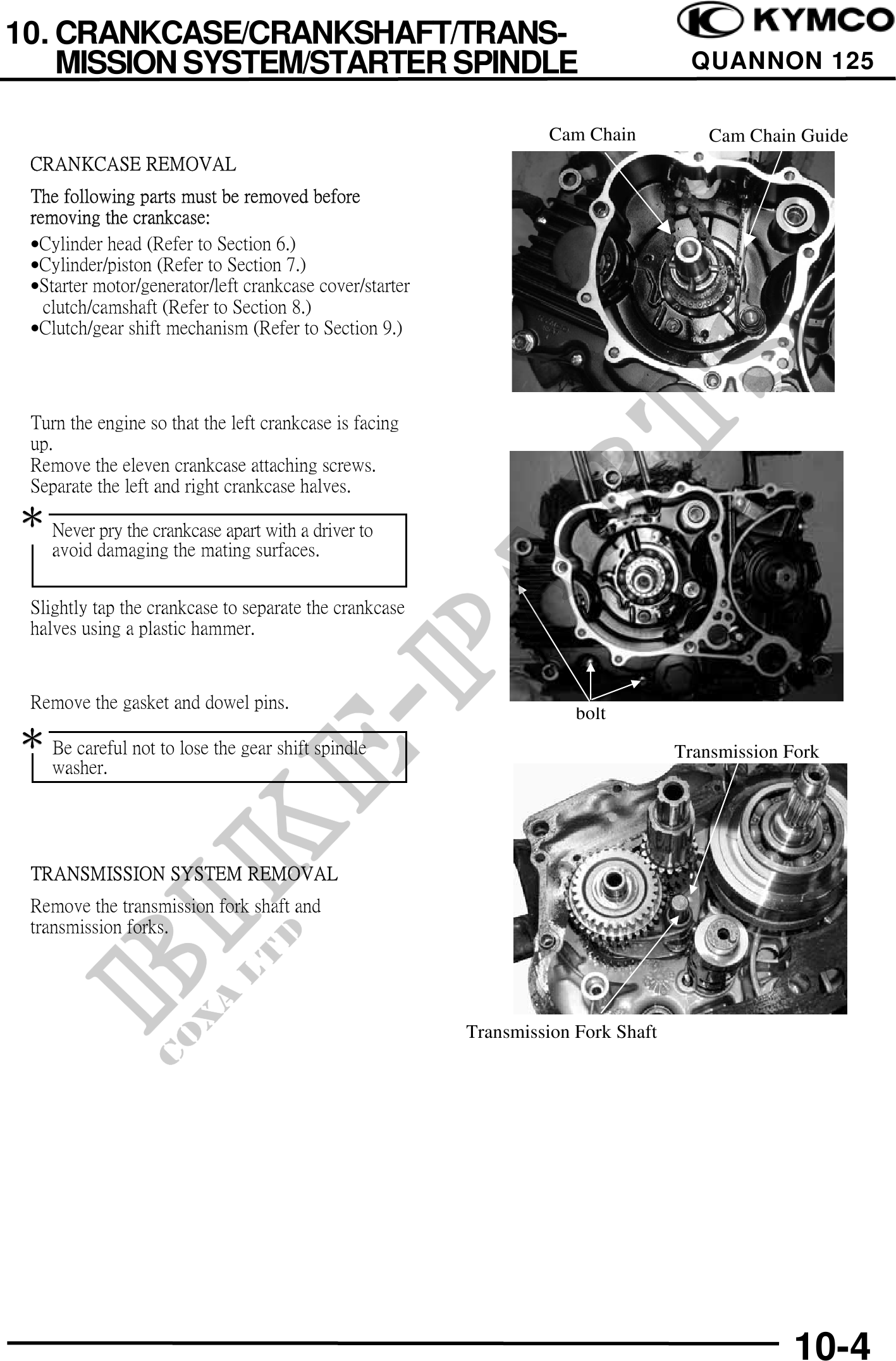

          10. CRANKCASE/CRANKSHAFT/TRANS-
    MISSION SYSTEM/STARTER SPINDLE                                                  QUANNON 125

                                                                  Cam Chain            Cam Chain Guide
 CRANKCASE REMOVAL
 The following parts must be removed before
 removing the crankcase:
 ·Cylinder head (Refer to Section 6.)
 ·Cylinder/piston (Refer to Section 7.)
 ·Starter motor/generator/left crankcase cover/starter
   clutch/camshaft (Refer to Section 8.)
 ·Clutch/gear shift mechanism (Refer to Section 9.)



 Turn the engine so that the left crankcase is facing
 up.
 Remove the eleven crankcase attaching screws.
 Separate the left and right crankcase halves.
 Never pry the crankcase apart with a driver to
    avoid damaging the mating surfaces.

 Slightly tap the crankcase to separate the crankcase
 halves using a plastic hammer.


 Remove the gasket and dowel pins.
                                                                      bolt
 Be careful not to lose the gear shift spindle                                     Transmission Fork
    washer.




 TRANSMISSION SYSTEM REMOVAL
 Remove the transmission fork shaft and
 transmission forks.




                                                         Transmission Fork Shaft




                                                                                                 10-4
