          10. CRANKCASE/CRANKSHAFT/KICK
    STARTER/TRANSMISSION                                                   K-PIPE 50

                                                     Bolts

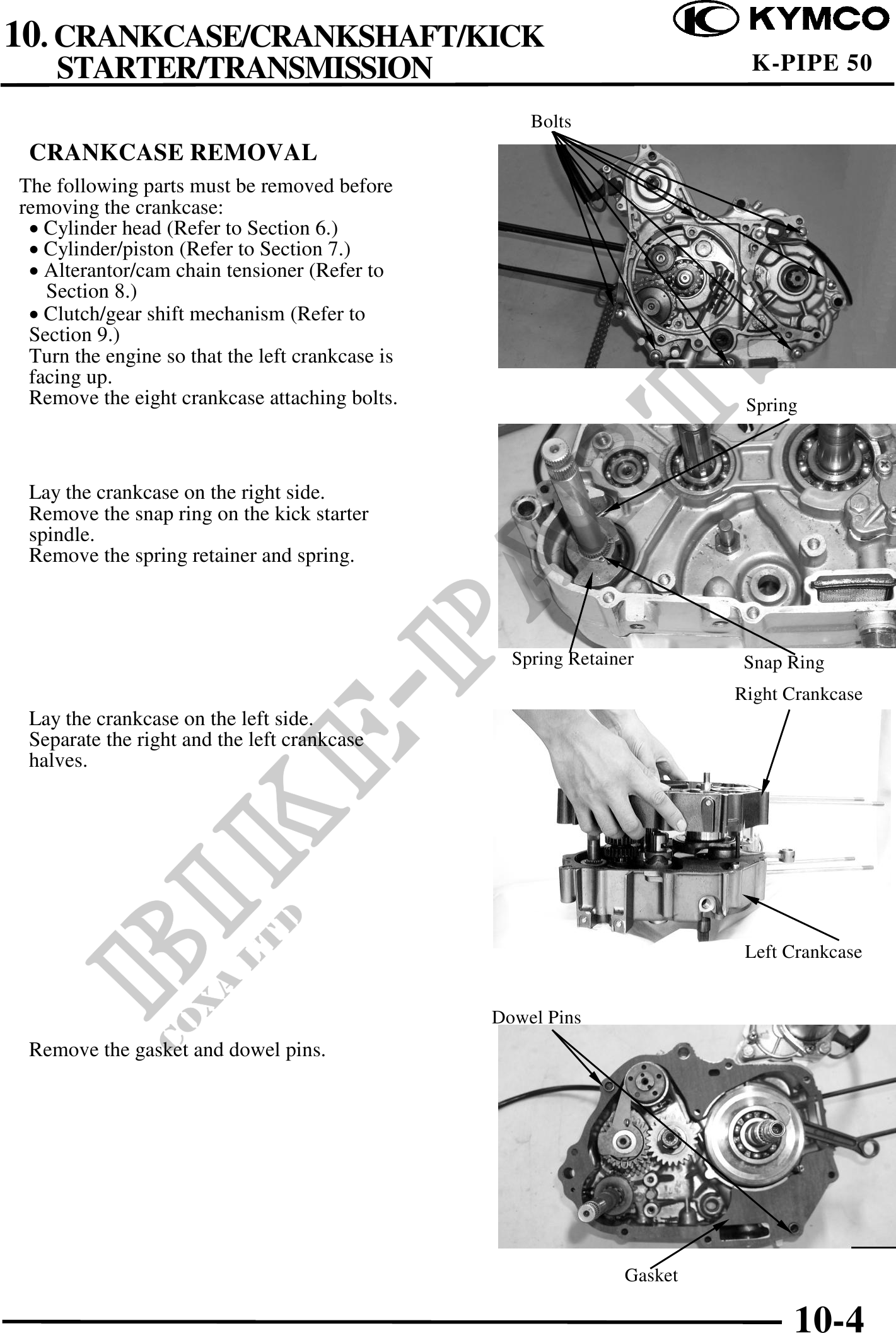

 CRANKCASE REMOVAL
The following parts must be removed before
removing the crankcase:
  Cylinder head (Refer to Section 6.)
  Cylinder/piston (Refer to Section 7.)
  Alterantor/cam chain tensioner (Refer to
   Section 8.)
  Clutch/gear shift mechanism (Refer to
 Section 9.)
 Turn the engine so that the left crankcase is
 facing up.
 Remove the eight crankcase attaching bolts.                              Spring



 Lay the crankcase on the right side.
 Remove the snap ring on the kick starter
 spindle.
 Remove the spring retainer and spring.



                                                   Spring Retainer        Snap Ring
                                                                         Right Crankcase
 Lay the crankcase on the left side.
 Separate the right and the left crankcase
 halves.




                                                                          Left Crankcase


                                                 Dowel Pins
 Remove the gasket and dowel pins.




                                                                Gasket

                                                                               10-4
