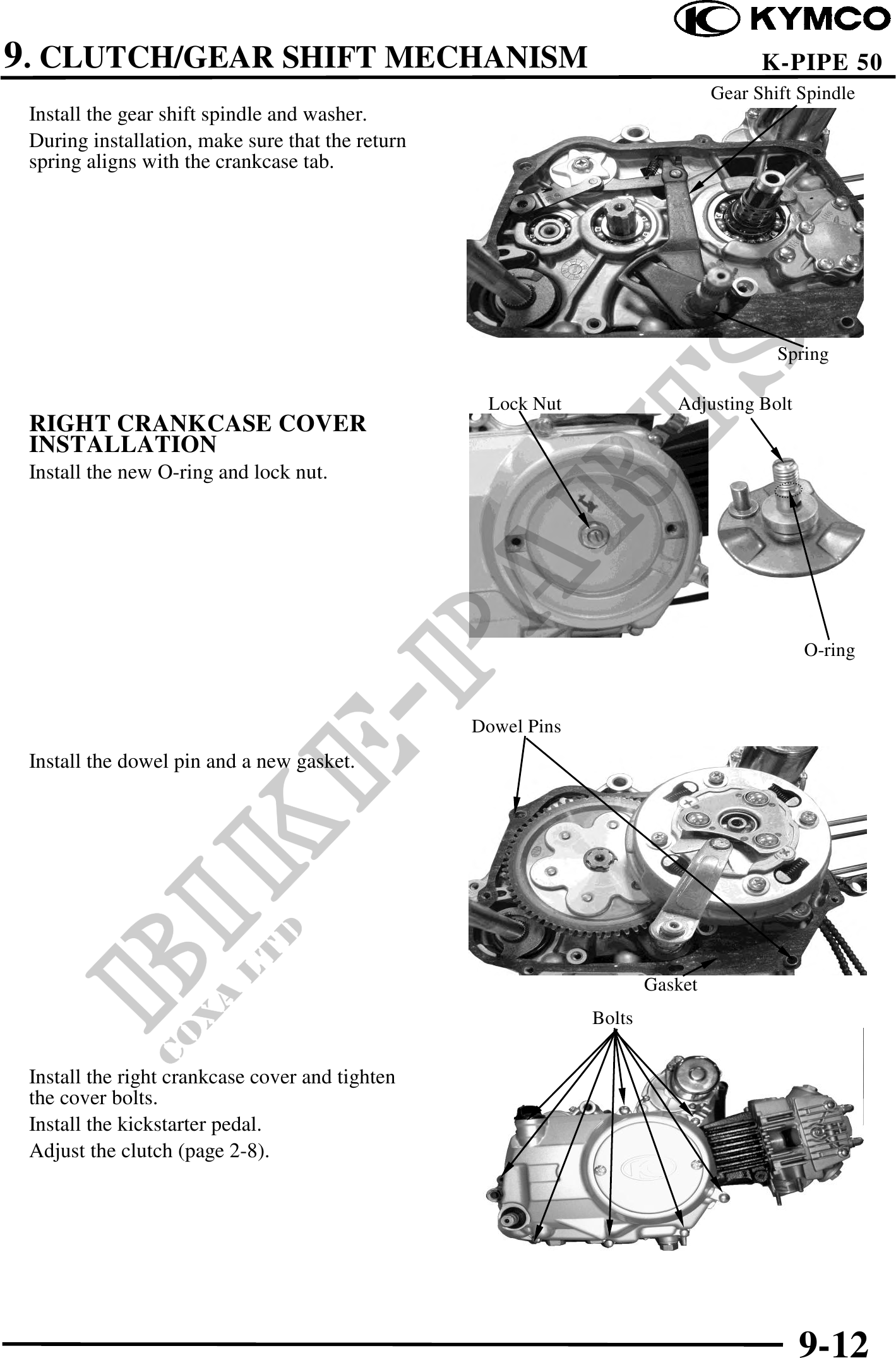

          9. CLUTCH/GEAR SHIFT MECHANISM                                                        K-PIPE 50
                                                                                Gear Shift Spindle
 Install the gear shift spindle and washer.
 During installation, make sure that the return
 spring aligns with the crankcase tab.




                                                                                        Spring

                                                   Lock Nut               Adjusting Bolt
 RIGHT CRANKCASE COVER
 INSTALLATION
 Install the new O-ring and lock nut.




                                                                                           O-ring


                                                  Dowel Pins
 Install the dowel pin and a new gasket.




                                                                       Gasket
                                                               Bolts


 Install the right crankcase cover and tighten
 the cover bolts.
 Install the kickstarter pedal.
 Adjust the clutch (page 2-8).




                                                                                           9-12
