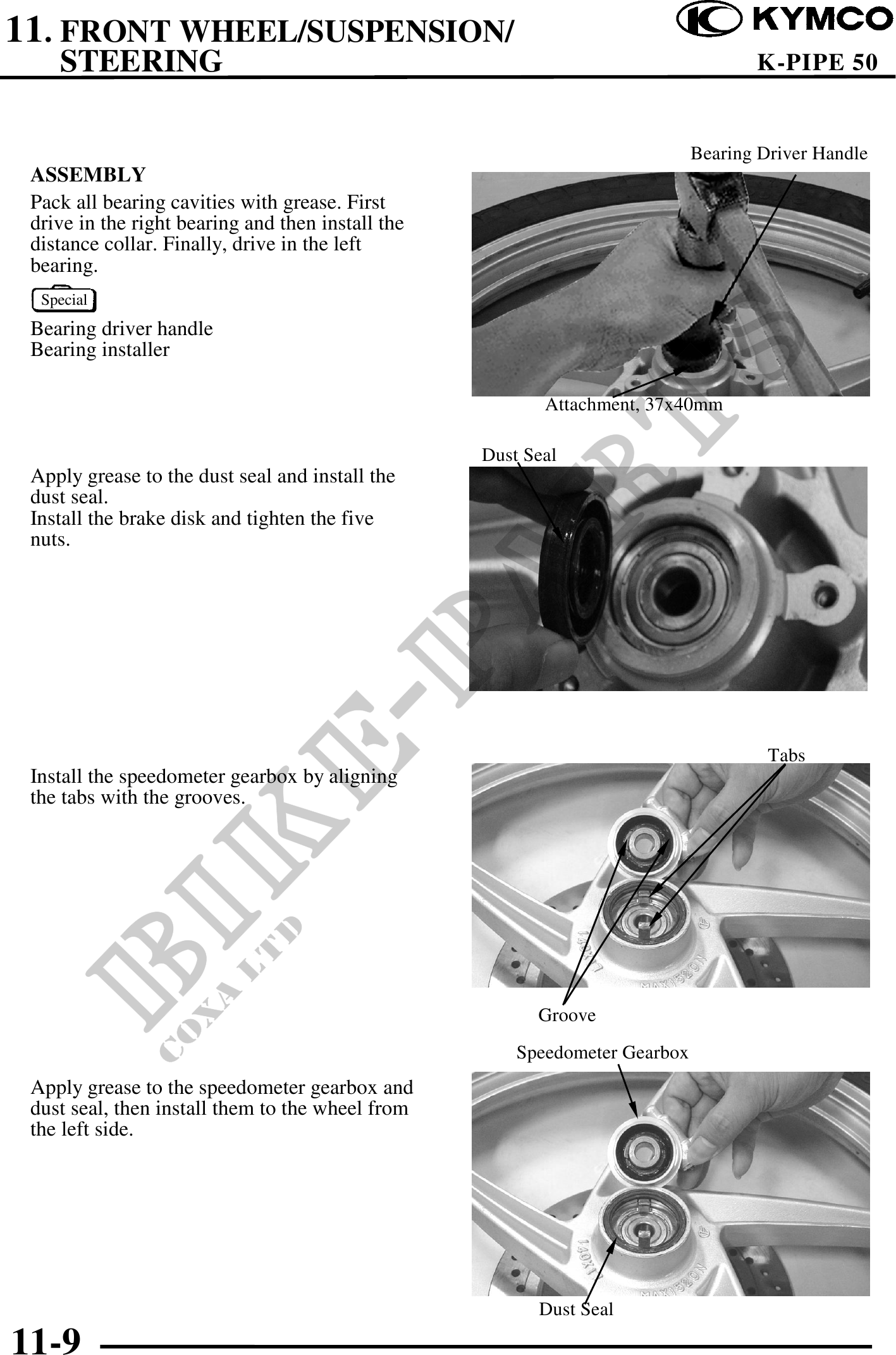

11. FRONT WHEEL/SUSPENSION/
STEERING K-PIPE 50
Bearing Driver Handle
ASSEMBLY
Pack all bearing cavities with grease. First
drive in the right bearing and then install the
distance collar. Finally, drive in the left
bearing.
Special
Bearing driver handle
Bearing installer
Attachment, 37x40mm
Dust Seal
Apply grease to the dust seal and install the
dust seal.
Install the brake disk and tighten the five
nuts.
Tabs
Install the speedometer gearbox by aligning
the tabs with the grooves.
Groove
s
Speedometer Gearbox
Apply grease to the speedometer gearbox and
dust seal, then install them to the wheel from
the left side.
Dust Seal
11-9
