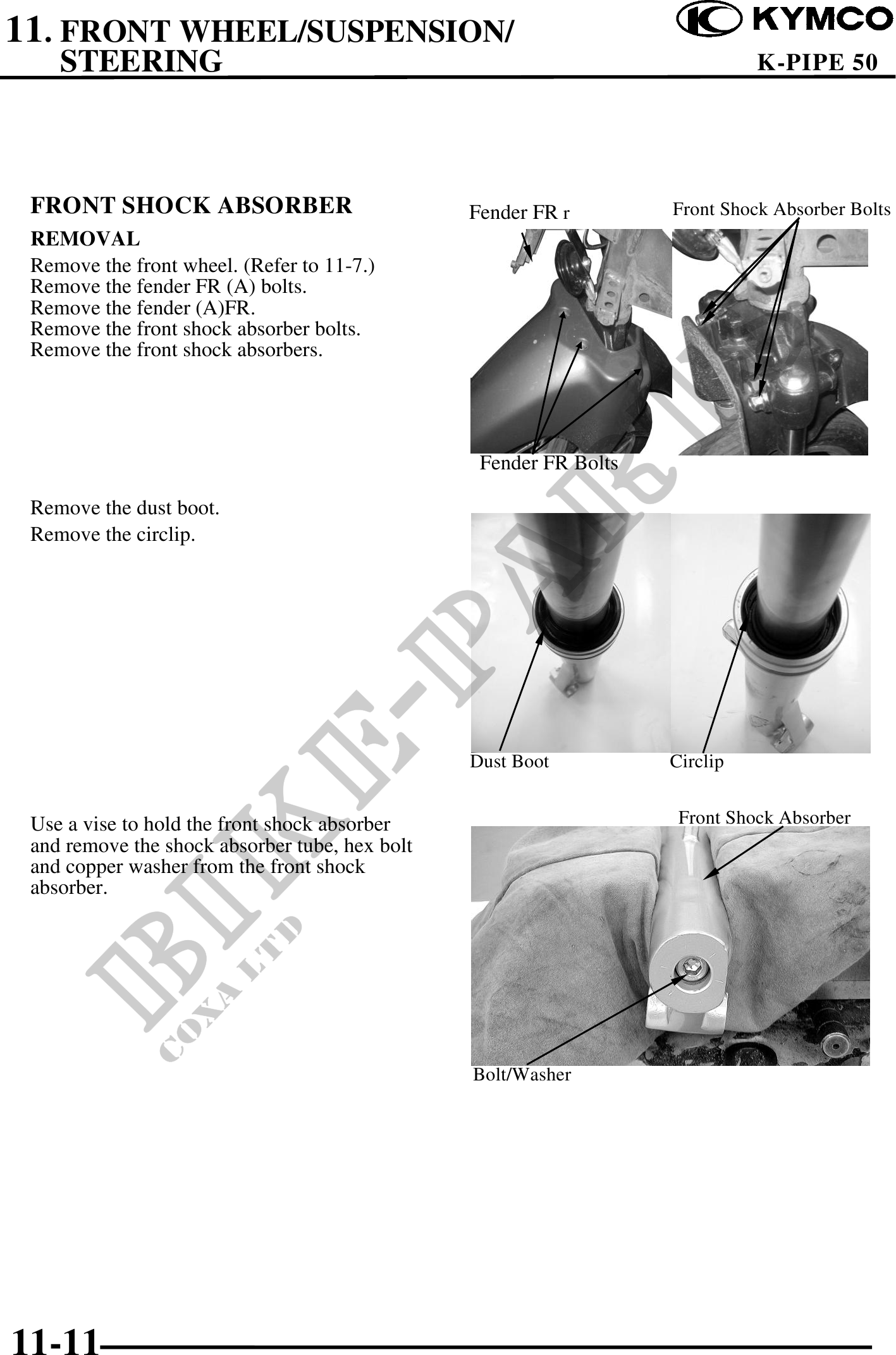

11. FRONT WHEEL/SUSPENSION/
STEERING K-PIPE 50
FRONT SHOCK ABSORBER Fender FR r Front Shock Absorber Bolts
REMOVAL
Remove the front wheel. (Refer to 11-7.)
Remove the fender FR (A) bolts.
Remove the fender (A)FR.
Remove the front shock absorber bolts.
Remove the front shock absorbers.
Fender FR Bolts
Remove the dust boot.
Remove the circlip.
Dust Boot Circlip
Use a vise to hold the front shock absorber Front Shock Absorber
and remove the shock absorber tube, hex bolt
and copper washer from the front shock
absorber.
Bolt/Washer
11-11
