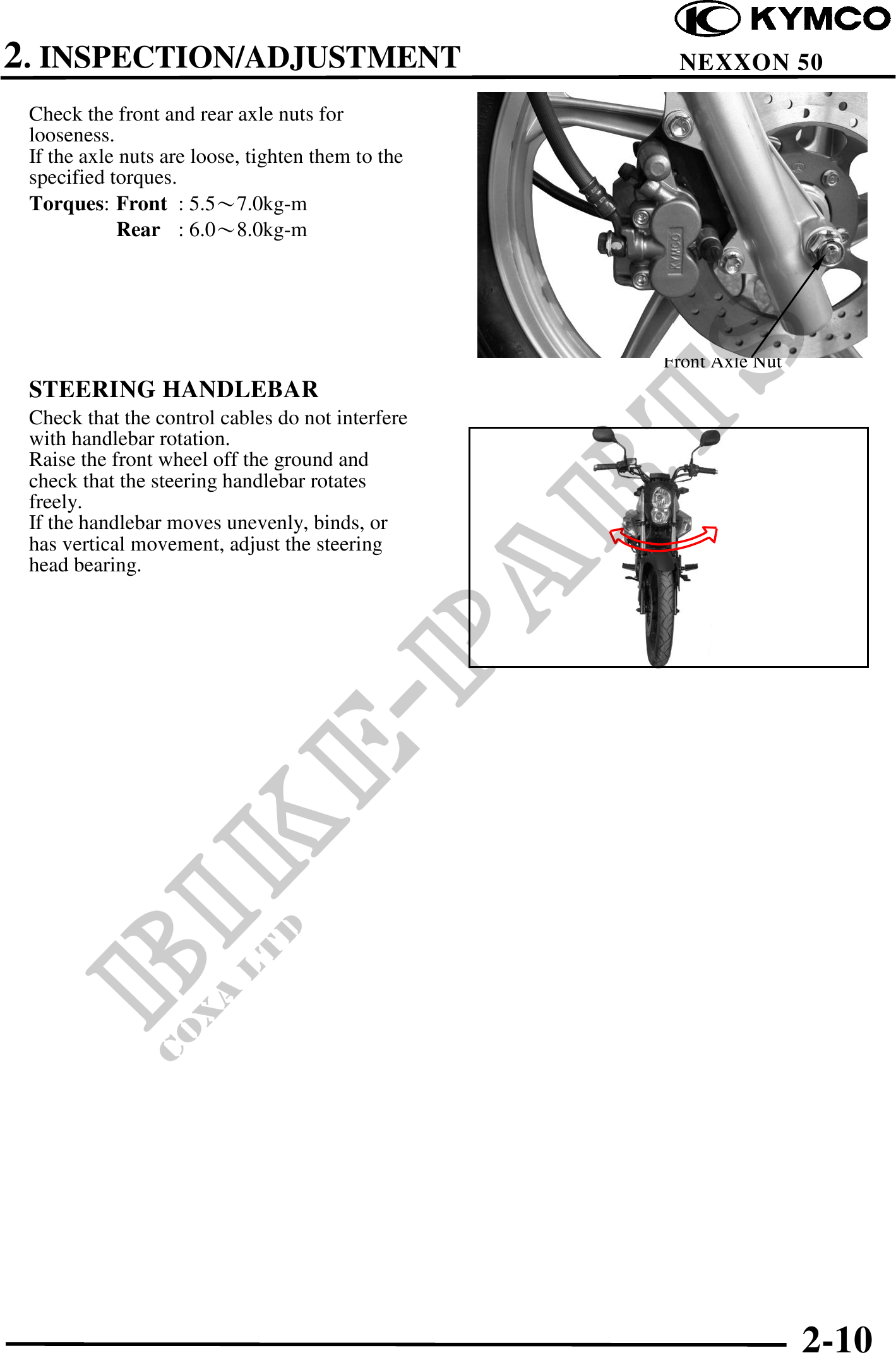

          2. INSPECTION/ADJUSTMENT                            NEXXON 50

 Check the front and rear axle nuts for
 looseness.
 If the axle nuts are loose, tighten them to the
 specified torques.
 Torques: Front : 5.57.0kg-m
            Rear : 6.08.0kg-m




                                                   Front Axle Nut
 STEERING HANDLEBAR
 Check that the control cables do not interfere
 with handlebar rotation.
 Raise the front wheel off the ground and
 check that the steering handlebar rotates
 freely.
 If the handlebar moves unevenly, binds, or
 has vertical movement, adjust the steering
 head bearing.




                                                                    2-10
